  • Product description: The mezzanine CPU-module COM Express mini, Type 10, 55x84 mm is designed for building of highly reliable embedded power-efficient systems with compact sizes. The module corresponds to the "PICMG COM.
  • INQUIRY

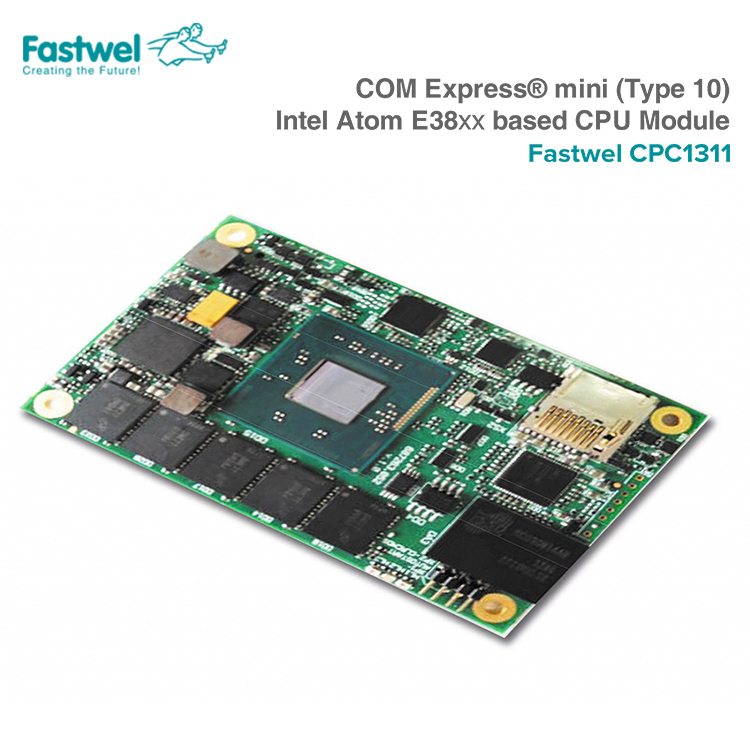

Fastwel CPC1311 COM Express® mini (Type 10) Intel Atom E38хх based CPU Module

•    CPU: Intel Atom: E3845: 1.91 GHz, 4x core, (CPC1311-01 version); E3825: 1.33 GHz, 2x cores, (CPC1311-02 version) E3827: 1.75 GHz, 2x cores, (CPC1311-03 version)
•    L1-Cache (32 KB of instructions, 24 KB of data); L2-Cache 1024 KB
•    RAM: DDR3L-1066/1333 SDRAM up to 4 GB with ECC support
•    SSD SATA Flash-drive: 4 GB (SLC NAND Flash)
•    Watchdog timer: 1.2 sec …10 sec
•    Operating temperature range: –40°C up to +85°C
•    Power supply: from COM-Express connector with extended range (from 4.75 V to 20 V)
•    Input is equipped with overvoltage protection and pulse interference protection
•    OS support: Linux 2.6; QNX 6.5; Microsoft Windows Embedded Standard 8; Microsoft Windows Embedded

Standard 7


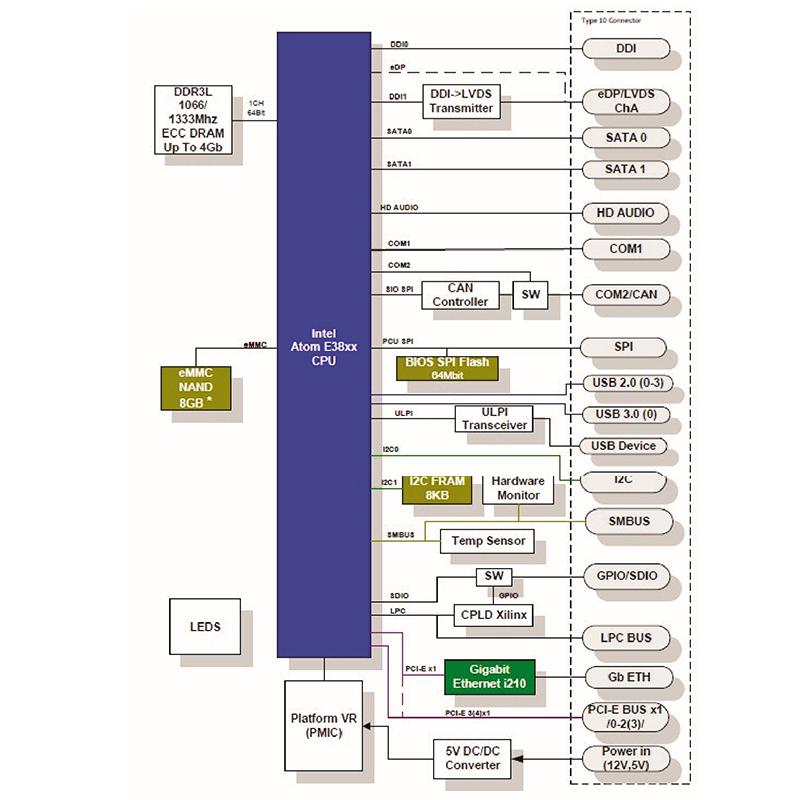

The mezzanine CPU-module COM Express mini, Type 10, 55x84 mm is designed for building of highly reliable embedded

power-efficient systems with compact sizes. The module corresponds to the "PICMG COM.0 COM Express Module Base

Specification Revision 2.1"

CPU

Intel Atom E3845: 1.91 GHz, 4x cores (CPC1311-01, CPC1311-03); Intel Atom E3825: 1.33 GHz, 2x cores (CPC1311-02, CPC1311-04)

Support of IA 64-bit/32-bit architecture

L1-Cache (32 KB of instructions, 24 KB of data)

L2-Cache 1024 KB

Support of Intel Streaming SIMD Extension 4.1 & 4.2 (SSE4.1 and SSE4.2)

Intel VT-x

Intel Digital Random Number Generator

Support of Intel SpeedStep Technology

Support of Deep Power Down Technology (C7)

Support of Intel Burst Technology

RAM

DDR3L-1066/1333 SDRAM up to 4 GB, with ECC support

64-bit data bus

FLASH BIOS

64 MB SPI-Flash

Modifiable within the system

eMMC Flash drive: 8 GB

(versions CPC1311-01, CPC1311-03)

FRAM 8 KB (I2C port) for storing configuration

COM-Express COM.0 connector, Type 10

3(4) ports PCIe x1 (PCIe Base Spec.

Rev 2.0), 5 GT/s

4хUSB 2.0 (host), 1хUSB 2.0 (client), 1хUSB 3.0 SuperSpeed (host)

2хSATA II (3-Gbps Gen.II)

1хGbit Ethernet

1хSPI (External Boot)

1х LVDS/eDP; Digital Display Interface; DDI0 2560x1600 @ 50 Hz

1х LPC (Specification Rev.1.1)

• Buses SMBus, I2C


HD Audio, Speaker Out

SDIO (combined with GPIO ports)

1хRS-232 (TTL, 64 Byte FIFO, up to 4 Mbps), 1хRS-232 (TTL, 64 Bytes FIFO, up to 1 Mbps)/ CAN 2.0 B (TTL, up to 1 Mbps)

RTC battery

Real-Time Clock

Monitor of seven power supply voltages on SMBUS

Watchdog timer (WDT)

1.2 sec … 10 min

Console I/O via serial ports (COM1/COM2)

MTBF

200 000 hours

Operating temperature range from –40°C up to +85°C

From - 40ºC to + 85ºC (CPC1311-01, CPC1311-02)

From 0ºC to + 70ºC (CPC1311-03, CPC1311-04) (temperature control on heat spreader) Power supply

From COM-Express connector with an extended temperature range (4.75 V … 20 V)

Power consumption

CPC1311-01, CPC1311-03 ~15 W

CPC1311-02, CPC1311-04 ~12 W

Weight

no more than 0.15 kg

Software compatibility

Linux 3.8.0

QNX 6.6

Microsoft Windows Embedded Standard 8

Microsoft Windows Embedded Standard 7



Configuration

Version

Temperature range

CPU

RAM

eMMC 8GB

CPC1311-01

- 40°C … + 85°

Intel Atom E3845 1.91 GHz, 4 cores

4 GB 1333DDR3L

+

CPC1311-02

0°C … +70°

CPC1311-03

- 40°C … + 85°

Intel Atom E3825 1.33 GHz, 2 cores

2 GB 1066 DDR3L

-

CPC1311-04

0°C … +70°







Options

\LNX — Preinstalled Linux 3.8.0 (for versions with soldered eMMC)

• \WIN7E – Preinstalled OS Windows Embedded Standard 7 (for versions with soldered eMMC) • \COATED – conformal coating option


Delivery Checklist:

CPC1311-xx Module ready-assembled with a heat-spreading plate and 5 mm racks (4 pcs.) • Installation kit:

1. set of racks with a height of 8 mm — 4 pieces

2. washers and screws for the racks (in order to fasten the module to the carrier-board) -4 pieces for each

3. jumper — 1 pcs

• Packaging


Additional accessories and cables:

ACS30075 heatsink

• ACS30075-01 heatsink with a fan
