Fastwel CPB907 Mezzanine CPU ModuleFastwel CPB907 Mezzanine CPU Module

Fastwel CPB907 Mezzanine CPU Module

  • Product description: Mezzanine CPU Module COM Express® mini, Type 10, 55 x 84 mm. Designed for building highly-reliable energy-efficient embedded systems with small dimensions.
  • INQUIRY

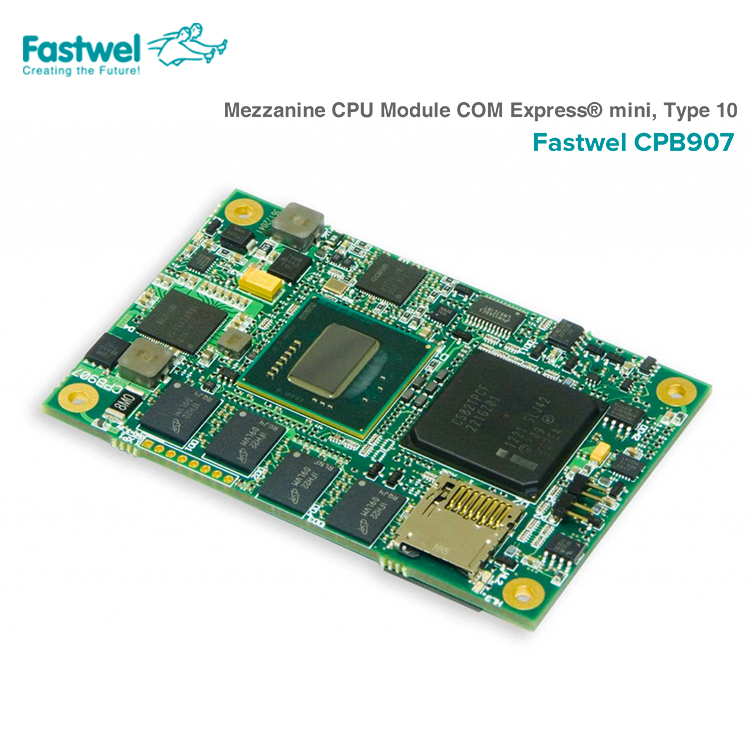

Fastwel CPB907 Mezzanine CPU Module COM Express® mini, Type 10

•    Intel Atom E6xxT™ 0.6 / 1.6 GHz CPU
•    DDR2-800 SDRAM, 512 / 1024 MB, soldered
•    Integrated graphics controller 400 MHz
•    4 GB NAND flash (SLC)
•    COM Express® Type 10 connector signals
•    OS compatibility: Microsoft™ MS-DOS®6.22, FreeDOS, Linux 2.6, QNX 6.5.x, Microsoft™ Windows® CE 6.0, Microsoft™ Windows® XP Embedded
•    Operating temp. range: -40°С … +85°С (IEC 68-2-14-84)
•    Shock / vibration stability: 50g / 5g (IEC 68-2-27-87; IEC 68-2-6-82)
•    MTBF: 200 000 hours


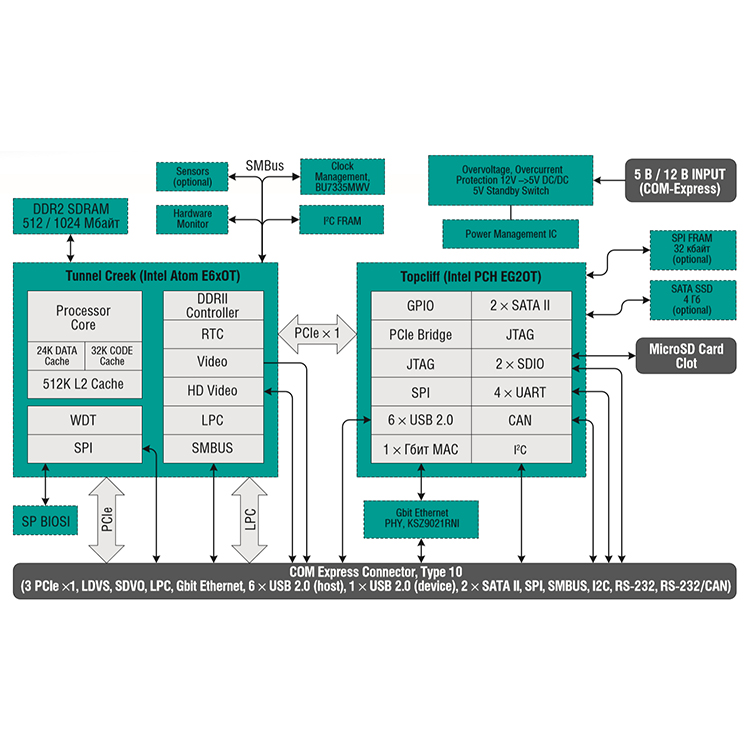

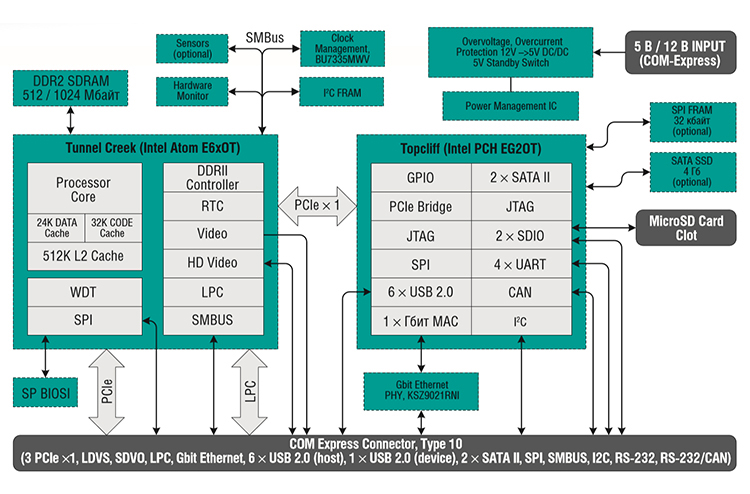

Mezzanine CPU Module COM Express® mini, Type 10, 55 x 84 mm. Designed for building highly-reliable energy-efficient embedded systems with small dimensions.
Conforms to "PICMG® COM.0 COM Express® Module Base Specification Revision 2.1".


CPU: Intel Atom E6xxT™

0.6 / 1.6 GHz

IA32 x86 core

32-bit memory bus

Cache level 1: 32 KB

Cache level 2: 512 KB

Hyper-Threading (2 Threads)

Intel SpeedStep

Deep Power Down support

SIMD Extension 2&3 (SSE2, SSE3, SSSE3)

Platform Controller Hub

Intel EG20T

System memory

DDR2-800 SDRAM, 512 / 1024 MB, soldered

Integrated graphics controller

400 MHz

2D / 3D accelerator

Hardware video decoding (H.264, MPEG2, MPEG4, VC1, WMV9)

Hardware video encoding (H.264, MPEG4, H.263)

Two independent displays

Video memory shared with system

Flash BIOS

2 MB, in-system modification

Reserved (on carrier board) Integrated non-volatile memory

32 KB FRAM (SPI) for user data (CPB907-01/02 only)

8 KB FRAM (I2C) for configuration storage

Batteryless operation: CMOS configuration parameters stored in FRAM (I2C) Flash-disk (CPB907-01 only)

SATA interface

4 GB NAND flash (SLC)

Read / write .

100 / 80 MB/s

Built-in wear control and ECC

MicroSD socket

SD, SDHC support, speed class 6

Capacity up to 32 GB Real time clock (battery power supply from the carrier board) Hardware monitor

CPU and module temperature monitor (–55…+125°С)

Main power voltages monitoring

External fan control Digital accelerometer (CPB907-01/02 only)

Measurement of acceleration along 3 axes

Resolution

8/14 bit (relative error is not rated)

Programmed measurement range: ±2g / ±4g / ±8g

Event definition: free fall, movement, shaking, change of space orientation

• Event interruptions generation.

COM ExpressR Type 10 connector signals

• 3 PCIe x1 (PCIe Spec.

Rev 1.0a), 2.5 Gb/s


• 6 USB 2.0 host ports

• 1 USB 2.0 client port

• 2 SATA II ports (1.5 Gbps Gen.

I & 3 Gbps Gen II) (1 port for CPB907-01)

• "LAN 0" port: Gbit Ethernet



• SPI port (External Boot)

• "LVDS Ch.

A" port: 18/24-bit, 1280×768 @ 60Hz


• DDI port: SDVO, 1920×1080 @ 50Hz

• LPC port (Spec.Rev.1.1)

• SMBus port (Spec.Rev.2.0)

• I2C port

• HD Audio port

• "Speaker Out" port

• SDIO port (shared with GPIO ports)

• RS-232 (CMOS 3.3V, 256 B FIFO, up to 4 Mbps)

• RS-232 (CMOS 3.3V, 64-byte FIFO, up to 1 Mbps) or CAN 2.0B Active (CMOS 3.3V, up to 1 Mbps) "RTC battery" port

Digital barometer (CPB907-01/02 only)


Pressure measurement from 50 to 115 kPa

Conversion time: 1 ms

Resolution: 0.15 kPa

Standard measurement accuracy ±1 kPa (at the temperature from –20…+85°С, calibration during microchip manufacturing, relative error is not rated)

Watchdog timer

Integrated in CPU – 1 µs… 10 min

OS compatibility

Microsoft™ MS-DOS® 6.22, FreeDOS

Linux 2.6

QNX 6.5.x

Microsoft™ Windows® CE 6.0

Microsoft™ Windows® XP Embedded

Microsoft™ Windows® 7 Embedded

Power voltage

+4.75…+20.0 V (operation)

+5 V ±5% (for standby mode only)

Short circuit and overvoltage protection (up to 25 V)

For module operation the main power supply voltage is sufficient Power consumption

9 W CPB907-01/-02 (operating mode, 12V @ 0.75A)

7.5 W for CPB907-03 (operating mode, 12V @ 0.62A)

W (standby mode, 5W @ 0.2A).

Operating temp.range

–40…+85°C Humidity:

5…95%, at +25°С, noncondensing

Shock / vibration stability

50g / 5g

MTBF

200 000 hours

Dimensions

Max 55.0 × 84.0 × 15.0 mm (without heat spreader / heatsink)

Overall Height with cooling system (excluding COM Express connector):

13.0 mm (heat spreader is installed, corresponds to COM Express v2.1)

15.0 mm (heatsink with fins is installed)

Weight

40 g max

Weight with cooling system

No more than 125 g (heat spreader is installed)

No more than 145 g (heatsink with fins is installed)


Configurations

CPB907-01-E1.6-RAM1024-SSD4G-I CPB907 (COM Express® mini, Type10), Intel E680T 1.6 GHz, 1 GB DDR2 SDRAM, 4 GB SSD, MicroSD socket, FRAM 32 KB, accelerometer, pressure sensor, without heatsink

CPB907-03-E0.6-RAM1024-I CPB907 (COM Express® mini, Type10), Intel E620T 600 MHz, 1024 MB DDR2 SDRAM, MicroSD socket, without heatsink

CPB907-01-E1.6-RAM1024-SSD4G-I\LNX\COATED CPB907 (COM Express® mini, Type10), Intel E680T 1.6 GHz, 1 GB DDR2 SDRAM, 4 GB SSD, MicroSD socket, FRAM 32 KB, accelerometer, pressure sensor, without heatsink, coated, ОС Linux

Options

\COATED Protective coating

\LNX Linux 2.6

\WXPE Windows XP Embedded

Delivery Checklist:

1. CPB907 CPU module

2. Heat spreader or heatsink with fins (depending on the version)

3. Mounting kit for fixing of COM Express mini module on carrier board

4. Package

Additional accessories and cables:

KIB1283-02 COM Express mini developer’s carrier board

ACS30067 Additional heatsink with mounting kit for COM Express mini modules (installed in the heat spreader)
