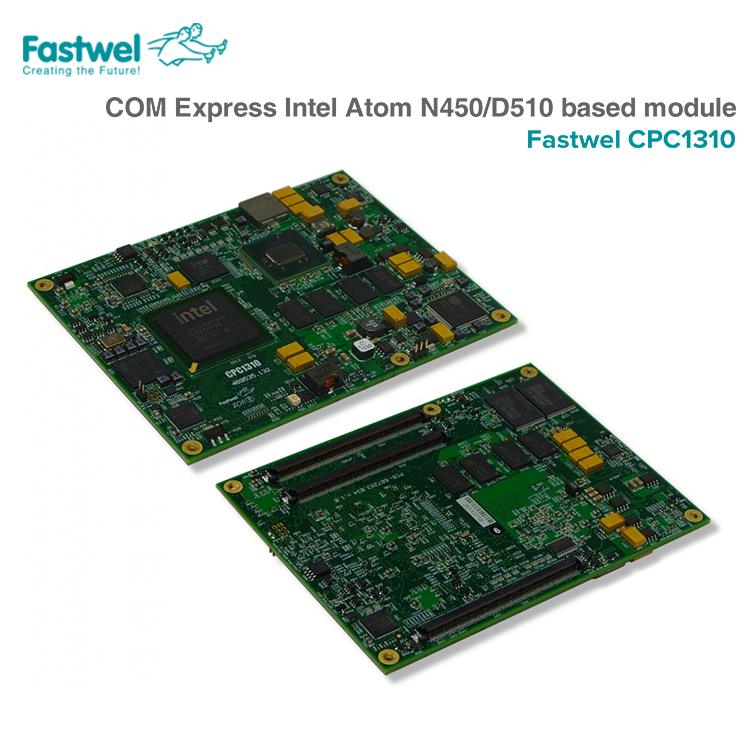

Fastwel CPC1310 COM Express Intel Atom N450/D510 Based Module

•    COM Express Basic
•    Intel Atom N450 Single Core/ D510 Dual Core, 1.66 GHz, 512 KB cache/1 MB cache;
•    512 MB / 1 GB DDR2 SDRAM 667 MHz w/o ECC, 64-bit addressing, soldered
•    2 GB NAND Flash (dual channel)
•    SATA interface (50 MB/s read, 35 MB/s write)
•    Two Gigabit Ethernet channels, 10/100/1000 Mb/s
•    Eight USB 2.0
•    Shock/vibration: 50g / 5g (IEC 68-2-27-87; IEC 68-2-6-82)
•    Operating temperature range: –40°C to +85°C (IEC 68-2-14-84)
•    MS DOS 6.22, FreeDOS, Windows XP (Embedded), Linux 2.6, QNX 6.5.


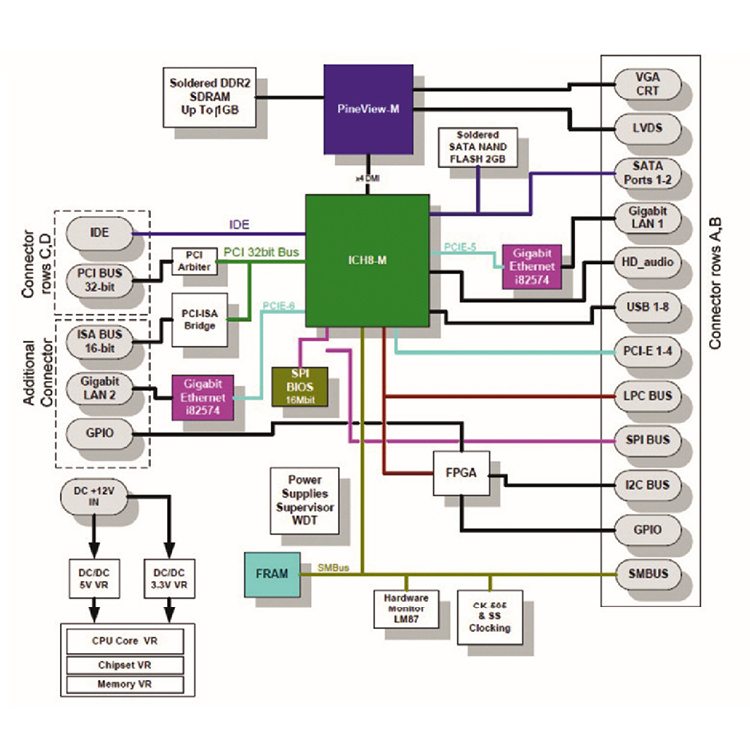

CPC1310 complements the line of Fastwel Computer-on-Modules. It is designed to be a computing core of special-purpose

embedded systems. The module corresponds to PICMG COM Express rev 2.0 specification, has a Basic format (95x125 mm)

and Type-II pinout. The CPU card is based on Intel Pineview-M Single Core (N450)/Pineview-D Dual Core (D510) processor

family and Intel ICH8M chipset. The distinctive feature of the board is the extra-connector option, which brings out ISA,

Ethernet and GPIO. CPC1310 board is designed to operate in extended temperature range from –40 to +85°C. Coating

option (available for every module configuration) allows to increase resistance to aggressive environment. Windows

XP Embedded, Linux and QNX are among the supported operating systems.

COM Express Basic rev.2.0 (TYPE 2) Processors

Intel Pineview-M Single Core (N450), 1.66 GHz, 512 KB cache

Intel Pineview-D Dual Core (D510), 1.66 GHz, 1 MB cache

Chipset

Intel ICH8M

System memory

512 MB / 1 GB DDR2 SDRAM 667 MHz w/o ECC, 64-bit addressing, soldered

Integrated video controller

2D/3D - accelerator

VGA output (up to 1400×1050 60 Hz (N450) and 2048×1536 60 Hz (D510))

LVDS Interface (up to 1280×800 60 Hz (N450) and 1366×768 60 Hz (D510), 18 bit single channel mode)

FLASH BIOS

Possibility of system modification

FLASH-disk

2 GB NAND Flash (dual channel), connected to SATA interface: (50 Mb/sec.

read, 35 Mb/sec.

write)

2 Ethernet channels, 10/100/1000 Mb/sec

First channel – according to the COM Express specification

Second channel – is routed to an additional connector

Eight USB 2.0 interfaces SATA II Interface

2 channels

Transmission rate up to 300 Mb/sec

LPC Interface (support of SUPER I/O SMSC SCH3114 chip interfaces)

PS/2 keyboard and mouse Interface

LPT Interface

FDD Interface

4 UART interfaces (COM1-COM4)

PCI Express x1 Interface

4 channels 32 bit,

33 MHz PCI Interface (3.3 V)

32 bit / 33 MHz

Support for up to 4 bus master devices

ISA Interface (additional slot)

16 bit / 8 MHz

DDMA, ISA IRQ support

HD Audio Controller Discrete Input-Output

8 I/O pin counts, individually

Programmable, according to the COM Express specification

8 additional pin counts at an additional connector (3.3 V, 8 mÀ)

Real time clock (RTC)

CR 2032 lithium battery (3 V) power supply

Possibility of functioning without battery

FRAM Memory

When functioning without battery the CMOS settings are stored in FRAM Memory

2 Watch dog timers

First – with a fixed response interval

Second – with an adjustable response interval

Power supply and Input current

Module extended power supply range (+5 V…+12 V)

Current consumption is not more than 3 À at power supply +5 V (D510)

Possibility of operation in ÀÒÕ mode as well as in a normal mode (no necessity in outer power source control)

Humidity

Up to 80%, noncondencing

Multiple shock/vibration stability

50g/5g.

Operating temperature range

From –40°C to +85°C

MTBF

Min 100 000 hours

Dimensions

125 × 95 × 23,5 mm

Protection

Protective coating is available

OS compatibility

MS DOS 6.22, FreeDOS

Windows XP (Embedded)

Linux 2.6

QNX 6.5



Configurations

CPC1310-1 Intel Atom Pineview-D (D510) CPU COM Express basic TYPE II, 1 GB DDR-2 RAM, 4 GB NAND

CPC1310-1\coated Intel Atom Pineview-D (D510) CPU COM Express basic TYPE II, 1 GB DDR-2 RAM, 4 GB NAND\coated

CPC1310-2 Intel Atom Pineview-D (D510) CPU COM Express basic TYPE II (ISA, 1 Gigabit LAN), 1 GB DDR-2 RAM

CPC1310-2\coated Intel Atom Pineview-D (D510) CPU COM Express basic TYPE II (ISA, 1 Gigabit LAN), 1 GB DDR-2 RAM\coated

CPC1310-3 Intel Atom Pineview-M (N450) CPU COM Express basic TYPE II, 1 GB DDR-2 RAM

CPC1310-3\coated Intel Atom Pineview-M (N450) CPU COM Express basic TYPE II, 1 GB DDR-2 RAM\coated

CPC1310-04 Intel Atom Pineview-M (N450) CPU COM Express basic TYPE II (ISA, 1 Gigabit LAN), 1 GB DDR-2 RAM

CPC1310-04\coated Intel Atom Pineview-M (N450) CPU COM Express basic TYPE II (ISA,  1 Gigabit LAN), 1 GB DDR-2 RAM\coated

Delivery Checklist

CPC1310 module

Anti-static bag Package


Additional accessories and cables

KIB1283 carrier board for ComExpress/ComExpress Extended Type II pinout modules

*Are not included in delivery checklist, ordered separately
