Fastwel KIC551 3U CPCI Ethernet Switchboard

  • Brand: Fastwel
  • Type: CompactPCI
  • Model name: KIC551
  • Product description: Fastwel CompactPCI KIC551 PCIe/GB Ethernet Switchboard is designed for building modular systems based on CompactPCI Serial form-factor.
  • INQUIRY

Fastwel KIC551 3U CompactPCI S.0 PCIe/GB Ethernet Switchboard

•    CPU: Intel Pineview-D Dual Core (D510) 1.66 GHz
•    Compliance with PICMG® CPCI-S.0 R1.0,
      PCI Express® 3.0 specification,
      PCI Express® External Cabling Specification rev.1
•    Compatibility with OS: Windows 7, Linux 2.6
•    Dimensions: 3U: 160 mm × 100 mm, 4HP
•    Power supply: +12 V
•    MTBF: No less than 80 000 hours

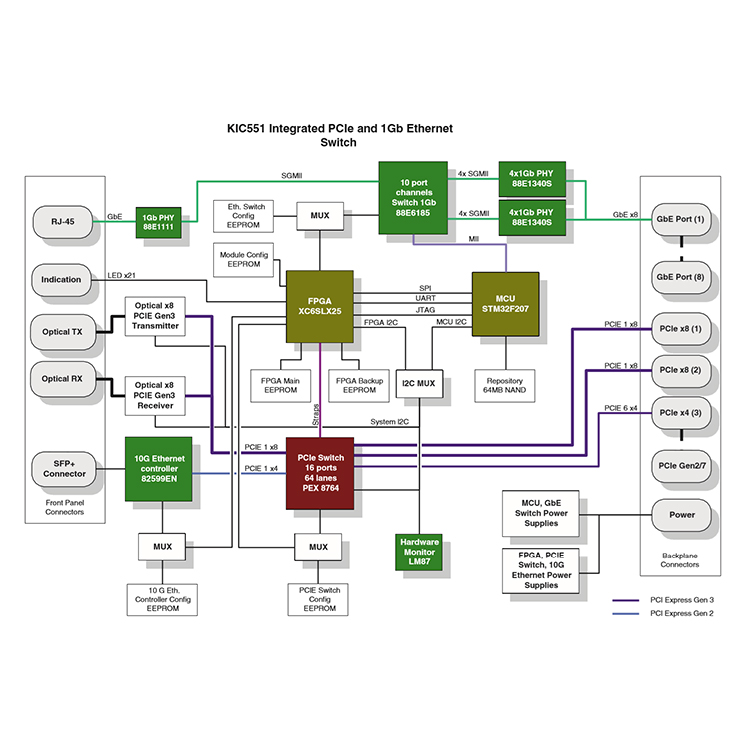

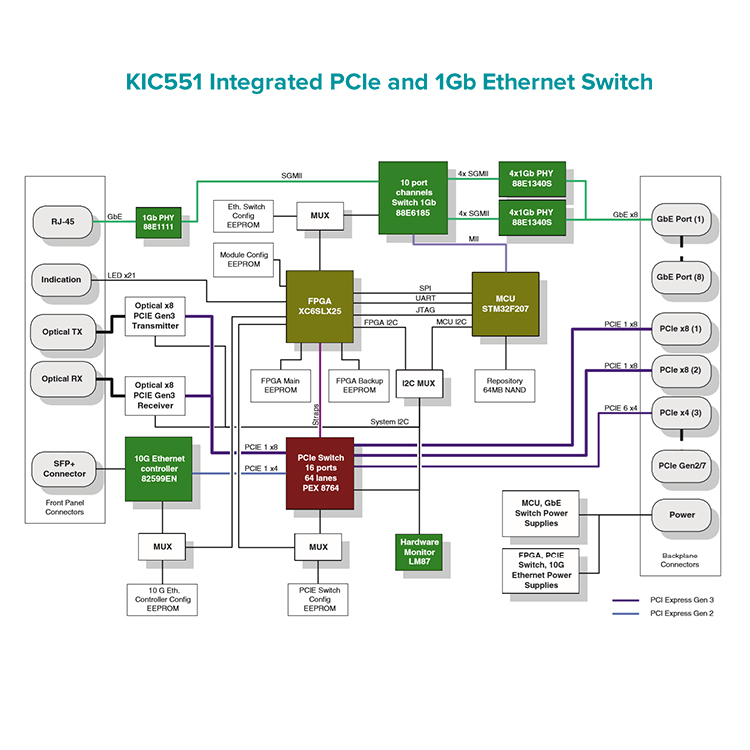

KIC551 PCIe/GB Ethernet Switchboard is designed for building modular systems based on CompactPCI Serial form-factor.


PCIe Gen 3 interface
Support of Peer-to-Peer operating modes and Multicast
•Possibility of flexible port configuration in x1, x4, x8 modes
•Possibility of Upstream port switching
•Support of switching 54 channels/12 ports PCIe Gen2/3
•Switching of up to 8 PCIe ports, routed to the backplane with PCIe port, routed to the front panel

PCIe bus extension via optical channel (for 01 version)
•Bus width - 8 x PCIe
•Support of GEN3 throughput capacity (8 Gb/sec.)
•Cable connection MPO 12 Fiber 50um MMF (2 cables)
•Maximum connection length - 50 m
•Fiber Optic maximum connection speed PCI Express - 64GT/s

1 Gb Ethernet interface
•Switching of 1000BASE-T channels, routed to the backplane with 1000BASE-T on the front panel
•Durability isolation is no less than 100V for the channels, routed to the backplane
•Durability isolation is no less than 500V for the channels, routed to the front panel
•Ensuring communication of peripheral modules using the Intel AMT technology


Optical Ethernet 10 GB
•Connection of SFP+ modules
•Ensuring the speed channel for transfer of data

Configuration FPGA
•Control of incoming charge supply
•Boot support from the backup programmable readonly memory in case


WD timer actuates
•Configuration and loading of switchboards PCIe and 1Gb Ethernet

•Support of firmware upgrade via Ethernet channels
•Indication of module operation


Supported standards

•PICMG® CPCI-S.0 R1.0 March 2, 2011
•PCI Express® 3.0 specification
•PCI Express® External Cabling Specification Revision 1.0 January 4, 2007
•PCI Express® Base Specification Revision 2.0 December 20, 2006
•SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module SFP+

Power supply
•+12 V


Maximum current consumed KIC551 from external power supply source
•3.5 A

Corresponds to RoHS
For conduction version, the device corresponds to the groups
•1.1, 1.2, 1.3, 1.4.1, 1.6.4, 2.1.1, 2.1.2, 2.2.1, 2.3.1 in accordance with the GOST RV 20.304-98 standard

For air-cooling version the device corresponds to the groups
•1.3, 2.1.1, 2.1.2, 2.2.1,2.3.1 in accordance with the GOST RV 20.39.304-98 standard

Compatibility with OS
•Windows 7
•Linux 2.6


Dimensions
•3U: 160 mm x 100 mm , 4HP

MTBF
•No less than 80 000 hours

Product Operating Condition:

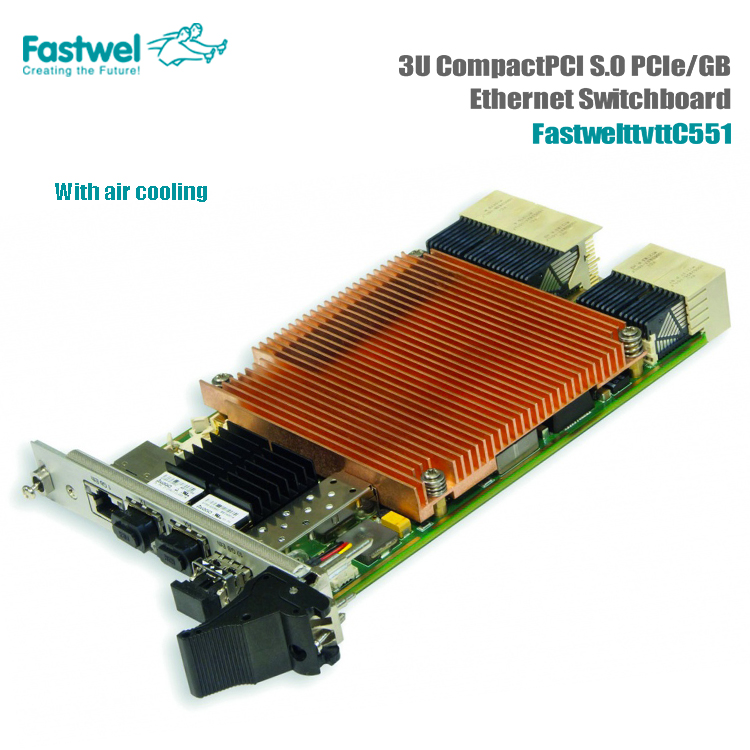

- with air cooling

Type of exposure

Parameter name

Parameter value

Document

Low temperature

-40 (0*) °C

GOST 28209-89 (IEC 68-2-14-84)

Change of temperatures

High temperature

-85(+70*)°C

Humidity

Relative humidity

Up to 80% without

GOST 28209-89 (IEC 68-2-14-84)

Damp heat (+55C°) (for coated devices)**

Relative humidity

Up to 93%

GOST 28216-89 (IEC 68-2-30-82)

Sinusoidal vibration

Frequency range (Hz)

10...150

GOST 28203-89 (IEC 68-2-6-82)

Acceleration, g

2

Single shocks

Peak acceleration, g

50

GOST 28213-89 (IEC 68-2-27-87)

Multiple shocks

Peak acceleration, g

25

GOST 28215-89 (IEC 68-2-29-87)

Number of shocks

1000

*For commercial version

** Only for COATED versions. Only durability of device is guaranteed

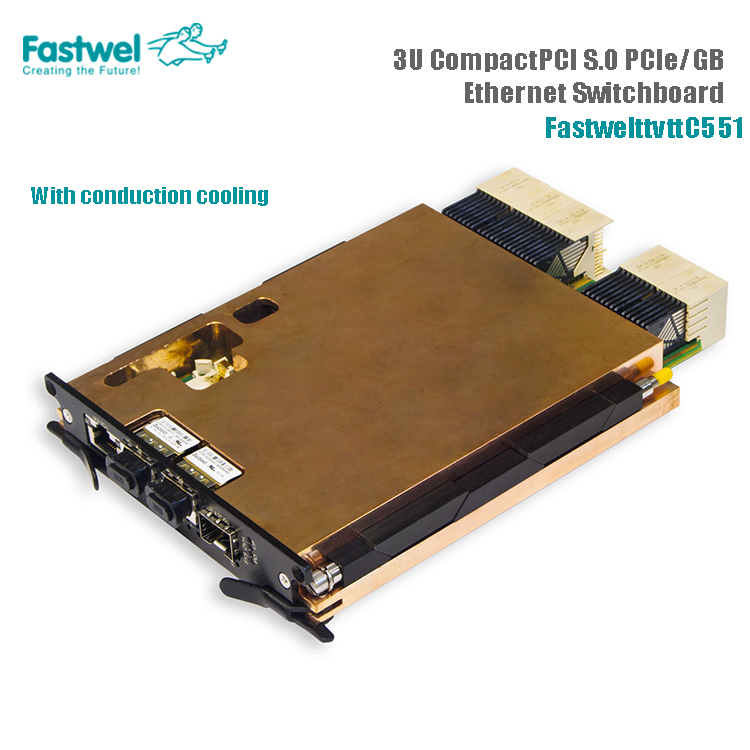

- with conduction cooling

With conduction cooling

Type of exposure

Parameter name

Parameter value

Document

Elevated temperature, operating temperature

+85°C

GOST RV 20.57.306-98 standard

Elevated temperature,
limit temperature

+85°C

GOST RV 20.57.306-98 standard

Reduced temperature, operating temperature

-55°C

GOST RV 20.57.306-98 standard

Reduced temperature
limit temperature

-65°C

GOST RV 20.57.306-98 standard

Temperature change

From the reducedlimit
temperature to the
elevated

GOST RV 20.57.306-98 standard

High humidity

98% at +35°C

Atmospheric precipitation

15 mm/min

Static dust

5 g/m3 at the air speed

Dynamic dust

5 g/m3 at the air speed

Sinusoidal vibration

Frequency range (Hz)

1-500 Hz

GOST RV 20.57.305-98 standard

Acceleration, g

6g

Single shocks

Peak acceleration, g

75g length
1-5 ms

GOST RV 20.57.305-98 standard

Multiple shocks

Peak acceleration, g

15g length
5-15 ms

. GOST RV 20.57.305-98 standard

Number of shocks

10 000

Configuration KIC551 with Air Cooling

KIC551 -01 -C Optical Ethernet 10 GB, PCIe Optical x 8, 1 GB Ethernet, commercial version, air cooling

KIC551 -01 -I Optical Ethernet 10 GB, PCIe Optical x 8, 1 GB Ethernet, industrial version, air cooling

KIC551-02-C Optical Ethernet 10 GB, 1 GB Ethernet, commercial version, air cooling

KIC551-02-I Optical Ethernet 10 GB, 1 GB Ethernet, industrial version, air cooling

Configuration KIC551 with Conduction Cooling

KIC551 -RC-01 -I Optical Ethernet 10 GB, PCIe Optical x 8, 1 GB Ethernet, industrial version, conduction cooling

KIC551-RC-02-I Optical Ethernet 10 GB, 1 GB Ethernet, industrial version, conduction cooling

KIC551 Available Options

Coating \COATED| Conformal coating

Delivery checklist

KIC551 delivery checklist contains:

1.    KIC551 Module

2.    Packaging
