Fastwel PC104

  • Fastwel VIM301 Video Graphics Controller Card Original
  • Fastwel VIM301 Video Graphics Controller Card Original
Fastwel VIM301 Video Graphics Controller Card OriginalFastwel VIM301 Video Graphics Controller Card Original

Fastwel VIM301 Video Graphics Controller Card Original

  • Brand: Fastwel
  • Type: Original Fastwel
  • Function: Video Graphics Controller Card
  • Type 2: PC104-plus

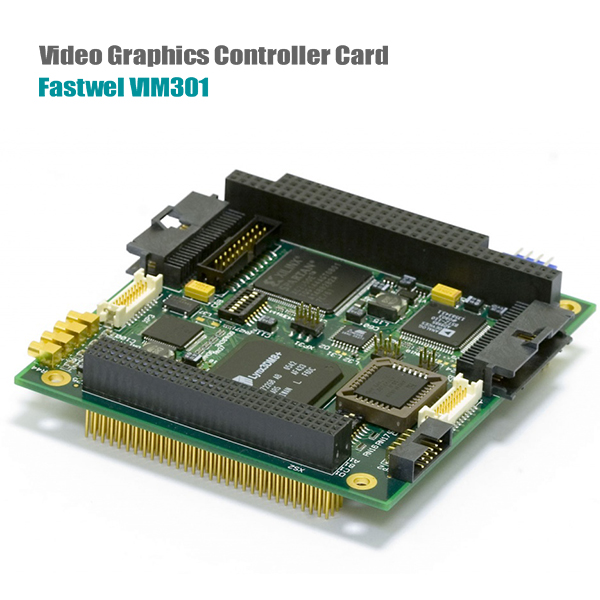

  • Product description: Fastwel VIM301 is a PC/104-Plus graphics controller module based on the low power mobile display controller SM722G8 (Lynx3DM8+) from Silicon Motion with 8 MB of integrated video memory. FASTWEL PC104
  • INQUIRY

Fastwel VIM301 Video Graphics Controller Card


Lynx3DM8+(SM722G8) video processor

Graphics memory: 8 MB, 64-bit, 100 MHz

PCI/104 (PCI)

PC/104 (ISA), not used, installed for compatibility

One RGB connector for CRT monitors

Two LVDS interfaces

Two Flat Panel (FP) interfaces

One S B connector for CRT monitors

 Two LVDS interfaces

 Two Flat Panel (FP) interfaces

 One SGD 4-bit LCD (EL Planar) interface

 Four video input channels.

VIM301 is a PC/104-Plus graphics controller module based on the low power mobile display controller SM722G8 (Lynx3DM8+) from Silicon Motion with 8 MB of integrated video memory.

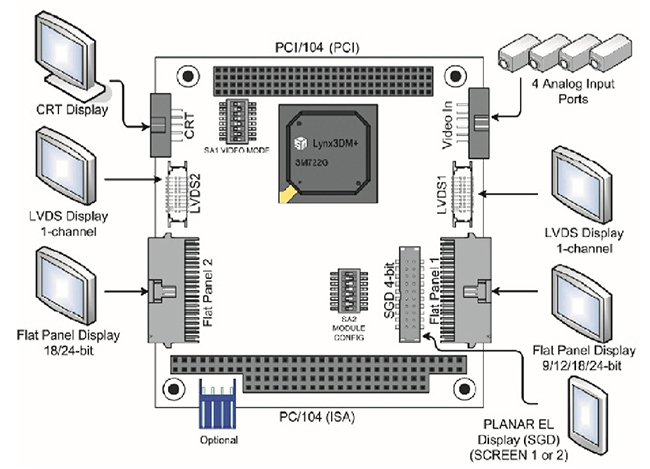

Depending on version, VIM301 allows connection of the following displays: analog CRT monitor with RGB interface, up to two LCD panels with Flat Panel (FP) interface (resolutions 640×480, 800×600, 1024×768, 1280×1024, 9/12/18/24-bit color), up to two LCD panels with single channel LVDS interface, electroluminescent (EL) monochrome display from Planar with SGD 4-bit LCD interface (resolution 320×240), up to four analog video cameras.

For communication with other modules in stack VIM301 uses PCI bus (PC/104-Plus connector). The module is designed for embedded applications requiring low power consumption and capable to operate within temperature range from -40°C to +85°C.

GD 4-bit LCD (EL Planar) interface

 Four video input channels.

VIM301 is a PC/104-Plus graphics controller module based on the low power mobile display controller SM722G8 (Lynx3DM8+) from Silicon Motion with 8 MB of integrated video memory.

Depending on version, VIM301 allows connection of the following displays: analog CRT monitor with RGB interface, up to two LCD panels with Flat Panel (FP) interface (resolutions 640×480, 800×600, 1024×768, 1280×1024, 9/12/18/24-bit color), up to two LCD panels with single channel LVDS interface, electroluminescent (EL) monochrome display from Planar with SGD 4-bit LCD interface (resolution 320×240), up to four analog video cameras.

For communication with other modules in stack VIM301 uses PCI bus (PC/104-Plus connector). The module is designed for embedded applications requiring low power consumption and capable to operate within temperature range from -40°C to +85°C.

System

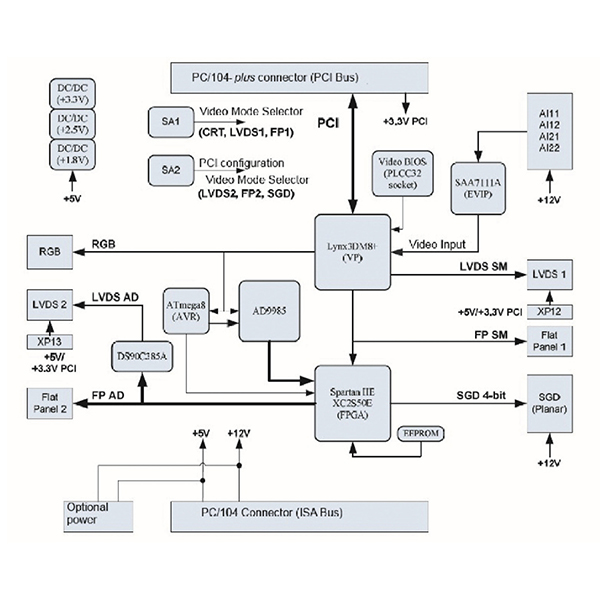

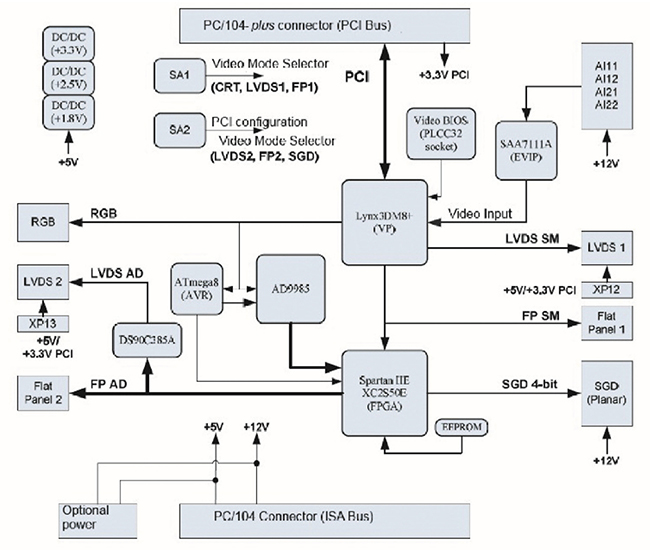

GPU: Lynx3DM8+(SM722G8) video processor: 32 bit graphics core; 128 bit Drawing Engine (100 MHz); PCI 2.1 compatible controller, 33 MHz, Master/Slave modes; RAMDAC 200 MHz
MTBF: 100 000 hours
BIOS
Video BIOS: 64 KB chip with BIOS; ACPI 1.0 compatible
Graphics
Graphics memory: 8 MB, 64 bit, 100 MHz, on chip
Video input: up to four analog video cameras; PAL/SECAM or NTSC standards; resolutions 720×576/720×504; 25/30 frames per second Software Support
MS DOS 6.22, FDOS 6.22
Windows 98, NT, XP, CE 4.2
Linux 2.6
QNX 6.3
Interfaces
PCI/104 (PCI)
PC/104 (ISA), not used, installed for compatibility
One VGA connector for CRT monitors
Two LVDS interfaces
Two Flat Panel (FP) interfaces
One SGD 4 bit LCD (EL Planar) interface
Four video input channels

LCD panels with resolutions 640×480, 800×600, 1024×768, 1280×1024 and 9, 12, 18, 24 bit color
TFT/DSTN LCD support
Planar monochrome EL displays support, resolution 320×240
Mechanical
Dimensions: 96×95.4×23.7 mm (3.78"×3.75"×0.93")
Weight: 0.120 kg
Power
+5 V ±5% DC via PC/104 and PCI/104 connectors
Optional power connector
0.6 … 1.0 A max consumption current, depending on the version
Environmental Conditions
Operating temperature range: –40°Ñ to +85°Ñ for VIM301 01 and VIM301 04; 0°Ñ to +70°Ñ for all other versions
Storage temperature range: –55°C to +90°Ñ
Relative humidity: 5% to 90% at +25°Ñ, noncondensing
Vibration: 10 g; single shock stability: 150 g; multiple shock stability: 50 g
Warranty
3 years for parts and labor
