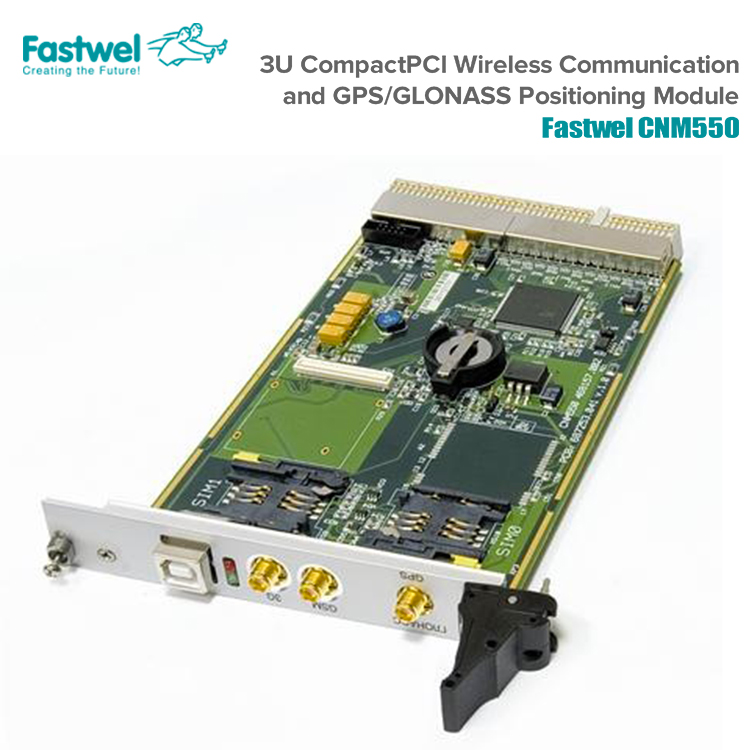

Fastwel CNM550 3U CompactPCI navigation and wireless communication module

•    Compliance with PICMG 2.0 specification (32-bit / 33 MHz)
•    Supports Windows XP Embedded/Vista/7, Linux
•    GSM 850/900/1800/1900 MHz, UMTS 850/1900/2100 MHz
•    Data transmission: GPRS (up to 48 Kbit/s reception/transmission), EDGE (up to 236.8 Kbit/s reception),

HSDPA (up to 7.2 Mbit reception), HSUPA class 5 (up to 2 Mbit transmission)
•    Two SIM/USIM card sockets
•    USB 2.0 device interface
•    24 universal GPS/GLONASS channels; maximum
•    positioning error – 5 m (2 m in differential mode)
•    External GSM/UMTS and GSM/ GLONASS antennas support
•    Operating temperature: –40°C to +85°C (IEC 68-2-14-84)

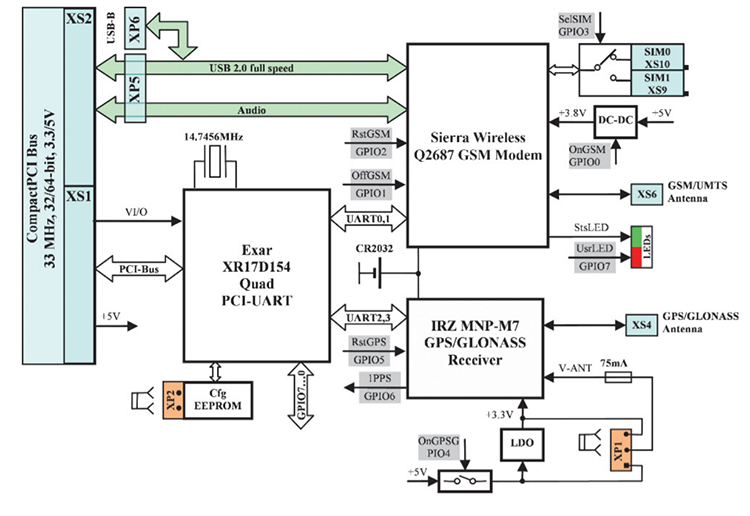

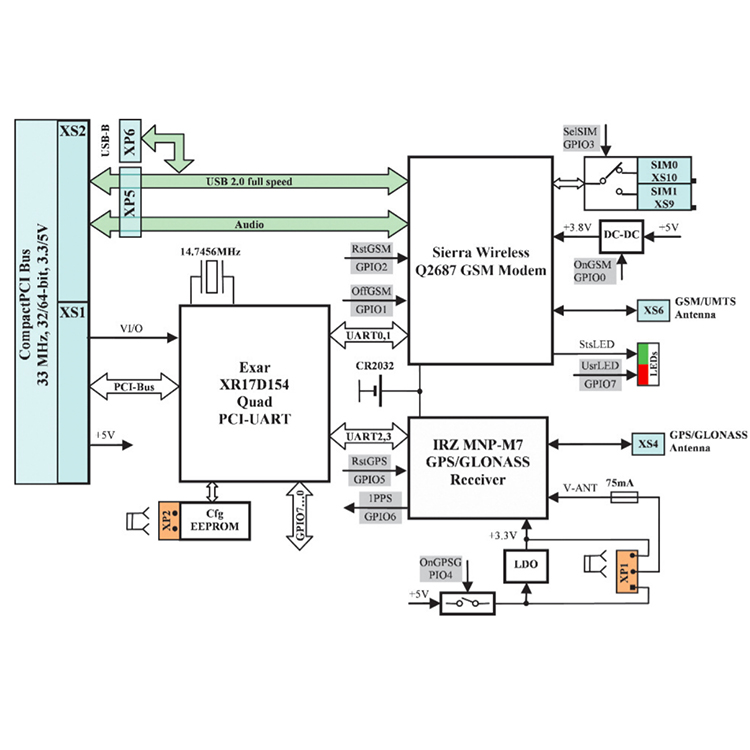

CNM550 is a 3U CompactPCI navigation and wireless communication module with Q26Extreme GSM/UMTS GPRS/EDGE/HSPA

modem and MNPM7 GPS/GLONASS receiver (IMES.468157.00201) designed to be used for embedded computing systems with

applications requiring global positioning information, source for external real time clock and/or wireless voice or data channel

via GSM/UMTS networks.

• GPS/GLONASS receiver: MNP-M7 (versions CNM550-01, CNM550-02)

24 universal channels for L1 ranges of GPS/GLONASS signals;

Dynamic range of antenna input: -130...-55 dBm;

Programmable navigation operations rate: 1.20Hz;

Coordinates measurement accuracy: not more than 6 m (2 m using differential corrections) at speeds up to 515 m/s;

First navigation parameters measurement delay after cold restart: 50 s max;

Communication with CPU module through two UART channels at speeds up to 115.2 Kb/s using software switchable protocols: MNP-Binary, IEC 61162-1 (NMEA-0183) or RTCM 10402.3;

Software Windows-utility for obtaining the detailed information from the receiver and for its operating mode management;

External GPS/GLONASS antenna connection via front panel SMA connector;

Power supply voltage for an external
GPS/GLONASS antenna: 5 V, 3.3 V, or passive antenna, set with a jumper; maximal consumption current: 50 mA; the circuit is protected by the self-resettable fuse;

CR2032 lithium battery used as power backup for storage of almanac, satellite ephemerides, and internal clock data.

Battery life is not less than 2.5 years.

GSM modem: Q2687 for operation in 850/900/1800/1900 MHz GSM frequency ranges (version CNM550-01)

•GPRS class 10, CS1...4

•EDGE class 10, MCS5...9

Communication with CPU module through two UART channels at speeds up to 921.6 Kb/s and USB2.0 full speed port;

Connection of GSM antenna via SMA front panel connector;

Audio: connector for a speaker and an electret microphone;

Two software switchable SIM-cards
CompactPCI interface

Compliance to PCI Local Bus Specification, revision 2.3

32-bit / 33 MHz Bus Target

Universal 3.3V / 5V interface
Power

Consumption from a +5V power source, max: •CNM550-01: 0.8Arms, 2.1Apeak

•CNM550-02: 0.35A

OS compatibility:

QNX 6.3x, 4.25;

Windows XP, XPE;

Linux

Operating temperature:

CNM550-01, CNM550-02:-40°C...+65°C
Optional protective coating
Dimensions:
130.5x213.0x20.32 mm






























Versions

CNM550-01 -  navigation and communication module with Q2687 GSM GPRS/EDGE modem and MNP-M7 GPS/GLONASS

receiver (I M ES.468157.002-01)

CNM550-02 -  navigation module with MNP-M7 GPS/ GLONASS receiver (IMES.468157.002-02)


Delivery checklist:

1. CNM550 module

2. Antistatic bag

3.  Consumer package (cardboard box)

4.  CD disc with documentation and drivers
