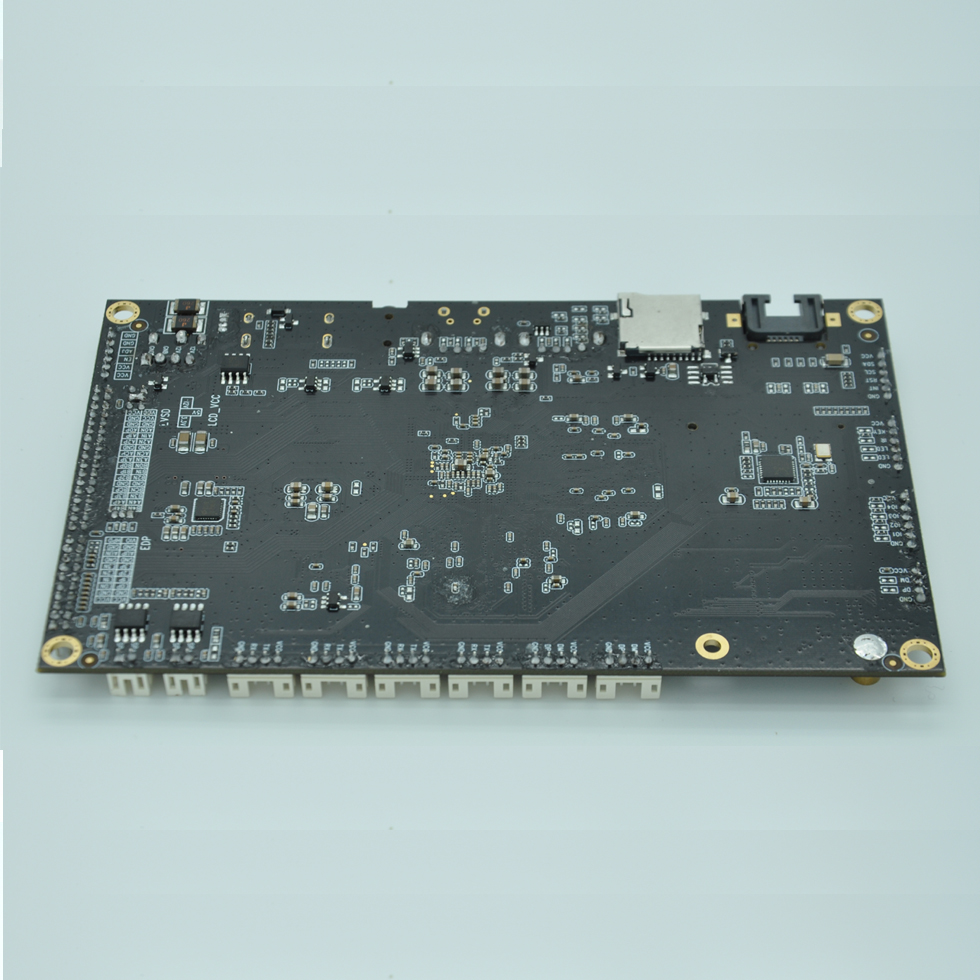

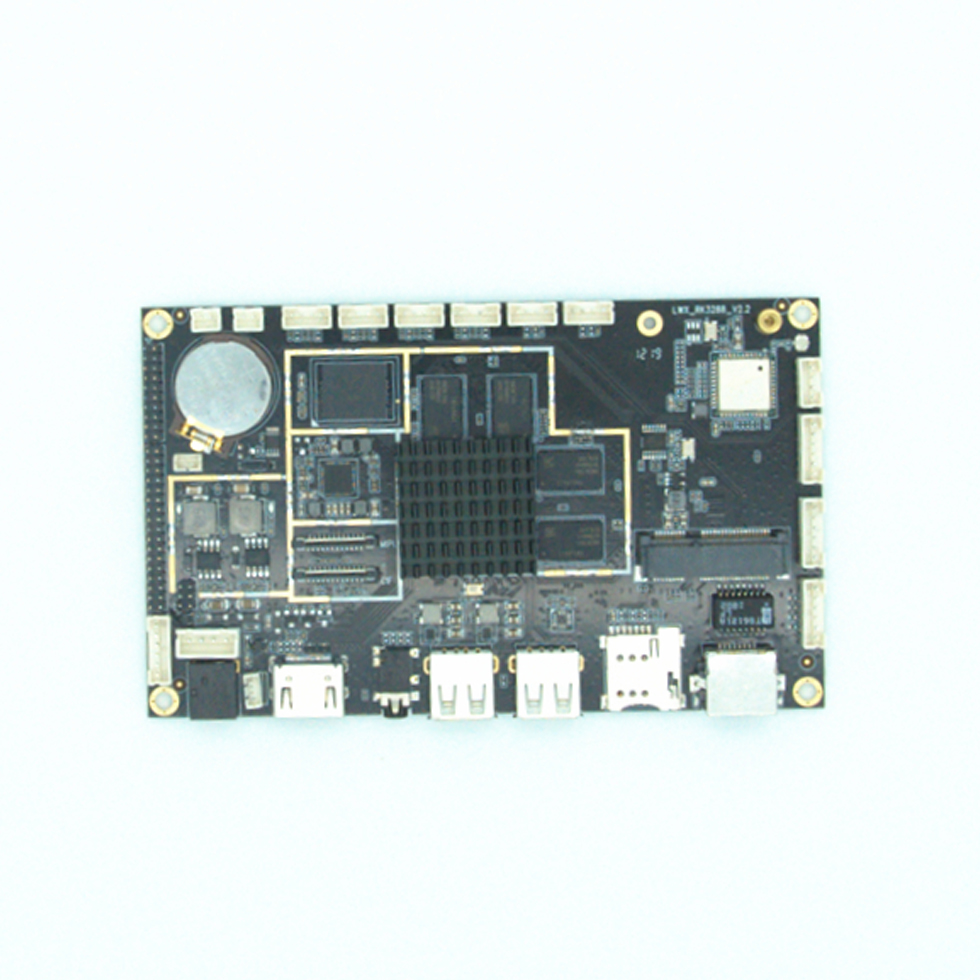

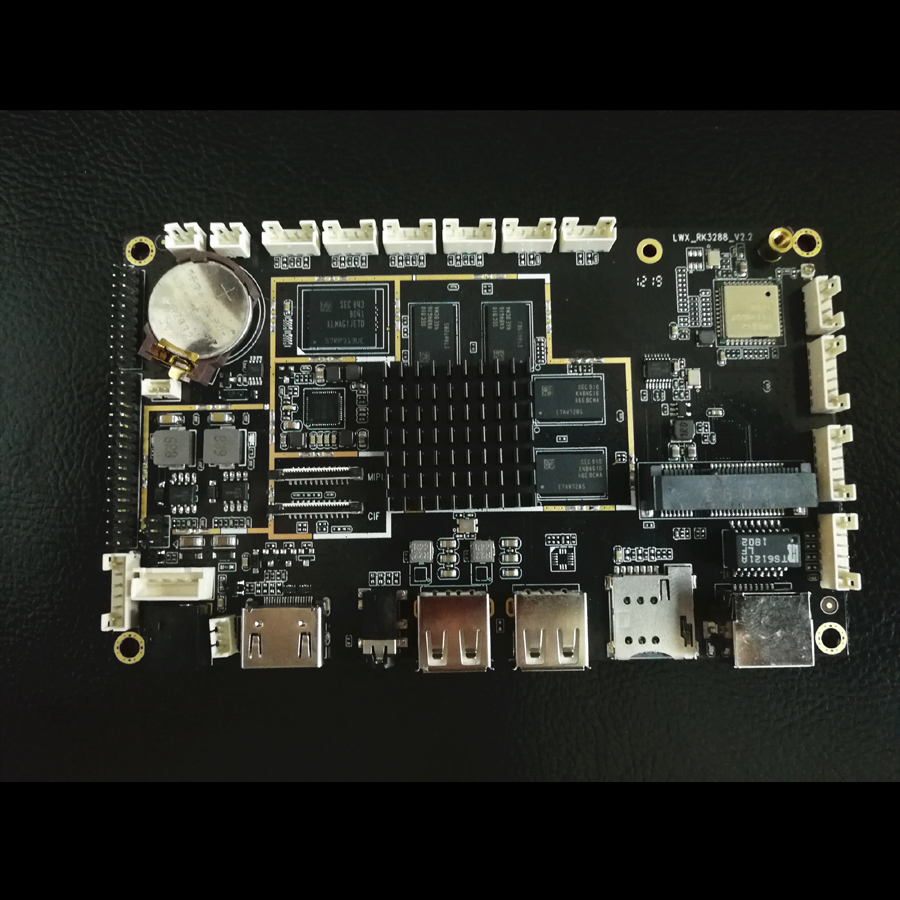

OEM/ODM Android Development Kit for Smart Mirror Terminal Devices

  • ODM Android development kit
  • Support ID design
  • Short development cycle
  • Application: Development board
  • Product description: ODM Android development kitOne-stop PCBA design solution, Support ID design, Short development cycle, Low development cost
  • INQUIRY

HaHardware specification:

CPU:                              RK3288, Quad core A17Frequency 1.8GHz

Memory:                         DDR3 2GB, support max 4GB

Internal memory:             EMMC 8Gsupport max 128GB

Decoding resolution:        1080P, 4K, H.265 DXVA

Operation system:           Android 5.1

Play modes:                   Multiple play modes, such as loop, timing, insertion, etc.

Network:                        Wi-Fi, wired network

Gravity sensor:              Support G-sensor

Video play:                   Support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on.

Photo formats:              Support BMP,JPEG,PNG,GIF

USB interfaces:              5pcs of USB 2.0 (5pcs of USB HOST, 1pc of USB OTG)

Serial port:                    4 UART (support RS232)

TP interface:                 1pc of 10PIN TP interface1pc of I2C interface can be used as TP interface.

Camera interface:          1pc

MIPI camera:                Support 1200 resolution

TF card:                      Support max 128GB

LVDS output:              1pc of LVDSsupport single and double 6/8/10 pins

MIPI input/output:       1pc of MIPI

EDP:                         1pc of EDP, support 4K screen

HDMI output:             1pc, support 4K/1080P output

Audio output:             Dual track, support 4R*3W double speaker

RTC                          Support real time clock. Valid in 2 years

Time switch:               Support

TF card/USB :             Support

PCB:                       6layers board Thickness of board: 1.6mm

Height limitation:         Front side height limitation: 7mm, downside height limitation: 3mm

Size of board:          140*85mm*13m


Please visit the "Download" for specification document.
