  •  Fastwel Highly Integrated SBC CPB905 3.5
 Fastwel Highly Integrated SBC CPB905 3.5

Fastwel Highly Integrated SBC CPB905 3.5

  • Brand: Fastwel
  • Original & New: Yes

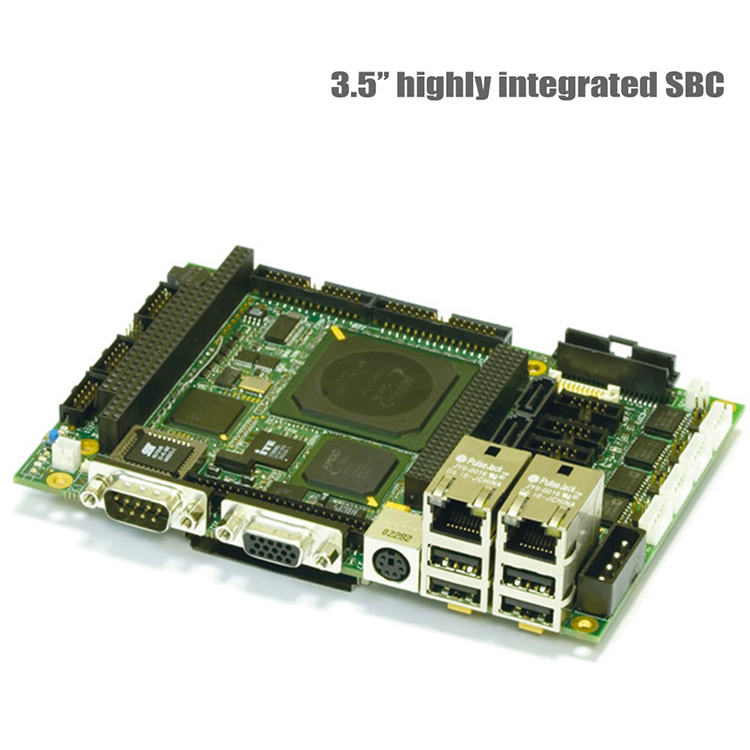

  • Product description: Fastwel 3.5" Highly Integrated SBC СPB905 is a 3.5" single board computer based on AMD LX800 (500 MHz) CPU with PC/104 support (32-bit PCI and 16-bit ISA).
  • INQUIRY

Specifications

•    AMD Geode LX 800 (500 MHz)

•    256 MB DDR SDRAM
•    256 MB Flash disk
•    CompactFlash Type I/II socket
•    USB 2.0 support, up to four devices connection
•    Two Ethernet controllers
•    HDD connection: up to two devices
•    FBUS devices connection port
•    Seven COM ports
•    Low power consumption
•    Shock/vibration: 50G/5G

•    Operating temperature range: –40°C to +85°C


Overview

СPB905 is a 3.5" single board computer based on AMD LX800 (500 MHz) CPU with PC/104 support (32-bit PCI and 16-bit ISA).
All components, including CPU and memory are soldered onboard thus providing high vibration resistance up to 50G/5G.
CPB905 has a rich set of interfaces: 2 Fast Ethernet ports, 7 COM ports (4 optoisolated), 4 USB 2.0 ports, supports video output on monitors with CRT, TFT, LVDS interfaces with resolution up to 1920×1440 pixels.
Power consumption of СPB905 module is just 6W, which makes it a perfect solution for systems with passive cooling.
СPB905 operates in industrial temperature (-40...+85°С) and supports Linux, Windows XP Embedded/CE, QNX.
