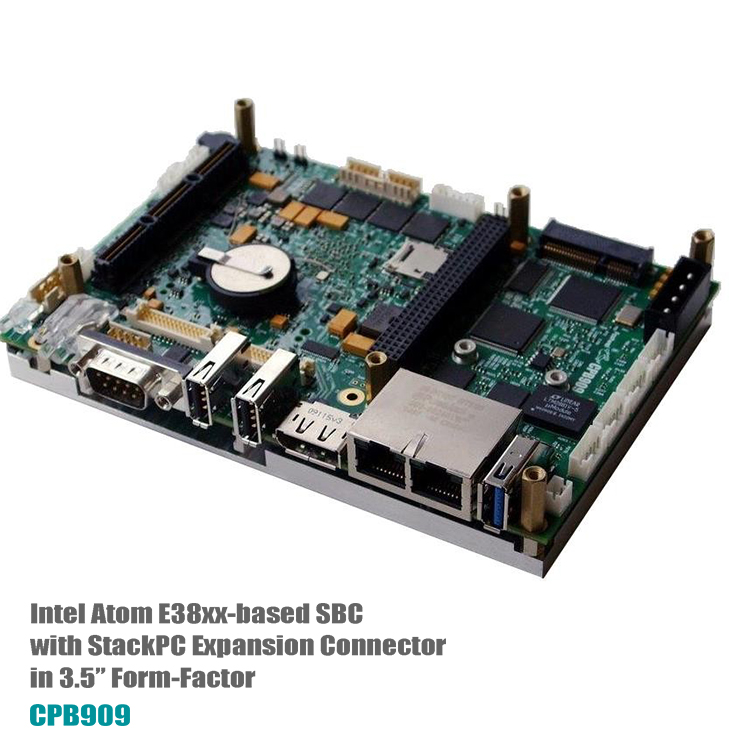

Intel Atom E38xx-based SBC with StackPC Expansion Connector in 3.5” Form-Factor

CPB909


•    CPU Intel Atom E38xx ( 1.33-1.91 GHz)
•    DDR3L-1066/1333 SDRAM up to 4 GB with ECC support
•    Integrated graphics controller, 2D/3D – accelerator
•    FLASH BIOS: 64 Mb SPI-Flash
•    PS/2 keyboard and mouse port
•    Compatibility with OS: Linux, QNX, Microsoft Windows Embedded Standard 7,

Microsoft Windows Embedded Standard 8
•    Operating temperature range: From – 40°C to +85°C
•    Power supply: +5 V

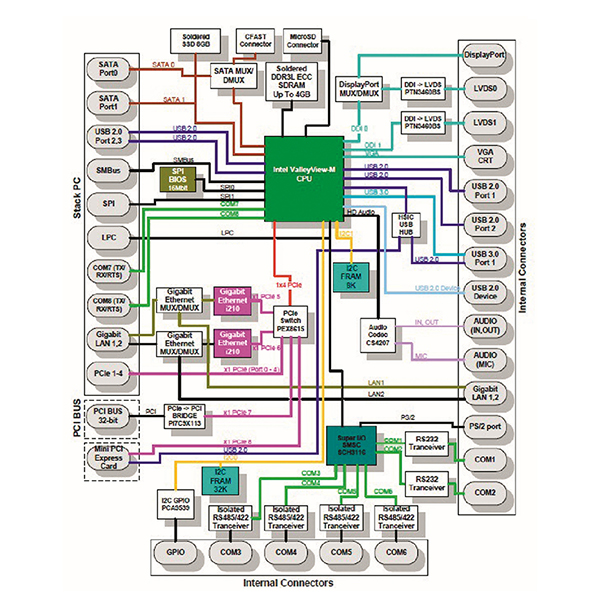

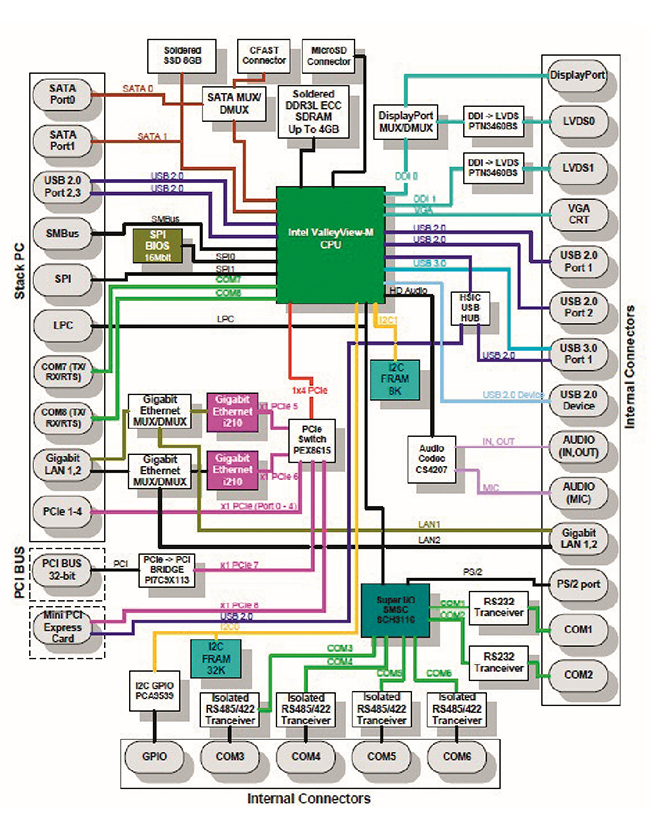

CPB909 – Highly integrated Intel Atom E38xx-based SBC with StackPC Expansion Connector in 3.5” form-factor

designed for mission critical applications. Due to StackPC connector (StackPC: 4×1 PCIExpress, 6×USB 2.0,

2×SATA II, 2×USB 2.0, 2×SATA II, 2×RS-232, LPC, SMbus) the functionality of CPB909 could be extended

with the Fastwel StackPC peripheral modules.


CPU Intel Atom E38xx (1.33-1.91 GHz):

• 2 or 4 CPU cores;

• Support of IA 64-bit/32-bit architecture;

• L1-Cache (32 Kbyte instructions, 24 Kbyte data);

• L2-Cache 1024 Kbyte;

• Support of Intel Streaming SIMD Extension 4.1 & 4.2 (SSE4.1 и SSE4.2);

• Intel VT-x;

• (Intel Digital Random Number Generator);

• Support of Intel SpeedStep Technology;

• Support of Deep Power Down Technology (C7);

• Support of Intel Burst Technology.

RAM: DDR3L-1066/1333 SDRAM up to 4 GB with ECC support; 64-bit data bus.

Integrated graphics controller:

• 2D/3D – accelerator;

• VGA output (resolution up to 2560x1600 60Hz);

• DisplayPort – 2x ports (resolution of up to 2560x1600 60Hz);

• LVDS – 2x ports (resolution of up to 1920x1200 60HZ 18/24bit).

PCI bus:

• Support of specification v.3.0 32 bit / 33MHz;

• Support of up to 4 bus master devices.

PCI-E bus:

• Support of specification v.2.0;

• Support of up to 5 devices in х1 mode (5Gb/sec);

• Support of Mini PCI Express cards.

LPC bus:

• Support of specification v.1.1.

SMBUS:

• Support of specification v.2.0;

• Speed of up to 100 Kb/sec.

FLASH BIOS:

• 64 Mb SPI-Flash;

• Modifiable within the system.

SATA interface (is switched with CFast connector):

• Support of specification v.2.6; SSD SATA Flash disk:

• up to 8 GB (SLC NAND Flash).

Connector for CFast storage hoppers.

Connector for MicroSD storage hoppers.


FRAM 32 Kbyte (SPI port) for user data storage.


2x LAN 10/100/1000Mb controllers.

USB ports:

• Support of USB 1.1 (12Mb/sec), USB 2.0 (480Mb/sec), USB 3.0 (5Gb/sec);

• Connection of up to 5 devices (USB 2.0);

• Single USB 3.0 device.

Serial ports:

• СОМ1, COM2: RS232 (up to 115k baud);

• COM3 – COM6: RS485/422 optoisolation up to 500V (up to 921k baud);

• COM7, COM8: RS232 (up 4M baud);

• Console I/O via serial ports (COM1,COM2).

Digital I/O port:

• 16 individually programmed I/O lines.

Optoisolated input of external reset/interrupt:

• Isolation of up to 500V.

PS/2 keyboard and mouse port.

Audio support:

• HD Audio codec;

• Linear input (stereo);

• Linear output (stereo);

• MIC (mono).

Real Time Clock:

• Powered from lithium battery CR2032 (3V);

• Possibility to connect an external power supply source.

Watchdog timer:

• WDT1 with a fixed actuation interval;

• WDT2 with program setting possibility.

Operating temperature range:

• From - 40°C to +85°C.

Power supply:

• +5 V; Consumed power:

• CPB909-01 TBD;

• CPB909-02 TBD.

Compatibility with OS:

• Linux ;

• QNX ;

• Microsoft Windows Embedded Standard 8;

• Microsoft Windows Embedded Standard 7

CPB909-01: 4 GB RAM, 8 GB NAND, Intel Atom E3845 (Quad Core);

CPB909-02: 2 GB RAM, 4 GB NAND, Intel Atom E3825 (Dual Core).
