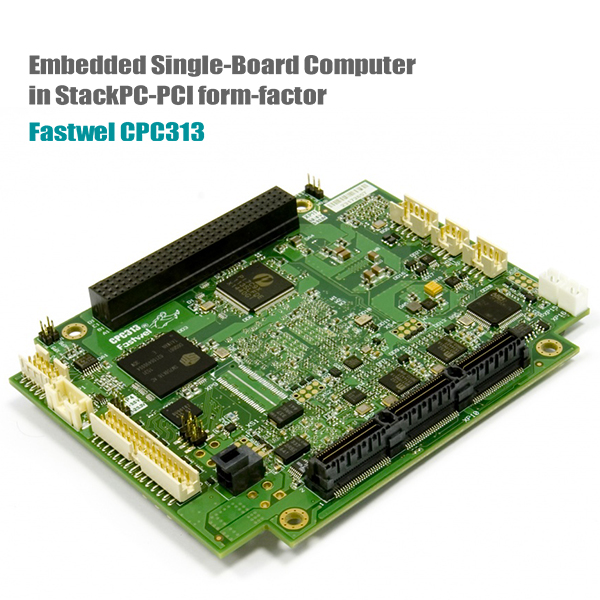

Fastwel CPC313 Embedded Single-Board Computer in StackPC-PCI form-factor


· CPU: Baikal-T1, MIPS32 P5600 core with 900 MHz, 2 physical cores

· DDR3-1600 SDRAM 4 GB, soldered, with ECC support (8 bit)

· Flash drive: up to 16 GB

· StackPC extension connector

· PCI/104 extension connector

· Real-time clock with integrated lithium battery 3V

· Watchdog timer

· Operating temperature: 40°С … + 85°С

· Weight: no more than 200 g

· Software compatibility: Linux (Debian 7.x)

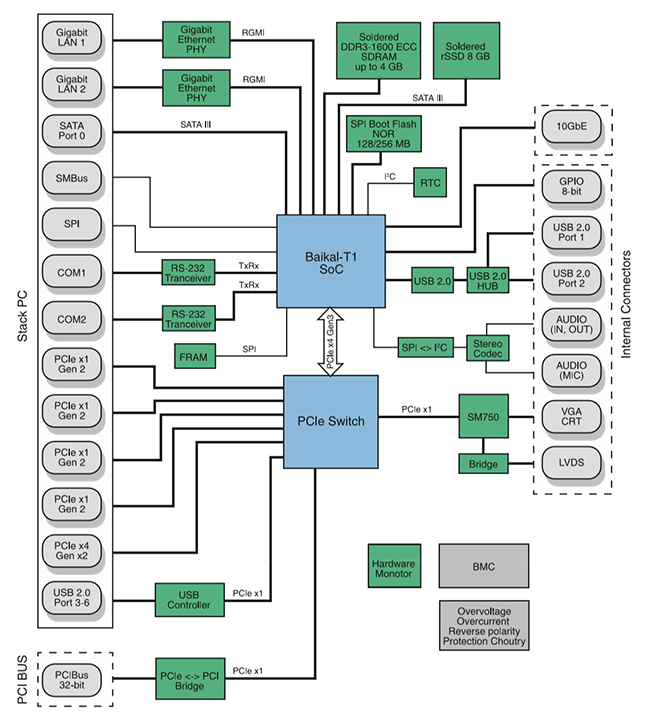

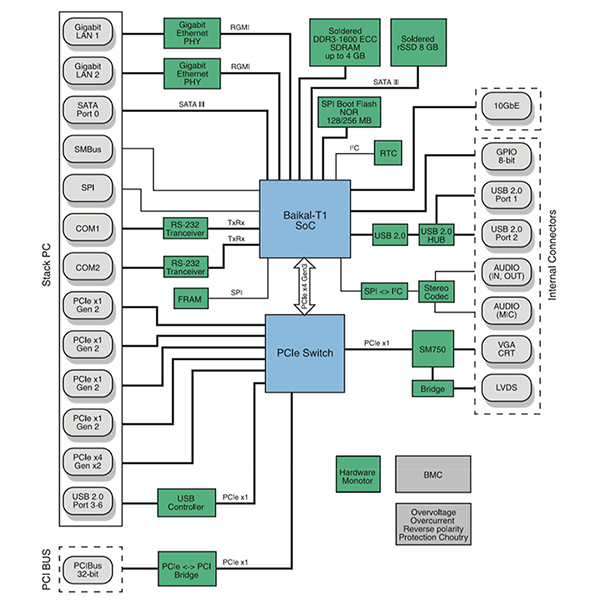

CPC313 is a highly-integrated and power-efficient solution on MIPS32 platform designed for the use in real-time systems,

manufacturing control, data acquisition and processing systems for harsh environments and mission-critical applications.



CPU: Baikal-T1

•MIPS32 P5600 core

•Clock frequency: 900 MHz

•Number of physical cores: 2

•L1 cache 64 KB

•L2 cache 1 MB

RAM

•DDR3-1600 SDRAM 4 GB, soldered

•32-bit data bus

•ECC support (8 bit)

Video ports

•Analog RGB up to 1920×1080 @ 50Hz

•LVDS 18 / 24 bit up to 1366×768 @ 60Hz

Audio ports

•Linear stereo input / output

•Stereo input for microphone connection

Flash Drive

•Up to 16 GB;

•Support of 1.5 Gb Gen I / 3 Gb Gen II / 6 Gb Gen III

StackPC extension connector

•Compatibility with PCIe/104

•4×ports PCIe x1 Gen2 5 Gb/sec

•1×PCIe port x4 Gen3 8 Gb/sec

•2×ports USB 2.0 (Host)

•1×SATA III port

•2×Gbit Ethernet ports

•SMBus

PCI/104 extension connector

•PCI 32 bit / 33 MHz

•Compatibility with Rev 2.3 specification

•Support of up to 4-x Bus Master Devices


LAN ports

•1×10Gbit Ethernet port

•2×Gbit Ethernet ports

•individual insulation of each port against the system 1000V

USB ports (hosts)

•Support of USB 1.1, USB 2.0 (HS, FS, LS)

•Exchange speed up to 480 Mb/sec

•Connection of up to 6 devices

Serial ports

•COM1, СOM2: RS-232 (Rx, Tx) up to 460 Kb/sec

GPIO port

•8×lines, compatibility with the level 5 V

Watchdog timers

•Hardware watchdog timer, integrated into the CPU

microchip with a programmable interval from 1 μs

to 10 min Real-Time Clock with integrated lithium

battery 3 V

Software compatibility

•Linux (Debian 7.x) Power supply voltage +5 В ± 5%

Consumption current

•3000 mA

Operating temperature range

•–40…+85°С

Humidity

•5…95%, at + 25°С, non-condensing

Shock-/Vibration resistance

•50g / 5g

MTBF

•No less than 100 000 hours

Dimensions:

•No more than 115,8 × 96,0 × 23,7 mm

Module weight

•No more than 200 g (including thermal distribution plate)



Configuration of Fastwel CPC313 Embedded SBC in StackPC-PCI form-factor

01 CPC313 CPU Module (StackPC-PCI), Baikal-T1 CPU MIPS32 P5600 core, 1,2 GHz, 4 GB DDR3 SDRAM, 10Gb Ethernet, 2×USB 2.0, SSD 16 GB, 2×RS-232, 8×GPIO, AUDIO


Options

\COATED Conformal coating

\LNX Linux (Debian 7.x)


Delivery checklist:

1. CPC313 CPU Module

2. Heat spreader

3. Packaging
