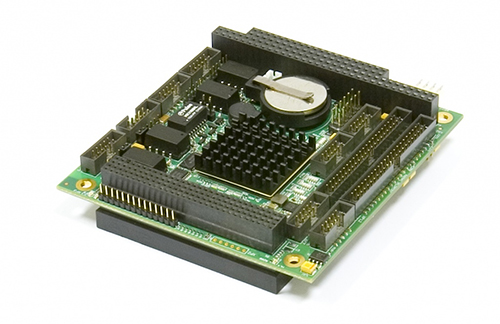

Fastwel CPC307 PC/104-Plus CPU Module

  • Brand: Fastwel
  • Model: CPC307
  • Function: CPU
  • Type: PC104
  • Product description: Fastwel CPC307 PC/104-Plus Vortex86DX SBC CPU Module, is designed for applications requiring high performance low power industrial controller with CAN interface. Fastwel pc104
  • INQUIRY

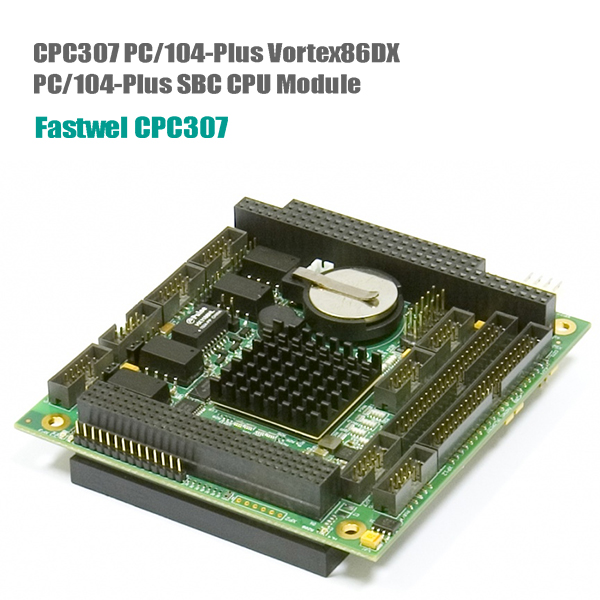

PC/104-Plus Vortex86DX SBC Fastwel CPC307


•    DM&P Vortex86DX (600/800 MHz) processor
•    256 MB DDR2 SDRAM
•    Flash disk 1024 MB
•    HDD connection, up to two devices
•    Ethernet controller 10/100 Mb/s
•    Two opto-isolated CAN 2.0b
•    PC/104-Plus (32-bit PCI, 16-bit ISA)
•    Four USB 2.0 ports
•    Six COM ports
•    Two I2C ports
•    Eight discrete I/O lines
•    150G/10G – shock/vibration (in compliance with Russian State Standard GOST 28213 (IEC 68-2-27-87))
•    Industrial operating temperature range: –40°C to +85°C (IEC 68-2-14-84)
•    Protective coating (option)

Fastwel CPC307 is designed for applications requiring high performance low power industrial controller with CAN interface.


Fastwel СРС307 conforms to PC/104-Plus specification and is compatible with a large number of peripheral and power supply modules delivered by a wide range of manufacturers. Based on x86compatible Vortex 86DX processor operating at 600 or 800 MHz, the module bears 256 MB soldered DDR2 memory and wide range of input/output interfaces.


CPC307 allows system designers simple programming and provides portability of previously developed libraries for x86 architecture with Fastwel DOS™, Linux®, Windows® XP Embedded and QNX® support. Having two isolated CAN ports onboard along with a wide set of popular industrial interfaces, such as RS232, RS485, RS422, USB, and Fast Ethernet,


CPC307 offers integrated functionality which is usually achieved by using several products from different manufacturers. For debugging purposes or for applications requiring graphical interface, CPC307 can operate together with Fastwel VIM301 graphics controller module providing VGA, LVDS, TFT, and SGD interfaces.

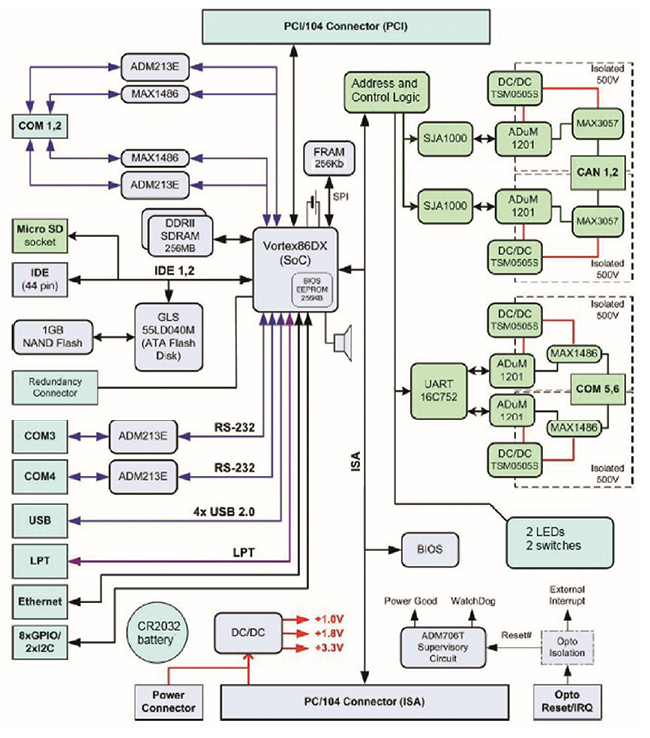

CPU: DM&P Vortex86DX

•Frequency: 600 MHz

•32 bit х86 kernel

•Floating-point unit

•16 bit memory bus

•L1 cache 32 KB

•L2 cache 256 KB

RAM

•DDR2 SDRAM 256 MB, memory bus frequency 266 MHz

FLASH BIOS

•512 KB parallel Flash (ISA)

•256 KB (backup copy, SPI Flash)

•Modifiable within the system

FLASH-drive

•1 GB NAND Flash

•Connected to IDE interface Connector for two memory cards MicroSD (ATA Flash drive is not installed)

•Support of microSD memory cards, micro SDHC

HDD connection port

•Possibility to connect up to 2 devices (when the soldered ATA Flash-drive or microSD memory cards are disconnected)

•Support of UDMA2

PS/2 keyboard and mouse

Single channel Ethernet 10/100 Mb/sec USB port

•Support of up to 4x devices USB 1.1, USB 2.0

•Support of booting from USB Universal parallel port with support of SPP, EPP, ECP modes

Serial ports

•COM1, COM2: RS232/RS485/RS422, no insulation, hardware flow control, data exchange rate up to 115,2 Kbaud

•COM3, COM4: RS232, full, exchange rate up to 115,2 Kbaud

•ÑОМ5, COM6: RS422/RS485, hardware flow control, data exchange rate up to 3,6 Mbaud, channel-by-channel insulation no less than 500V

Two insulated channels CAN 2.0b

•Philips SJA1000 CAN controllers

•Data exchange rate up to 1 Mb/sec

•Channel-by-channel insulation no less than 500 V

PC/104 (ISA)

•16-bit ISA bus, frequency 8/16 MHz

PCI/104 (PCI)

•32-bit PCI bus, frequency 33 MHz

CMOS RAM 256 bytes

FRAM (SPI) 256 Kb

•Automatic save and restore CMOS memory settings during module’s operation without the installed replaceable direct current battery

•Read/Write of user data via BIOS function

Real-Time Clock (RTC)

•Operation of RTC with module’s power off is ensure by the replaceable direct current battery

Opto-isolated reset /interrupt

LEDs

•Two software-controlled LEDs

•Possibility to connect external LEDs

8x lines of digital I/O

2x I2C ports

3x watchdog timers (WDT)

•Two internal, with possibility of software control 30,5 µs … 512 sec

•One external, with a fixed actuation interval of 1,6 sec

Console I/O via serial port

Software compatibility

•FREEDOS

•MS DOS 6.22

•Linux 2.6, QNX 6.4, WinCE 5.0

Power supply

•On PC/104 and PC/104-plus connectors

•On additional power supply connector

•Consumption current up to 1 A.

Operating temperature:from –40°C up to +85°C

Humidity:from 0% up to 80%, no condensation

Vibration resistance:5 – 2000Hz, 10 g

Single shock resistance:150 g

MTBF:200 000 hours

Size:90,6х101,5 mm

Weight:0,135 kg

01 ATA Flash Disk (soldered, 1 GB), CAN 1-2, COM 1-6, PC/104(ISA) PC-104 extension modules are installed only from module’s top

02 ATA Flash Disk (soldered, 1 GB), LAN, CAN 1-2, COM 1-6, GPIO, I2C, ÐÑ104-plus (ISA, PCI)


03 ATA Flash Disk (soldered, 1 GB), LAN, COM 1-4, GPIO, I2C, ÐÑ104-plus (ISA, PCI)


04 MicroSD 1-2, LAN, CAN 1-2, COM 1-6, GPIO, I2C, ÐÑ104-plus (ISA, PCI)


05 ATA Flash Disk (soldered, 1 GB), LAN, CAN 1-2, COM 1-6, GPIO, I2C, ÐÑ104-plus (ISA, PCI), Conformal coating, –50…+90°C.
