Fastwel PC104

  • Fastwel CPC310 PC/104-Plus SBC
  • Fastwel CPC310 PC/104-Plus SBC
Fastwel CPC310 PC/104-Plus SBCFastwel CPC310 PC/104-Plus SBC

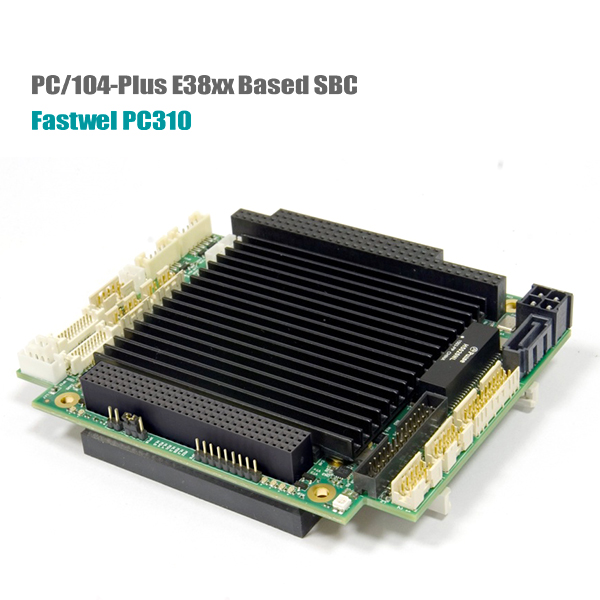

Fastwel CPC310 PC/104-Plus SBC

  • Brand: Fastwel
  • Type: Original Fastwel
  • Product description: Fastwel CPC310 PC/104-Plus E38xx Based SBC, represents an embedded single-board computer in PC/104- Plus format designed for mission-critical applications. FASTWEL Modules
  • INQUIRY

Fastwel CPC310 PC/104-Plus E38xx Based SBC


CPU Intel Atom E38xx ( 1.33–1.46 GHz)

RAM: DDR3L-1066/1333 SDRAM up to 4 GB with ECC support

Integrated video controller: 2D/3D – accelerator; VGA output

(resolution up to 2560x1600 60GHz); 2xLVDS ports

(resolution up to 1600x1200 60GHz 18/24bit);

USB ports: Support of USB 1.1 (12 Mb/sec), USB 2.0 (480 Mb/sec);

Connection up to 4x devices

PS/2 keyboard and mouse port

Compatibility with OS: Linux, QNX; Microsoft Windows Embedded

Standard 8; Microsoft Windows Embedded Standard 7

Power supply: +5 V

Operating temperature range: from –40°C up to +85°C

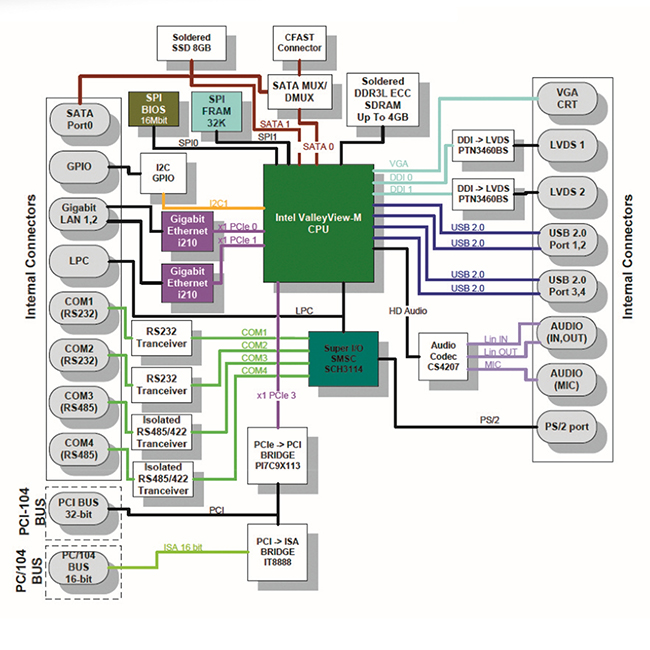

CPC310 represents an embedded single-board computer in PC/104- Plus format designed for mission-critical applications.

Intel Atom E38xx CPU (1.33–1.46 GHz)

1 or 2 CPU cores

Support of

IA 64-bit/32-bit architecture

L1-Cache (32 Kbyte instructions, 24 Kbyte data)

L2-Cache 1024 Kbyte

Support of Intel Streaming SIMD Extension 4.1 & 4.2 (SSE4.1 и SSE4.2)

Intel VT-x

Intel Digital Random Number Generator

Support of Intel SpeedStep Technology

Support of Deep Power Down Technology (C7)

Support of Intel Burst Technology

RAM

DDR3L-1066/1333 SDRAM up to 4 GB with ECC support

64-bit data bus

Integrated video controller

2D/3D-accelerator

VGA output (resolution up to 2560x1600 60 GHz)

2x LVDS ports (resolution up to 1600x1200 60 GHz 18/24 bit)

PCI bus

32-bit / 33 MHz

Support of up to 3-x bus master devices

ISA bus

16-bit / 8 MHz

Support of DDMA, ISA IRQ

FLASH BIOS

64 Mb SPI-Flash

Modifiable within the system

SSD SATA Flash disk up to 8 GB (SLC NAND Flash)

FRAM 32 Kbyte (SPI port) for storing user data

Connector for CFast drives

SATA Gen II connector (switched with CFast connector)

2x LAN 10/100/1000Mb ports (use a single connector)

USB ports

Support of USB 1.1 (12 Mb/sec), USB 2.0 (480 Mb/sec)

Connection up to 4x devices

Serial ports

СОМ1: RS-232 (up to 1.5M baud)

СОМ2: RS-232 (up to 1.5M baud)

СОМ3: RS-422/485 (up to 921 k baud), optoisolated (up to 500V)

СОМ4: RS-422/485 (up to 921 k baud), optoisolated (up to 500V)

Console I/O via serial ports (COM1/COM2)

Digital I/O port

8x separately programmed I/O lines

Optoisolated input of external reset/interrupt

Isolation up to 500 V

PS/2 keyboard and mouse port

Audio support

HD Audio codec

Linear input (stereo)

Linear output (stereo)

Mic (mono)

Real Time Clock (powered from a separate connector)

Watchdog timer

WDT1 with a fixed actuation interval

WDT2 with software adjustment possibility

Operating temperature range

From –40°C up to +85°C

Software compatibility

Linux

QNX

Microsoft Windows Embedded Standard 8

Microsoft Windows Embedded Standard 7

Power supply

+5 V

Power consumption

CPC310-01 – 10 W

CPC310-02 – 8 W




Configuration of Fastwel CPC310 PC/104-Plus E38xx Based SBC

01 4 GB RAM, 8 GB NAND, Intel Atom E3825 (Dual Core)

02 2 GB RAM, 4 GB NAND, Intel Atom E3815 (Single Core)

Delivery checklist:

CPC310 delivery checklist contains: 1. CPC310 Module 2. Packaging
