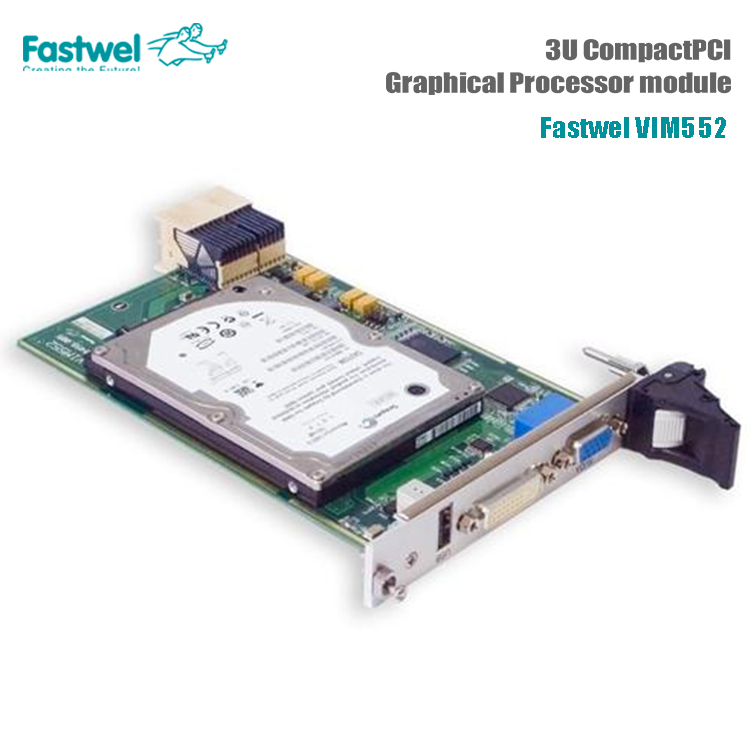

  • Fastwel VIM552 3U CPCI Graphics Module
  • Fastwel VIM552 3U CPCI Graphics Module
Fastwel VIM552 3U CPCI Graphics ModuleFastwel VIM552 3U CPCI Graphics Module

Fastwel VIM552 3U CPCI Graphics Module

  • Brand: Fastwel
  • Type: original Fastwel
  • Product description: VIM552 is a graphics processor module designed for use in systems based on CPC506 processor module conforming to CompactPCI® PlusIO specification or in systems compliant to CompactPCI® Serial specific
  • INQUIRY

Fastwel VIM552 3U CompactPCI Graphics Processing Module

Compliance with PICMG 2.30 and PICMG S.0 standards
LynxExp SM750 graphics processor
64 MB DDR SDRAM
VGA (up to 1920x1440) and DVI-I (up to 1920x1200) front panel interfaces
1xUSB 2.0 on front panel
1xSATA channel with possibility to mount a 2.5" HDD
Passive cooling
Operating temperature: -40°C to +85°C
Windows XP (Embedded), Windows 7, Linux 2.6

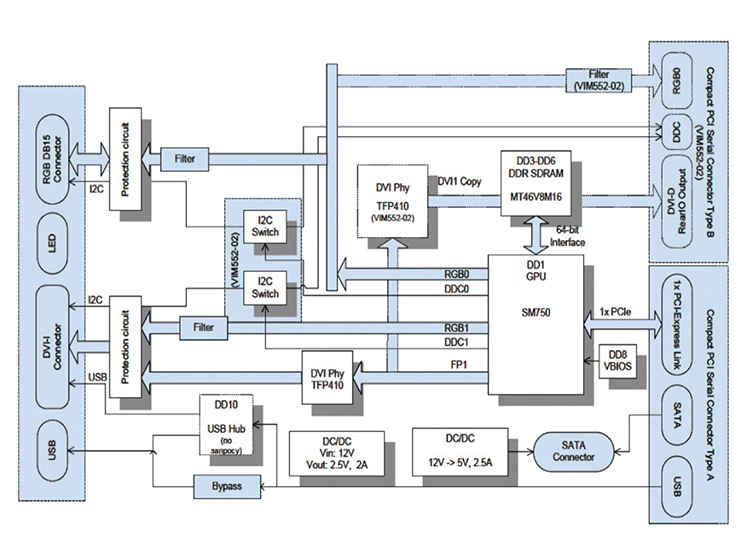

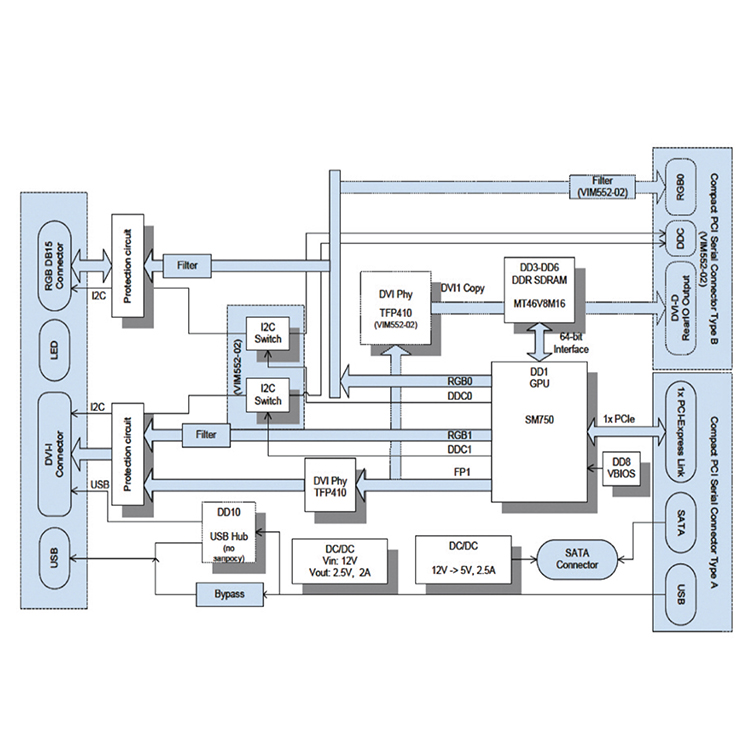

VIM552 is a graphics processor module designed for use in systems based on CPC506 processor module conforming to

CompactPCI® PlusIO specification or in systems compliant to CompactPCI® Serial specification. The module has two

independent outputs with DVI-I and VGA interfaces; they can be used together with integrated graphics subsystem of

the processor module.

VIM552 is based on Silicon Motion SM750 graphics controller having low power consumption; this allows to manage

with passive cooling and using the module as a 2.5” SATA disk carrier.

There is USB connector on the front panel; this enables connection of touch screen displays. The second USB interface

(optional) is routed to DVI connector to the lines not used in single-link mode. This allows to deliver USB directly to

the target device via a dual-link DVI cable.

SM750 Graphics Controller
1 xPCI-Express 1.1 (up to 2.5 GB/s)
DDR RAM interface, 64 bits, up to 64 MB
2 independent RGB outputs
24-bit digital output (duplicates one of the RGBs), used for DVI-I

System memory
DDR333 SDRAM 64 MB, soldered

Video outputs (front panel)
VGA (resolution up to 1920x1440 @ 60 Hz)
DVI-I (resolution up to 1920x1200 @ 60 Hz) single-channel mode
Rooted to RearIO via CPCI Plus Type B connector (optional)
DVI output copy (digital output only) Simultaneous image display to the front panel and to RearIO in the "mirror" mode is possible
VGA output copy
2 DDC channels individually switchable from the front panel to RearIO
USB port
1xUSB port, rooted to the front panel;
1xUSB port can be rooted to DVI connector (upon request)
Operating temperature range
Industrial -40°C to +85°C

Supported OS
Windows XP (Embedded)
Windows 7
Linux 2.6

MTBF: 340 000 hours
Power requirements

Power supply voltage +12 V
Module consumption power is 0.4 A (without peripheral devices)
Weight: no more than 0.16 kg
Dimensions: 212.8x130.5x20.3 mm



Versions:

VIM552-01 -I VIM552 64Mb RAM, DVI-I, VGA, USB, SATA, industrial temperature range (-40°C to +85°C)
VIM552-02-I VIM552 64Mb RAM, DVI-I, VGA, USB, SATA; DVI-D, VGA on RearlO, industrial temperature range (-40°C to +85°C)


Delivery checklist:
1. VIM552 module
2. Antistatic bag
3. Package
4. Installation kit: 4 x M3x5 DIN7985 screws

Available options:

\Coated damp-proof coating

Ver.1.12.2015
