Fastwel VIM556 3U CompactPCI Graphics Controller Module

•    NVIDIA Quadro K2100M: Graphics Controller Module: 665 MHz, 576 CUDA cores
•    RAM: 2 GB GDDR5, 128 bit, 48 GB/s
•    Graphics: 2X3840X2160 @ 60 Hz
•    DisplayPort: 4x DisplayPort interfaces on the front panel
•    Power supply: Supply voltage: +12 V ± 10%
•    OS compatibility: Windows 7 Professional 32/64 bit, Windows Embedded
      Standard 7 32/64 bit; Linux Debian 7.0 32 bit, Astra Linux 64 bit
•    Operating temperature range:
      Commercial version: from 0 to +70° С;
      Industrial version: from –20 to +70° С
      Version with conduction cooling: from –20 to +55°С
•    MTBF: No less than 250 000 hours

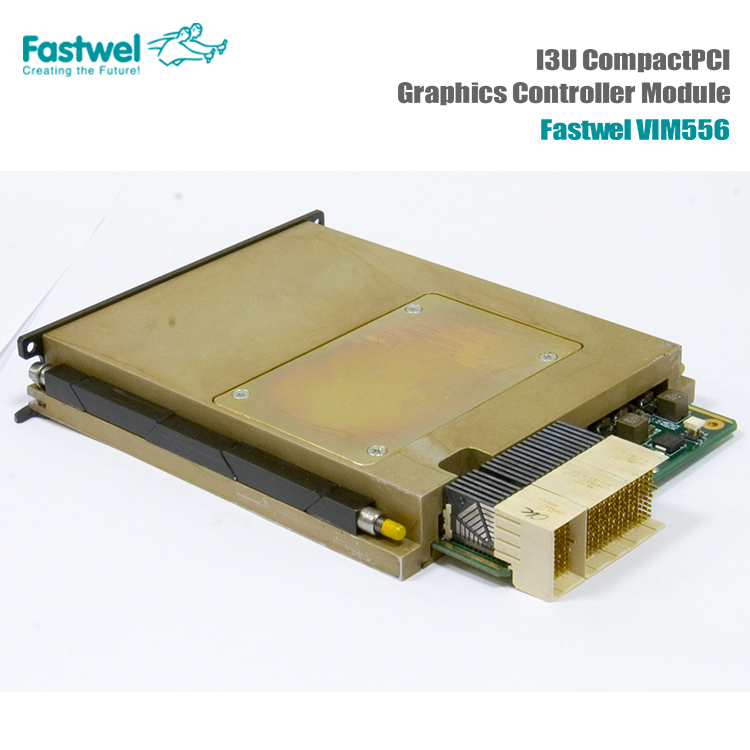

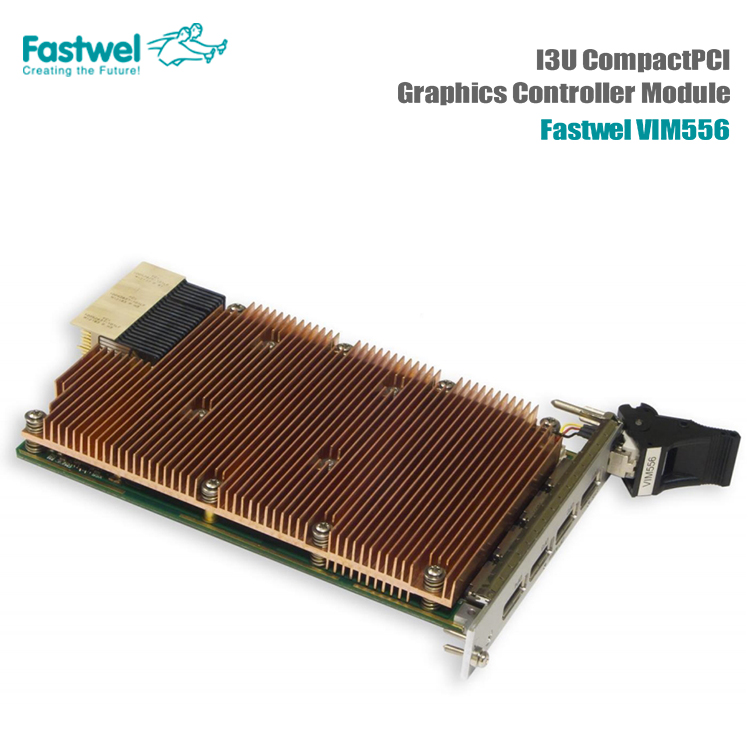

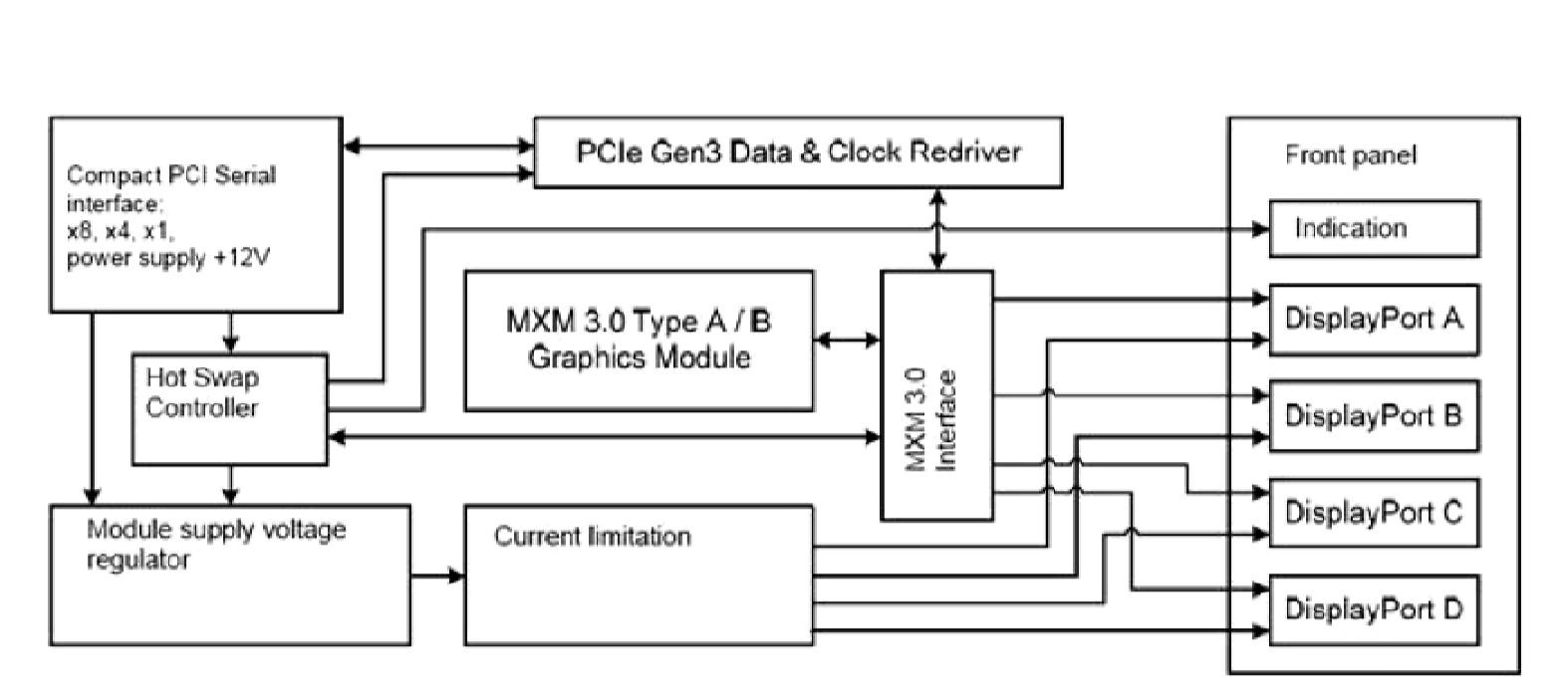

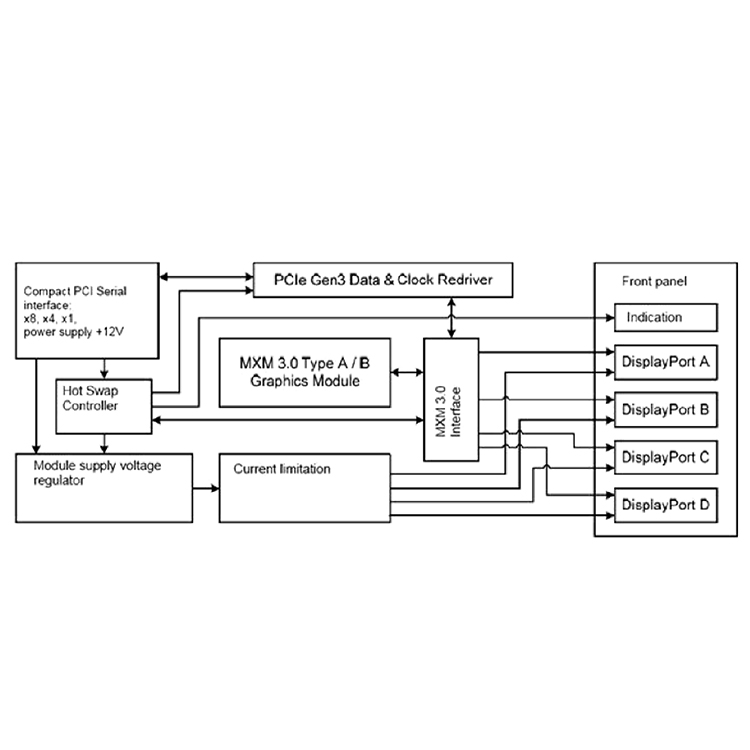

VIM556 3U CompactPCI Graphics Controller Module is designed for using as part of the 3U CompactPCI Serial embedded

computing systems and is intended for output of graphic information to the display via DisplayPort interface. VIM56 contains

NVIDIA Quadro K2100M graphics card of MXM 3.0 standard with support of CUDA parallel computing architecture. Using

VIM556 module, computing system is able to carry out high-performance multi-threaded computations and output

high-resolution graphic information to several displays (up to 4) simultaneously using DisplayPort interface. There are

several VIM556 versions, both equipped with the graphics card, and implemented with conduction cooling.

NVIDIA Quadro K2100M

Graphics Controller Module: 665 MHz, 576 CUDA cores

• RAM: 2 GB GDDR5, 128 bit, 48 GB/s

Graphics: 2×3840×2160 @ 60 Hz

Image processing functions: FXAA /TXAA anti-aliasing, 16К rendering, MPEG-2 HD / WMV HD, H.264, AES128 CTR / CBC / ECB encryption

API: DirectX 11.1, OpenGL 4.3, OpenCL, CUDA C/C++, DirectCompute 5.0, Java, Python, Fortran

CompactPCI Serial

Width of the PCIe bus: x8

Support of bandwidth to GEN2 (5 Gb/s)

ReDrivers of data signals and clock frequency

Module dimensions: 3U/4HP or 3U/5HP (for the version with conduction cooling)

MXM 3.0

Support of MXM 3.0 graphics cards, “Type A” size (82×75 mm) and “Type B” (82×105 mm)

Usage of 4-х DisplayPort interfaces: A, B, C, D

DisplayPort

4x DisplayPort interfaces on the front panel


• Support of DP 1.2 standard

• Support of Dual Mode Display

• ESD protection 8 kV (air) / 4 kV (contact)

• Active independent protection against overcurrent of each port



Power supply

Supply voltage: +12 V ± 10%

Peak current – No more than 6,6 A

Consumed power – No more than 75 W for the version VIM556 with the installed NVIDIA Quadro K2100M graphics module

Operating temperature range

Commercial version: from 0 to +70°С

Industrial version: from –20 to +70°С

Version with conduction cooling: from –20 to +55°С

Module weight

Commercial and industrial versions, version with conductive cooling – no more than 800 g

Version without graphics card – No more than 150 g

OS compatibility

Windows 7 Professional 32/64 bit

Windows Embedded Standard 7 32/64 bit

Linux Debian 7.0 32 bit

Astra Linux 64 bit

Compatibility with PICMG/VITA standards

PICMG CPCI-S 1.0 D0.70

MTBF

No less than 250 000 hours



Operating Condition:

parameter

Value

Operating temperature of the environment

Low temperature, °C

0

for commercial versions

High temperature, °C

+70

Operating temperature of the environment

Low temperature, °C

-20

for industrial versions

High temperature, °C

+70

Operating temperature of the environment

Low temperature, °C

-20

for versions with conduction cooling

High temperature, °C

+55

Environment temperature during

Low temperature, °C

-50

transportation and storage

High temperature, °C

+85

Relative humidity for commercial
and industrial versions

Within the whole temperature range

Up to 80%, without condensation.

Relative humidity for commercial
and industrial versions with \COATED suffix

At the temperatures up to + 55° C

Up to 93%

Relative humidity for versions with conduction
cooling with \COATED suffix

At the temperatures up to + 35° C

Up to 98%

Sinusoidal vibration

Range of frequencies (Hz)

10...500

Acceleration, g

5

Single shocks

Peak acceleration, g

100

Multiple shocks

Peak acceleration, g

50

Number of shocks

1000


Versions


1 Graphics card: NVIDIA Quadro K2100M, Size: 4HP, Cooling: Air cooling, Temperature range, °C: from 0 to +70

2 Graphics card: NVIDIA Quadro K2100M, Size: 4HP, Cooling: Air cooling, Temperature range, °C: from -20 to +70

3 Graphics card: NVIDIA Quadro K2100M, Size: 5HP, Cooling: Conduction cooling, Temperature range, °C: from -20 to +55



Options

\Coated Conformal coating


Delivery checklist

CPC556 delivery checklist contains:

1.VIM556 3U CompactPCI Graphics Controller Module
