Fastwel NIM550 3U CPCI Serial Interface Module

  • Type: original Fastwel
  • Brand: Fastwel
  • Product description: Fastwel NIM550 is a network Ethernet-controller with two independent 10 GbE interfaces, implemented as SFP+ ports and routed to the front panel.
  • INQUIRY

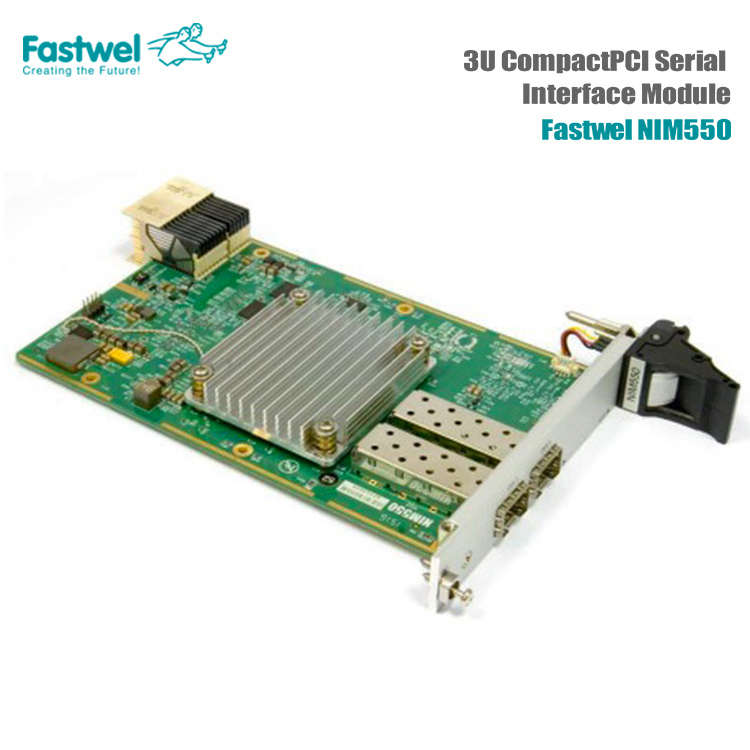

Fastwel NIM550 3U CompactPCI Serial Interface Module


  • Form-factor: CPCI-S.0 3U/4HP with forced air cooling
  • System bus: PCI-E x8/x4 Gen2 (up to 5 GT/s)
  • Power supply: 12V ±10%
  • Power consumption – no more than 18.4 W
  • Operating temperature range: Commercial version:
  • from 0 to +70°C, industrial version: from –40 to +85°C
  • Software compatibility: Astra Linux Special Edition 1.4 (64 bit),
  • Linux Debian 8 (64 bit)
  • MTBF: no less than 300 000 h

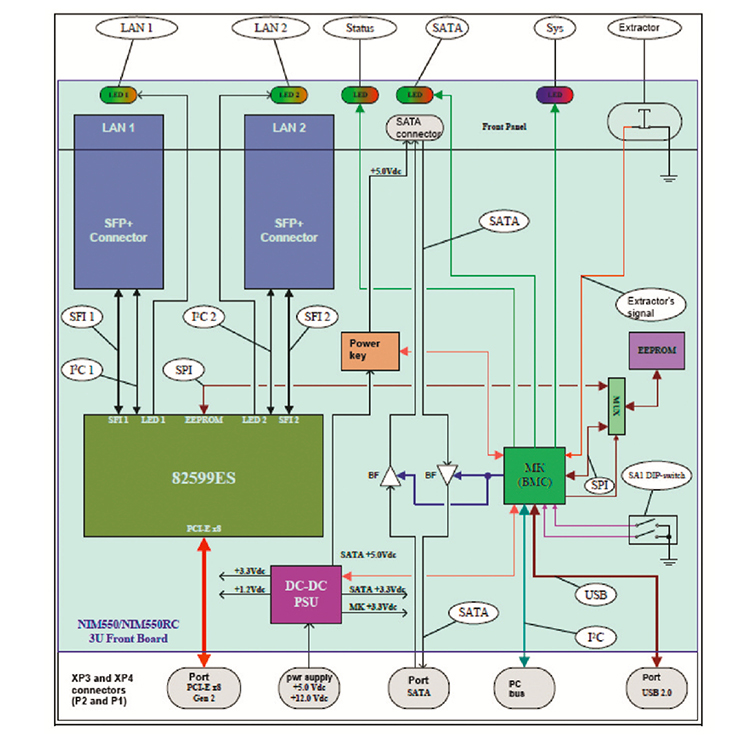

NIM550 is a network Ethernet-controller with two independent 10 GbE interfaces, implemented as SFP+ ports and routed to

the front panel.
The Module is designed for the use in embedded systems with CANs and RS485/422 interfaces.



Form-factor

CPCI-S.0 3U/4HP with forced air cooling

System Bus

PCI-E x8/x4 Gen2 (up to 5 GT/s)

Ethernet 10 GB ports

Two SFP+ channels with support of optical cable connections

Support of 1 GbE (Gigabit Ethernet IEEE802.3z и Fiber Channel) and 10 GbE (IEEE 802.3ae10GBASESR/10GBASE-SW) modes

LED indication

of SFP+ network ports operating modes

of S5 (Soft Off) state by software system shutdown

Microcontroller

Module’s on-delay in accordance with the slot geographical address

Managing power supply sources of the network controller and their states

Output of diagnostics information upon user’s request via a virtual COM-port (USB 2.0) and control of LEDs on the front panel

Function of updating EEPROM network controller firmware via USB 2.0 bus

Support of I2C System Management Bus (I2C bus, routed to the backplane)

Power supply and power consumption

Power supply: 12V ±10%

Maximum current: 1.7A

Power consumption – no more than 18.4 W



Operating temperature range

Commercial version: from 0 to +70°C

Industrial version: from –40 to +85°C

Weight

No more than: 210 g

Software compatibility

Astra Linux Special Edition 1.4 (64 bit)

Linux Debian 8 (64 bit)

MTBF

No less than: 300 000 h

Resistance to mechanical stress

Sinusoidal vibrations for frequencies from 10 to 150 Hz, with acceleration no more than 2g

Single shocks with a duration of 11 ms, with peak acceleration of no more than 50g

Multiple shocks with duration of 6 ms, with peak acceleration of no more than 25 g, number of shocks: 1000

Supported standards

PICMG® CPCI-S.0 R2.0, June 12, 2015, CompactPCI® Serial Specification

PCI Express® Base Specification Revision 3.0, November 10, 2010

SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module SFP+, Revision 4.1, 6th of July 2009

INF-8074i Specification for SFP (Small Form factor Pluggable) Transceiver, Rev 1.0, May 12, 2001

Universal Serial Bus Specification, Revision 2.0, April 27, 2000

Configurations

01   Commercial version: operating temperature range: from 0 to + 70 °С

02   Industrial version: operating temperature range: from -40 to + 85 °С

Options

Coated Conformal coating


Delivery Checklist:

KIC552 delivery checklist contains:

1. KIC552 Interface Module

2. Packaging
