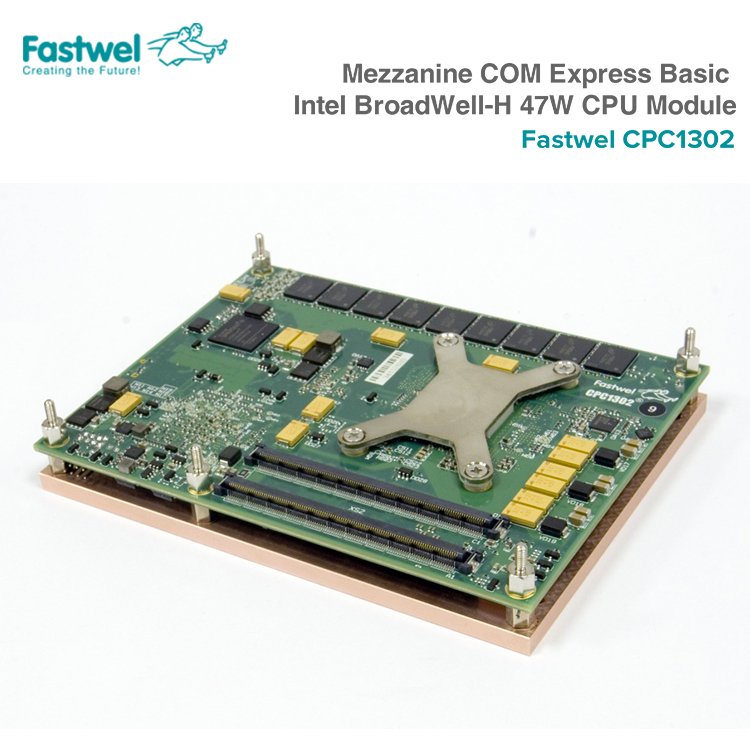

Fastwel CPC1302 Mezzanine COM Express Basic Intel BroadWell-H 47W CPU Module
• 64-x bit Intel BroadWell-H 47W 13 nm (37W CTDP)
• 5th Generation Intel® Core™ i7 Processor
or Intel Core i5-4422E 4th Gen 25W 22nm (Haswell Refresh)
• PCH Intel QM87
• Switching output voltages/currents 60 V/ 500 mA
(by differential load connection)
• LED indication of requests (addressing)
• Maximum switch on/switch off time: 3 ms
• Galvanic isolation of inputs between channels: 500 V
• Galvanic isolation of inputs between a channel
and the “ground”: 1000 V
• Control of output states (before insulation)
• Six separated lines of hardware interrupts
• Software compatibility with: FDOS, FreeDOS

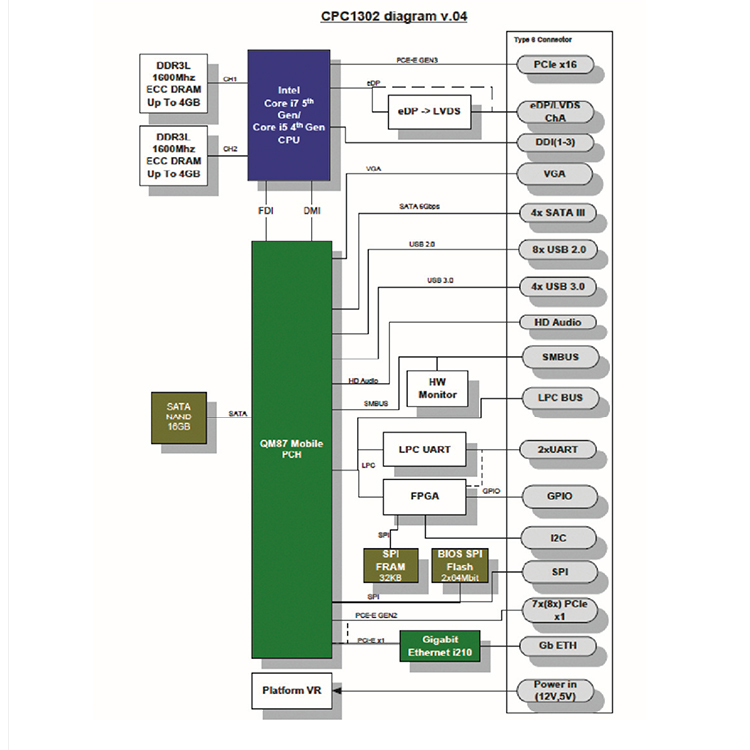

CPC 1302 Mezzanine COM Express Basic CPU Module is compatible with the x86 family. CPC1302 is used mainly as a compute
core (which also has a wide range of I/O interfaces) while building real-time systems, onboard systems, security and
communication tools, production control and high-speed data acquisition equipment as well as for other mission critical
applications, designed for operation in harsh environments.
Connection with carrier-board is carried out via two standard two-row high-density connectors (COM Express Type 6
Connector, SMT, 220 pin).
|
Intel Core i7-5850EQ CPU 2.7 Ghz 5th Gen.37W • 4x cores Intel x64 • 3x graphics kernels • 6 MB cache Intel Core i5-4422E CPU 1.8 Ghz 4th Gen.25W • 2x cores Intel x64 • 2x graphics kernels • 3 MB cache RAM • DDR3L-1600 SDRAM up to 8 GB with ECC support • 64-bit data bus FLASH BIOS • 128 Mb SPI-Flash • Modifiable within the system FRAM 32 KB (SPI port) for storing user data COM-Express Type 6 connector • 1x port PCIe x16 GEN3, 8 GT/s • 7x ports PCIe x1 GEN2, 5 GT/s • 8x ports USB 2.0 • 4x ports USB 3.0 • 4x ports SATA III 6Gbps • Port "LAN 0": Gbit Ethernet Intel 210 • Port SPI (External Boot) • Port "LVDS Channel": LVDS Dual Channel 24 bit 1920x1200@60Hz • 3x ports DDI 4096x2304@60Hz • 1x port VGA CRT 1920x2000@60Hz • Port LPC (Specification Rev. 1.1)
|
• Port SMBus • Port I2C • Port HD Audio • Speaker Out • 4x ports GPIO • 2x ports RS-232 (TTL, 128-byte FIFO, up to 3 Mbps) Real-Time Clock (power supply from the port "RTC battery") SSD 16 GB drive in SATA interface Watchdog timer Monitor of 7 power supply voltages, monitor of PCB temperature Console I/O via serial ports (COM1 / COM2) Software compatibility • Linux 3.8.x • QNX 6.x • Microsoft Windows Embedded Standard 8 • Microsoft Windows Embedded Standard 7 Power supply • +8 V…14 V from COM-Express connector • +5 V STBY from COM-Express connector (as an option) Power consumption • 51W for CPC1302-01-(-02) • 38W for CPC1302-03-(-04) Operating temperature • From 0° C to +70° С for CPC1302-01 (-02) • From –40° C to +85° С for CPC1302-03 (-04) Module weight with heat-spreader • No more than 0,8 kg MTBF • No less than 100 000 hours
|
CPC1302-01 Intel Core i7-5850EQ 2.7 GHz 4C 37W, RAM 8 GB 1600 DDR3L, SSD 16 GB, temperature: 0…+70°C
CPC1302-02 Intel Core i7-5850EQ 2.7 GHz 4C 37W, RAM 8 GB 1600 DDR3L, temperature: 0…+70°C
CPC1302-03 Intel Core i5-4422E 1.8 GHz 2C 25W, RAM 4 GB 1600 DDR3L, SSD 16 GB, temperature: –40…+85°C
CPC1302-04 Intel Core i5-4422E 1.8 GHz 2C 25W, RAM 4 GB 1600 DDR3L, temperature: –40…+85°C
\LNX* Linux 3.8.x
\COATED** Conformal coating
Delivery Checklist:
CPC1302 delivery checklist contains
1. CPC1302 CPU Module
2. Package
Additional accessories and cables:
Heat-removal system (***)
ACS30076 Heatsink
ACS30076-01 Heatsink with fan
(*) Pre-installation of OS is possible for versions equipped with SSD.
(**) Coating is available only for industrial versions.
(***) Module is supplied ready-assembled with the heat-spreader
