Micro PC

  • Fastwel CPC150 MicroPC processor Module
  • Fastwel CPC150 MicroPC processor Module
Fastwel CPC150 MicroPC processor ModuleFastwel CPC150 MicroPC processor Module

Fastwel CPC150 MicroPC processor Module

  • Brand: Fastwel
  • Type: Original Fastwel
  • Product description: Fastwel CPC150 is a fully x86compatible SBC designed for operation in rugged environment. Fastwel distributor
  • INQUIRY

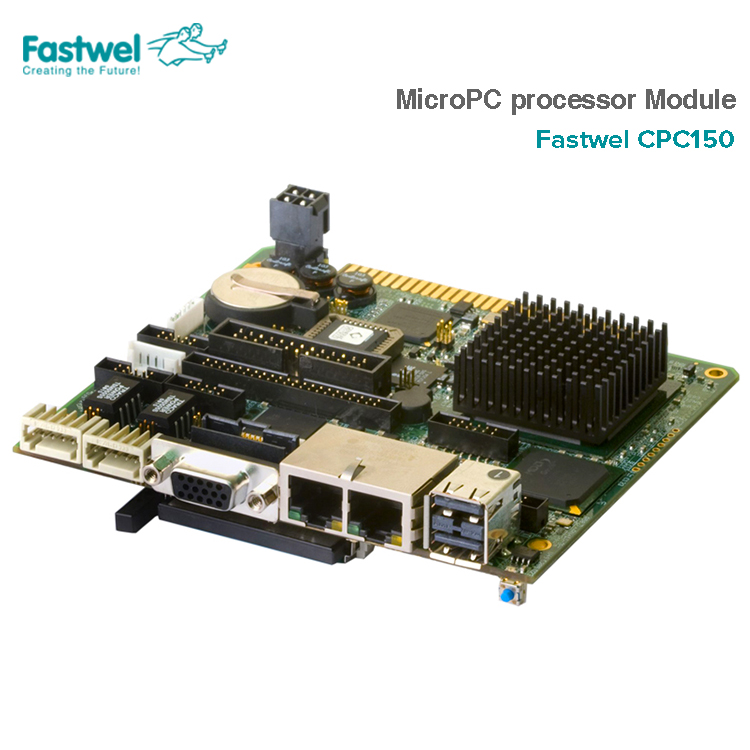

Fastwel CPC150 MicroPC processor Module

•    AMD GEODE LX 800, 500 MHz
•    256 MB DDR SDRAM
•    CF I/II socket, 1 GB with IDE
•    VGA, LCD (TFT or DSTN) up to 1920x1440
•    Two Fast Ethernet ports
•    Two RS232, two RS422/485 isolated
•    Four USB 2.0
•    Discrete input/output: 24 channels
•    Operating temperature range: -40C...+85C

CPC150 is a fully x86compatible SBC designed for operation in rugged environment.

It features wide selection of standard PC interfaces, such as two Fast Ethernet ports, USB ports, audio interface, graphics controller with support of CRT displays and flat panel TFT or DSTN displays.

Besides, it is equipped with four analog video input channels supporting connection of PAL/SECAM/NTSC video cameras with resolution up to 720×576/720×504 at 25/30 frames per second; 24 discrete input/output channels; and FPGA with open programming interface.

Soldered CPU, system memory, and solid state disk enable excellent shock and vibration stability.


System

CPU: AMD GEODE LX 800 (500 MHz: 32 bit x86 kernel, 64 bit coprocessor; 64 bit memory bus; 64 KB level I cache memory; 128 KB level II cache memory; MMX , 3Dnow!TM support

256 MB DDR SDRAM

CMOS+SFRAM for configuration parameters storage

Real time clock

Two watchdog timers:

Programmable watchdog timer; Hardware timer with fixed timeout period.

MTBF: 100000 hours at 30°C, Telcordia Issue 1 method (Method I Case 3)

Flash BIOS

Reserved BIOS, 2x512 KB

In system modification

Graphics

Graphics controller:

2D accelerator;

Up to 60 MB graphics memory shared with system;

LCD (TFT or DSTN) panels support with resolutions up to 1024×768 @60 Hz, 18 bit color when connected directly to TFT interface or to LVDS interface *;

CRT displays support with resolutions up to 1600×1200 @85 Hz and 1920×1440 @75 Hz, 32 bit;

Four video input channels *;

Analog PAL/SECAM/NTSC video cameras support with resolutions up to 720×576/720×504, 25/30 fps.

Storage

Flash disk: 1 GB with IDE interface

HDD port:

Primary channel (Parallel ATA);

Up to two devices connection (when NAND Flash and CompactFlash are disabled in BIOS Setup);

Ultra DMA/100 support

CompactFlash (Type I or II) socket

Software support

FDOS 6.22;

QNX 6.3х, QNX 4.25;

Windows XPе, Windows CE6;

Linux 2.6



Interfaces

LAN: Two Ethernet 10/100 Мbit controllers

USB: USB 2.0 support; Up to 4 devices connection

FPGA with open programming interface and 256 KB SRAM *

AC97 compatible audio controller:

Stereo line in/out;

Microphone input.

Serial ports: СОМ1, COM2: RS232, complete, up to 115.2 Kb/s; COM3: RS422/485, isolated, up to 921 Kb/s; COM4: RS422/485, isolated, up to 921 Kb/s * Console input/output via COM1 and COM2 serial ports

PS/2: keyboard and mouse port

Port for connection of Fastwel I/O modules

Discrete input/output: 24 channels

Optoisolated Reset/interrupt input

Mechanical

Dimensions: 65x40x10 mm (2.56"×1.57"×0.39")

Weight: 0.05 kg

Power

+5V±5%

Environmental conditions

Operating temperature range: –40°C to +85°C

Storage temperature range: –55°C to +90°C

Humidity: 0% to 80%, non condensing

Single/multiple shock stability: up to 100G/50G

Vibration: up to 5G

List of deliverables

CPС150 module;

Cable for connection of 2.5" HDD to 44 contact connector;

IDC10 DB9 adapter cable for console operation (ACS00023);

Removable parts for WAGO terminal blocks (2 items);

CD software and documentation;

Package

Warranty

3 years for parts and labor

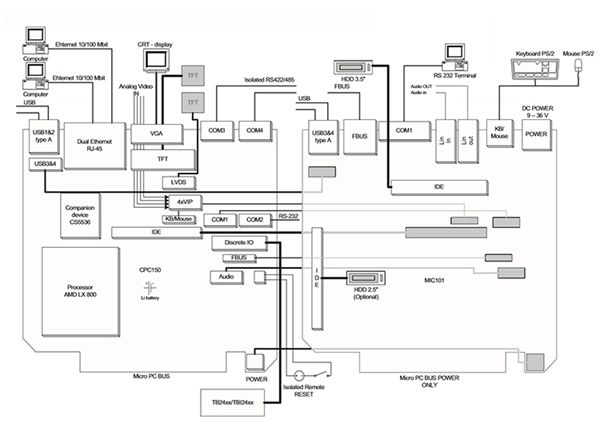

External Connections Using MIC101 Module

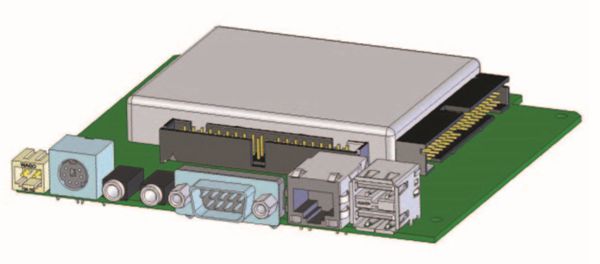

MIC101 is an interface expansion module for CPC150 CPU module with the following standard connectors:

USB: Two Type А connectors (USB3, USB4);

Audio: Two mini Jack 3.5 mm connectors (Line In, Line Out);

FBUS (Fastwel I/O): RJ45 connector;

Serial RS 232 port: DSUB9 connector (COM1);

PS/2: MiniDIN connector for PS/2 keyboard and mouse;

HDD: For connection of an external 3.5" HDD or CDROM drive (IDC40, 2.54 mm pitch)

Connector for IDE HDD 2.5" (MIC10101) or Onboard power supply module (MIC10102)

List of deliverables

MIC101 module;

• Removable parts for WAGO terminal block;

• Mounting hardware (stud spacers, screws, washers);

• Package

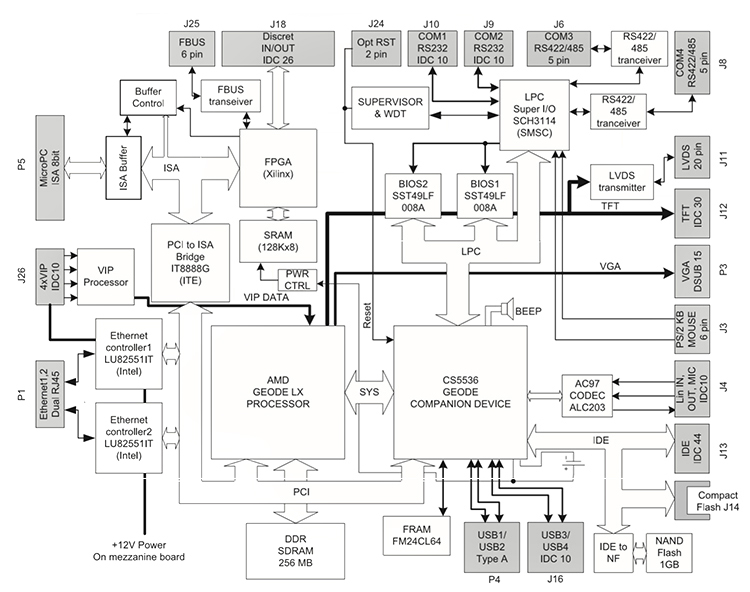

Board Layout

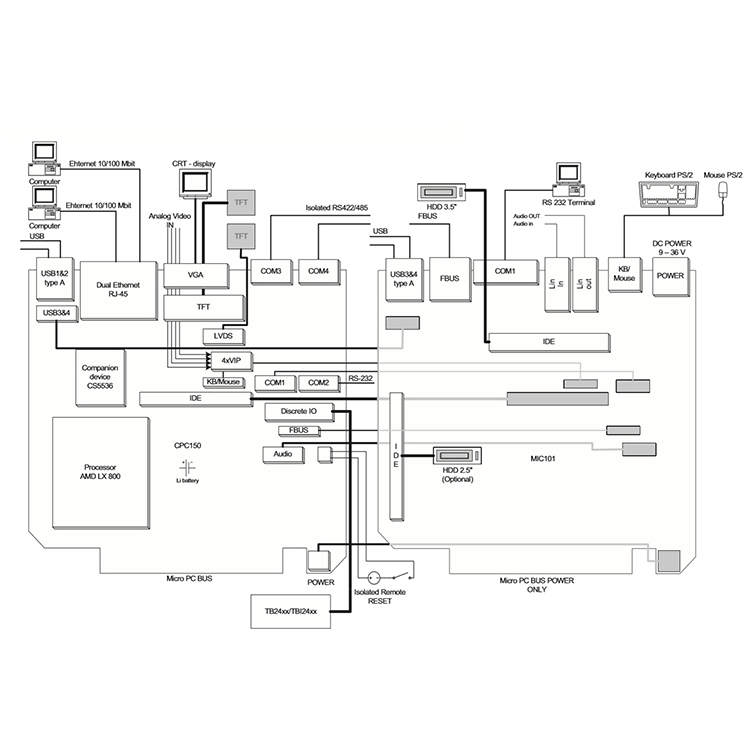

External Connections Using MIC101 Module

MIC101-01: Mounting hardware for 2.5" HDD installation; 2.5" HDD is ordered separately.

MIC101-02: Onboard power supply modules providing power votages for CPC150 CPU module (+5V, 5A), for a MicroPC crate

and video cameras connected to CPC150 (+12V, 1.3A); input voltage: 9…36V (WAGO terminal block)


Device Type

CPC150

AMD GEODE LX 800, 500 MHz,

256 MB DDR SDRAM, 2×Ethernet 10/100

Mb/s, 1×CF, VGA, LCD, 1 GB IDE, 4×USB 2.0, 2×RS232, 2×RS422/485,

24 discrete I/O channels,

–40…+85°C

Configurations

01 4 video I/O channels, FPGA, SRAM, COM4, LVDS

02 no video I/O channels, no FPGA, no SRAM, no COM4, no LVDS

Options

\xxx Choose available options from the table

Coating

\COATED

Protective Coating

Operating System Presetting

\FDOS

Fastwel DOS 6.22

\WCE

Windows CE 6

\XPE

Windows XP Embedded

\LNX

Linux 2.6

\QNX

QNX 6.3x, 4.25

Example

CPC150-01\COATED\WCE

AMD GEODE LX 800, 500 MHz, 256 MB DDR SDRAM, 2xEthernet 10/100 Mb/s, 1xCF, VGA, LCD, 1 GB IDE, 4xUSB 2.0,

2xRS232, 2xRS422/485, 24 discrete I/O channels, 4 video I/O channels, FPGA, SRAM, COM4, LVDS, –40…+85°C

Protective coating

Windows CE 6
