Fastwel CPC152 MicroPC Vortex86DX CPU Module

  • Type: original Fastwel
  • Brand: Fastwel
  • Product description: СРС152 module based on Vortex86DX 600 MHz CPU in MicroPC format is designed for Industrial Control System applications, including "simple" replacement of the Octagon Systems computers withdrawn from p
  • INQUIRY

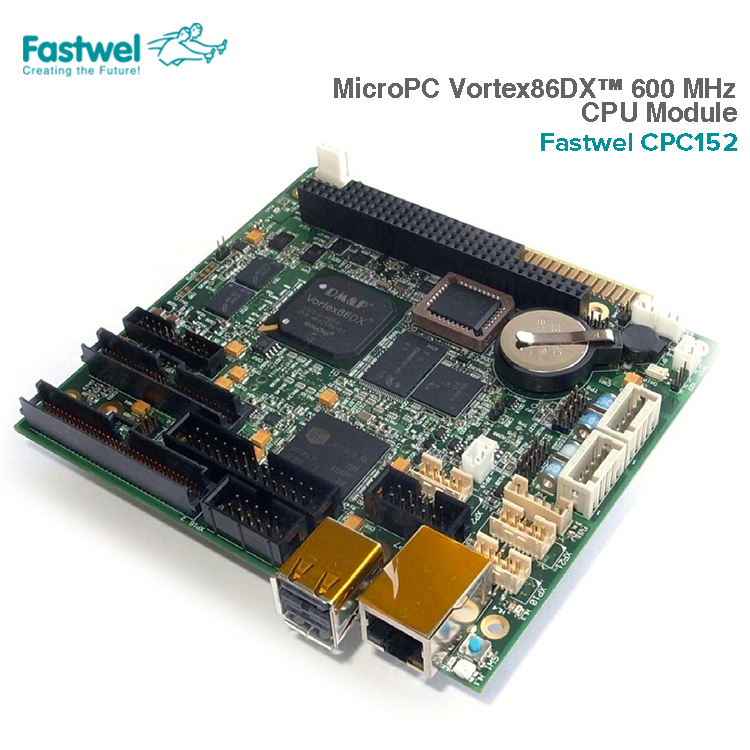

Fastwel CPC152 MicroPC Vortex86DX™ 600 MHz CPU Module



•    256 MB DDR SDRAM•    Vortex86DX™ 600 MHz CPU
•    DDR2 SDRAM 256 MB
•    2 GB NAND Flash (SLC)
•    Serial ports: COM1, COM2 with the rate of exchange up to 750 KB/s via RS-422/485; COM3, COM4: RS-232 (9-wire),

exchange rate up to 250 KB/s via RS-232
•    PS/2 port
•    Operating temperature range: –40°C to + 85°C
•    OS: MS-DOS 6.22, FreeDOS, Linux 2.6, QNX 4.25, QNX 6.5x, Windows CE 5.0, Windows XP Embedded
•    RTC with integrated lithium battery 3 V
•    Shock/vibration resistance: 50g/5g
•    MTBF: 160 000 hours

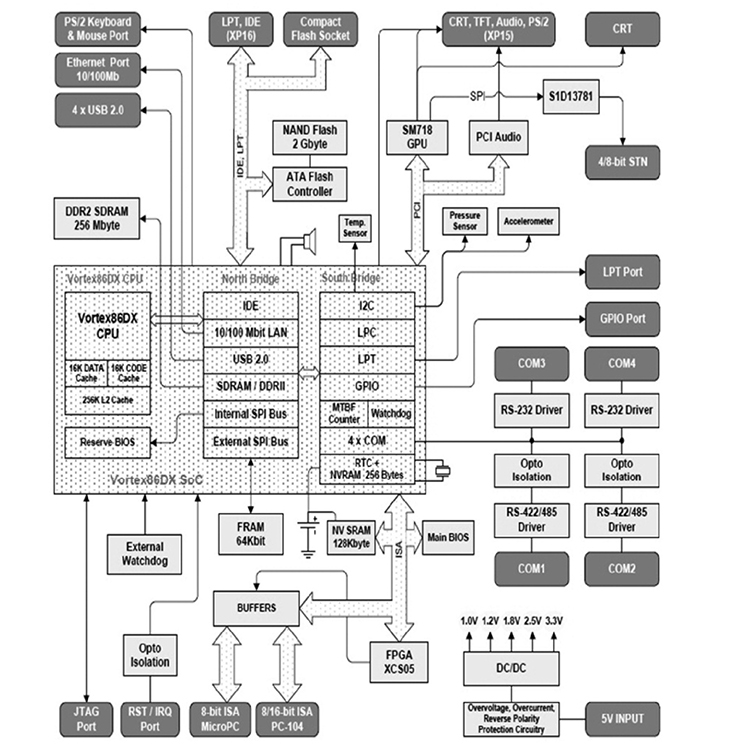

СРС152 module based on Vortex86DX 600 MHz CPU in MicroPC format is designed for Industrial Control System applications,

including "simple" replacement of the Octagon Systems computers withdrawn from production

Processor:

Vortex86DX™ 600 MHz CPU

x86 core, 32 bit

16 bit memory bus

L1 cache (32 KB)

L2 cache (256 KB)

System bus frequency: 333 MHz

RAM

DDR2 SDRAM 256 MB, soldered

FLASH-drive

PATA NAND Flash with integrated system of ECC and wear control

2 GB NAND Flash (SLC)

FLASH BIOS

256 KB, modifiable within the system, with a backup copy

automatic switching to a backup copy in case of an error, while the primary copy is loaded

Integrated nonvolatile memory

256 byte internal memory

8 KB FRAM (SPI)

128 KB SRAM (ISA)

Extension buses

MicroPC (ISA 8-bit, 8/16 MHz)

PC/104 (ISA 8/16-bit, 8/16 MHz)

Connector for Compact Flash

Support of type 1/2 modules

Support of PIO, DMA, UDMA modes

Port for HDD

1x Primary channel;

Connection of up to two devices

Support of Ultra-DMA 100

Connection of 2.5" and 3.5" storage drives via KIB98201 interface board

LAN 10/100 Mb port

Standard RJ45 connector with LEDs

Insulation from system, 500 V

Audio port

Line stereo input/output

Mic. input (mono)

Video subsystem

2D graphics controller

Video memory: 16 MB DDR

Independent connection of 2 displays

Port for the connection of RGB display with resolution up to 1920×1440, 32 bit colors

Port for the connection of LCD (TFT or DSTN) panels with resolution up to 1920×1440, 18 bit colors

Display connection via a separate VGA port (IDC2-10 connector)

Display connection via standard DSUB15F using KIB98102 interface board


USB ports (host)

• Support of USB 1.1, USB 2.0 (HS, FS, LS)

• Connection of up to 4-õ devices

•2 ×USB Type A standard connectors



Serial ports

• COM1, COM2: insulated RS-422/485 with lightning protection circuits

• Exchange rate via RS-422/485 is up to 750 KB/s

• Individual isolation of each system port: 500 V

• Automatic (hardware) control of transmission direction

• COM3, COM4: RS232 (9-wire, full)

• Compatibility with 16Ñ550 / 16Ñ552 model

• Exchange speed via RS-232 is up to 250 KB/s

• ESD protection: 15 KB (IEC1000-4-2)



LPT universal parallel port

Support of SPP, EPP, ECP modes

• Connection via a separate IDC-26 port

Connection of devices via standard DSUB-25 port, using KIB98201 interface board

RTC with integrated lithium battery 3V Remote reset / interruption port

Potential-free contact

Voltage 3...15V, 10...30V

Isolation from system: 500 V

GPIO port

8 I/O lines

Compatibility with 5V level

Maximum output load-carrying capacity: 16 mA

Using the port to control servo drives (pulse-width modulation)

Ability to use the port in the mode of compatibility with 8051 model

PS/2 port

Compatibility with 8042 model

Connection of devices via a separate port

Connection of devices via standard MiniDIN6 using KIB98102 interface board

Digital accelerometer

Measuring acceleration along three axes

Measuring ranges: ± 2g / ± 4g / ± 8g (additional code with the sign)

Resolution: 14 bit + sign

Digital barometer

Pressure measurement from 50 to 115 kPa

Resolution up to 10 bit

Price of the least significant digit value 0.15 kPa

Conversion time: up to 3 ms

Digital temperature sensor

Temperature measurement: from –55 to +125°Ñ

Resolution: 12 bit + sign

Price of the least significant digit value 0.0625°C

Conversion time: up to 1000 ms

PC alarm buzzer

Watchdog timers

2x watchdog timers integrated into CPU, with actuation interval 30.5 µs …512 s

1x integrated into supply supervisor, with actuation interval 1.6 s (used for automatic switching to BIOS backup copy)

Supported OS

Microsoft™ MS-DOS®6.22, FreeDOS;

Linux 2.6

QNX 4.25, QNX 6.5x

Microsoft™ Windows CE 5.0

Microsoft™ Windows XP Embedded

Console ports

COM3 / COM4 and/or VGA / LCD/ Keyboard

Power

Supply voltage: - +5 Â ± 5%

Power is supplied via additional connector

Current consumption: no more than 0.85 À @ 5V (4.25 W), current consumed by external devices is not considered

Mechanical

Shock/Vibration resistance: 50g / 5g

Dimensions: no more than 125.0×123.0×27.0 mm

MTBF: no less than 160 000 hours

Weight: no more than 140 g

Environmental:

Operating temperature range: from –40°Ñ to + 85°Ñ

Humidity: up to 95%, at +25°Ñ without condensation


Configurations

CPC152-01

CPC152 CPU Module (MicroPC), Vortex86DX 600 MHz, 256 MB DDR2 SDRAM, GPU SM718 (16 MB DDR), 2 GB FFD,

NV SRAM 128 KB, Compact Flash socket, 4×USB 2.0, Ethernet 10/100 Mbps, 2×RS-232, 2×RS-422/485 (isolated,

with lightning protection); acceleration, pressure and temperature sensors

Options

Coating

\COATED

Protective Coating

Preinstalled operating system

\LNX

Linux 2.6

\WCE

Windows CE 5.0

\WXPe

Windows XP Embedded


Delivery Checklist:

1. CPC152 CPU Module;

2. ACS00005-01 adapter cable (RS-232 port, IDC-10 / DB9M, length 180 mm);

3. ACS00027-02 adapter cable (VGA port, IDC2-10 / D-SUB 15F, length 180 mm);

4. WAGO 733-105 pluggable terminal block (RS-422/485 port), 2 pcs;

5. Set of jumpers (pitch 2 mm);

6. Packaging.

Additional accessories and cables:

KIB98101 Interface board (Audio, VGA, TFT, PS/2)

KIB98201 Interface board (2.5" HDD, 3.5" HDD, LPT)

ACS00005 Adapter cable IDC-10 / D-SUB 9M (port RS-232, length 1800 mm)

ACS00005-01 Adapter cable IDC-10 / D-SUB 9M (port RS-232, length 180 mm)

ACS00006 Adapter cable IDC-10 / D-SUB 9F (port RS-232, length 1800 mm)

ACS00010 FC44 - 2.5" HDD, connecting ribbon cable

ACS00027-02 Cable IDC2-10 / D-SUB 15F (VGA port, length 180 mm)

ACS00042 Null modem cable 1.8 m

ACS00043 PS/2 adapter cable (PHR-6 / MiniDIN-6F)

ACS00051-01 Adapter cable 2×USB Type A Female (2×USB ports)

ACS00058 set of Li battery 3V with PHR-2 connector (length 40 mm)

ACS00031-02 PHR-6 socket and a set of contacts (PS/2 port)

ACS00031-03 PHR-2 socket and a set of contacts (RESET ports, PC-Speaker, VBAT)

ACS00039 Molex 22-01-2045 socket and a set of contacts (additional power connector)

ACS00064 89947-710LF wire-board connector (VGA, GPIO, USB ports)

ACS00064-01 10073599-020LF cable connector, FCI with a set of contacts (VGA, GPIO, USB ports)

ICC19xxx ISA-8 MicroPC mounting racks

AIC324xx Analog input-output PC104 cards

MIC230xx CompactFlash drive, –40°C…+85°C
