Fastwel CPC108 MicroPC Processor Module

  • Product description: CPC108 is a compact yet fully x86compatible SBC in MicroPC format, designed for fanless operation in harsh environments. Key system components, such as processor, 256 or 512 MB of system memory, and 6
  • INQUIRY

Fastwel CPC108 MicroPC Processor Module

•    AMD Geode LX800 (500 MHz) processor
•    256 MB DDR SDRAM
•    Support for LCD panels (resolution up to 1600×1200)
•    and CRT monitors (resolution up to 1920×1440)
•    Flash disk 64 MB
•    FDD/LPT (EPP, ECP) interfaces
•    USB 1.1, 2.0 support
•    Fast Ethernet controller 10/100 Mb/s
•    Four COM ports (two isolated)
•    Industrial operating temperature range: –40°C to +85°C
•    Protective coating (option)

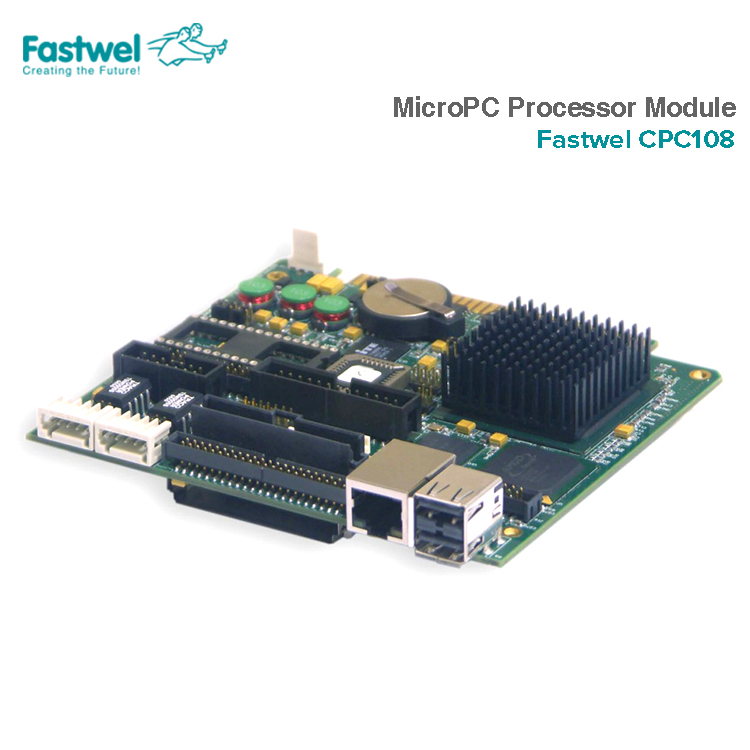

CPC108 is a compact yet fully x86compatible SBC in MicroPC format, designed for fanless operation in harsh environments.

Key system components, such as processor, 256 or 512 MB of system memory, and 64 MB solid-state disk are soldered

on board, providing high shock and vibration stability.

High system reliability and availability are ensured by two independent watchdog timers, reserved BIOS, and optoisolated

remote reset capability. CPC108 offers wide choice of standard PC interfaces onboard, such as Fast Ethernet,

FDD/LPT port, COM and USB ports, PS/2 mouse and keyboard ports, and audio interface. Video controller sharing

up to 60 MB of memory with system supports CRT monitors with resolutions up to 1920×1440, and EL, TFT and

DSTN flat panels with resolutions up to 1600×1200. Supported color depth is 18-bit via TFT interface, and 24-bit via

LVDS interface.

Moreover, the board has two isolated CAN field bus channels available, allowing to control a real time distributed

system. CPC108 can serve either as a master module controlling two CAN network segments, or as a slave device

in data acquisition and processing systems operating in industrial temperature range.

Isolated CAN channels, graphics and audio ports, keyboard and mouse ports as well as isolated reset are available

through separately mounted interface expansion modules adding flexibility in system design.

CPC108 consumes only 5.5 W, does not require forced cooling. Low heat dissipation allows using CPC108 in closed

and hermetically sealed cabinets. It can operate either independently, or together with expansion modules

connected via 16-bit ISA bus.

Compatibility with most widespread operating systems, such as Windows 2000, XP Embedded, CE, QNX 4.25,

6.3x, RTOS32, and Linux makes system development process faster.


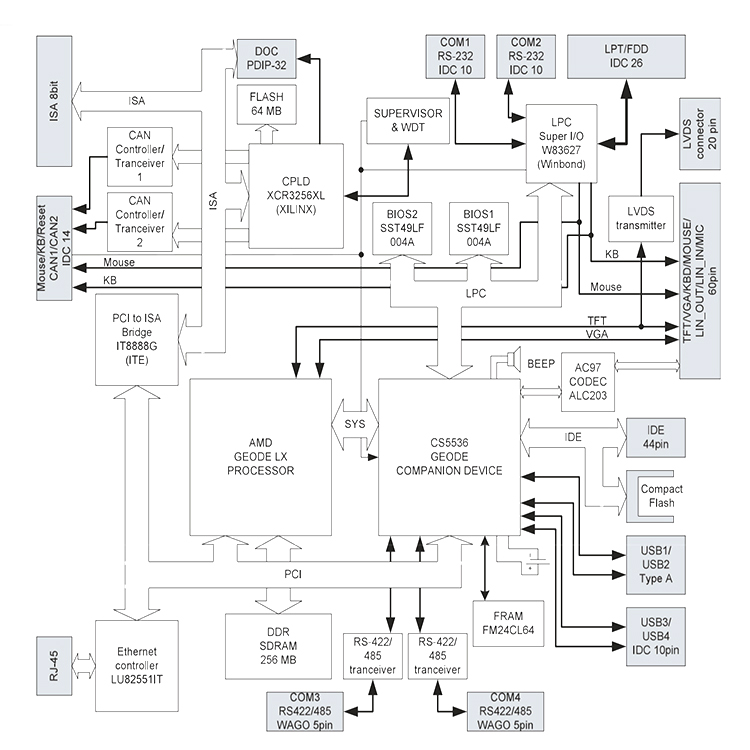

System

AMD Geode LX800 (500 MHz): 32 bit x86 core; 64 bit coprocessor; 64 bit memory bus; 64 KB L1 cache; 128 KB L2 cache; MMX®, 3Dnow!TM support

256 MB DDR SDRAM

Two watchdog timers: one programmable timer and one hardware timer with fixed timeout period

Real time clock

MTBF: 180 000 hours

Flash BIOS

2×512 KB reserved BIOS

In system modification

CMOS+SFRAM for configuration parameters saving

Graphics

2D accelerator

Up to 60 MB display memory (shared with system)

LCD (TFT or DSTN) panels support, resolution 1024×768 (60 Hz); 18 bit color connected directly via TFT interface; 24 bit via LVDS interface

CRT monitors support, 1600×1200 (100 Hz), 1920×1440 (85 Hz, 32 bit)

Storage

Flash disk: 64 MB

EIDE interface: handles up to two devices (Primary channel), UltraDMA/100 support

CompactFlash Type I/II socket

ATA 100 interface

DiskOnChip® socket: SRAM and FRAM (32/28 pins) modules support

Isolated reset

Software Support

Fastwel DOS™ (MS™ DOS compatible)

QNX® 4.25, 6.3х

Windows® XPE

Windows® CE

Linux®



Interfaces

Fast Ethernet port 10/100 Mb/s

USB 1.1, 2.0 support, up to four devices connection; 3 host ports, 1 host/device

Serial ports: COM1, COM2: RS232, complete, up to 115.2 Kb/s COM3, COM4: RS422 / RS485, isolated

Console operation via COM1 or COM2 serial ports

Two CAN ports: available via KIB985 module, isolated

AC'97 compatible audio: stereo Line in/Line out, microphone input

PS/2 keyboard and mouse port

FDD / LPT (EPP, ECP) interfaces share one connector

Mechanical

Dimensions: 125.0×123.0×23.0 mm (4.92"×4.84"×0.90")

Weight: 0.100 kg

Power Supply Options

5 V ±5%, 1.3 A

Environmental conditions

Operating temperature: –40°C to +85°C

Storage temperature: –55°C to +90°C

Warranty

3 years for parts and labor

List of deliverables

CPC108 processor module

ACS00023 – cable for connection to COM1, COM2 ports

ACS00010 – cable for connection of 2.5" HDD

CDM02 – adapter module for connection of 3.5" HDD and CD ROM

KIB981 – interface expansion module for connection of TFT panel or VGA monitor, PS/2 keyboard and mouse, audio devices

ACS00015 – cable for connection of KIB981 module

CD ROM with documentation and service SW



Expansion Capabilities

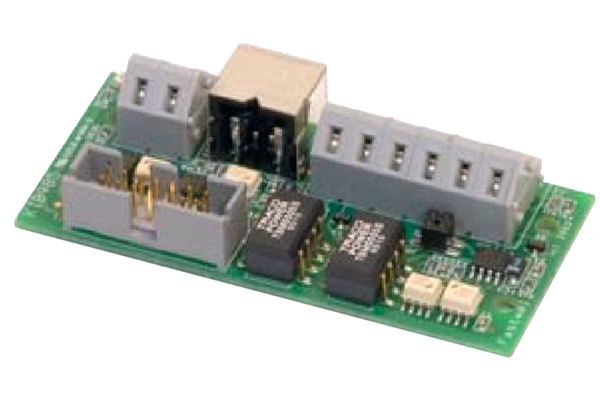

KIB985 module is designed for connecting following devices to CPC108:

• Keyboard and mouse PS/2 (MiniDIN6 socket, requires Ycable for simultaneous connection)

• CAN2.0B network (socket for WAGO 236406 spring clip with opto-isolation up to 1000 V between channels and system, and termination resistor 120 ohm connectivity for CAN1: JP1[1-2]=ON, for CAN2: JP1[3-4]=ON)

• RESET signal with active level from 3.3 V to 12 V (socket for WAGO 236-402 spring clip, isolation up to 1500 V)

The module is equipped with adapters for DINrail mounting and holes for crate mounting (F520x (Fastwel) and 520x (Octagon Systems) series crates).



Device Type

CPС10801 Dual CAN, Ethernet 10/100, LVDS

CPС10802 Dual CAN

CPС10803 Ethernet 10/100



Options


Compact Flash Module

\CF1024

1024 MB Compact Flash, industrial

\CF2G

2GB Compact Flash, industrial

\CF4G

4GB Compact Flash, industrial

\CF8G

8GB Compact Flash, industrial

\CF16G

16GB Compact Flash, industrial

Coating

\COATED

Protective Coating

Operating System Presetting

\FDOS

Fastwel DOS

\QNX

QNX 6.3x, 4.25

\WCE

Windows CE

\WXPE

Windows XP Embedded

\LNX

Linux 2.4.20

Other configurations and options are available upon request


Example

CPC10801 \COATED

MicroPC, AMD Geode LX800 Module, Dual CAN, Ethernet 10/100, LVDS Protective coating
