Micro PC

  • Fastwel CPC109 MicroPC CPU Module
  • Fastwel CPC109 MicroPC CPU Module
Fastwel CPC109 MicroPC CPU ModuleFastwel CPC109 MicroPC CPU Module

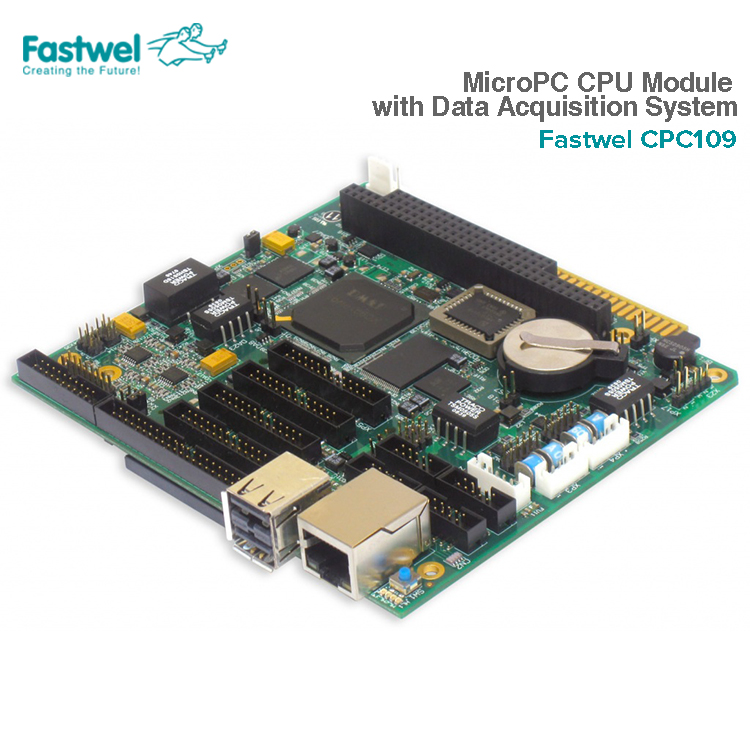

Fastwel CPC109 MicroPC CPU Module

  • Product description: CPC109 MicroPC CPU module is a highly integrated x86 compatible solution for use in realtime control systems, in industrial automation, in data acquisition and processing.
  • INQUIRY

Fastwel CPC109 MicroPC CPU Module with Data Acquisition System

•    Vortex86DX™ 600 MHz
•    256 MB DDR II SDRAM soldered
•    Fast Ethernet port
•    CF I/II socket, 1 GB SLC NAND Flash soldered
•    Four USB 2.0
•    Digital I/O port: 72 CMOS/TTL lines
•    8/2 isolated analog I/O, 12 bit ADC/DAC
•    Two RS-232, two RS-422/485 isolated
•    Operating temperature range: - 40C...+85C

CPC109 MicroPC CPU module is a highly integrated x86 compatible solution for use in realtime control
systems, in industrial automation, in data acquisition and processing.

The module can operate as a standalone or a slave device. Connection of basic input-output devices, such as VGA

monitors, LCD panels, matrix and AT keyboards, printers, FDD drives, and USB devices allows using CPC109 in human

operated systems.

An onboard flash drive, external IDE or USB drives can be used for data storage.

CPC109 module is capable to accomplish most of the input-output tasks for discrete and analog signals.

Besides, possibility to reprogram the onboard FPGA insystem provides extra flexibility in tailoring the module for

different applications.

Along with standard MicroPC bus (8bit ISA) CPC109 is equipped with PC/104 ISA (8/16bit) connector allowing

connection of additional expansion modules. Moreover, the module can operate in RS232, RS422/485, and Ethernet

networks as part of a distributed system.

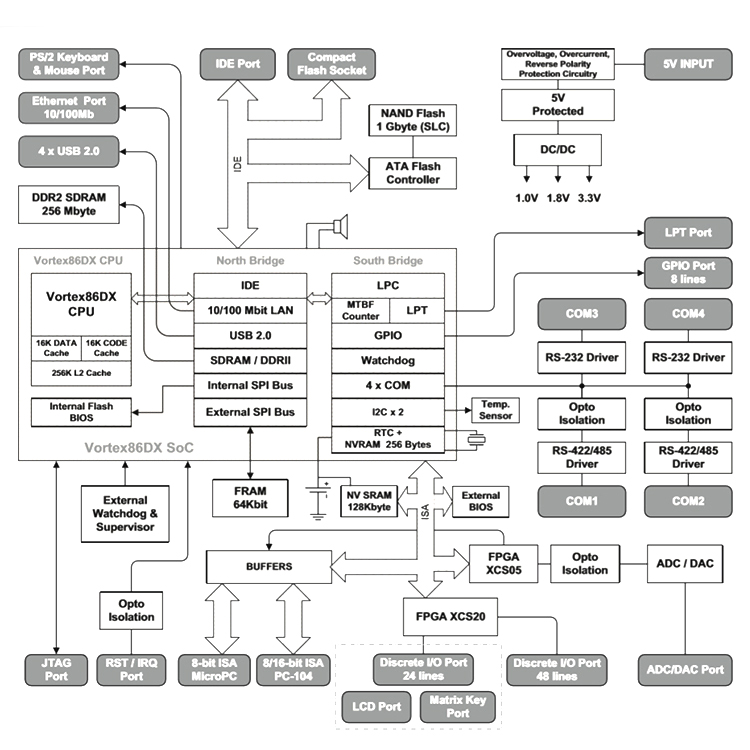

System
•CPU: DM&P Vortex86DX (600MHz): 32 bit x86 kernel,

16 bit memory bus, 32 KB L1 cache, 256 KB L2 cache,

333 MHz system bus speed
•256 MB DDR2 SDRAM (soldered)
•8 KB SPI FRAM
•256 bytes CMOS RAM (battery backed up)
•128 KB SRAM (battery backed up)
•Real time clock with 3V Li battery backup
•Two watchdog timers: Internal: programmable event

and timeout period (30.5 μs to 512 s)

External: programmable event and fixed timeout

period (1.6 s)
•MTBF: minimum 144000 hours (TBA)

Flash BIOS
•256 KB, reserved
•In system modification

Storage
•Flash disk: 1 GB SLC NAND Flash (soldered)
•CompactFlash socket: Type I/ II , PIO, DMA, UDMA modes support

•HDD port: one IDE channel (Primary), up to 2 devices,

Ultra DMA 100 mode support

Software support
•Microsoft™ MS DOS® 6.22
•Fastwel™ FDOS 6.22
•Linux® 2.6
•QNX® 6.4x
•Microsoft™ Windows® CE 5


Interfaces
Ethernet: 10/100 Mbit/s, standard RJ 45 connector

with LED indicators
USB: USB 1.1, USB 2.0 support, up to 4 devices,

two standard Type A USB connectors
Expansion bus: 8 bit ISA (MicroPC), 8/16 MHz 16 bit

ISA (PC/104), 8/16 MHz
Universal discrete I/O port: 72 CMOS/TTL lines

(overvoltage varistor protection, natural 5V level)

8 GPIO lines (5V tolerant) In system programming LCD port: text and graphics models support; backlight connector; contrast adjustment Matrix keyboard port (4×4, 4×5)
8 isolated analog inputs: 12 bit ADC Conversion time: 12.5 μs Overvoltage protection: ±16.5 V
Isolation from system: 500 V

2 isolated analog outputs: 12 bit DAC Output load: 2 KΩ Conversion time: 10 μs Isolation from system: 500 V
Four serial ports: COM1, COM2: RS 422/485; individual isolation from system: 500 V; up to 750 Kbit/s; automatic direction control; lightning protection circuitry.
COM3, COM4: RS 232 (complete); up to 375 Kbit/s; ESD protection: 15 kV (IEC1000 4 2)
Universal parallel port LPT: SPP, EPP, ECP modes support
PS/2 keyboard and mouse port
Temperature sensor (–55...+125°С)
PC buzzer
Reset/Interrupt input Isolation from system: 500V
Console ports: COM3/4 and/or VGA/LCD COM3/4 and/or Keyboard

Mechanical
Dimensions: 125.0 × 123.0 × 25 mm (4.84"×4.77"×0.97")
Weight: 0.1 kg

Power
+5V ±5%
Additional power connector
Overvoltage (up to 28V), overcurrent (3A resettable fuse) and reverse polarity protection
Consumption current: CPC10903: 600 mA CPC10902: 700 mA CPC10901: 800 mA

Environmental conditions
Operating temperature range: –40°C to +85°C
Storage temperature range: –55°C to +95°C
Humidity: 5%…95%, at +25°C
Shock/vibration stability: up to 20G/5G

List of deliverables
CPC109 CPU module
ACS00023 – СОМ port adapter (DB9F – IDC2 10)
Set of mating parts for nonstandard connectors
CD with software and documentation
Package

Warranty
3 years for parts and labor


Configurations

СPC10901 MicroPC CPU module, Vortex86DX 600 MHz, 256 MB DDR2 SDRAM, 1 GB FFD, Ethernet 10/100 Mbps, 4 × USB 2.0,

2 × RS232, 2 × RS422/485 (isolated, lightning protection), 128 KB NV SRAM, PC/104 extension, discrete I/O: 72 lines,

8 GPIO lines, temperature sensor, analog I/O: 8AI, 2AO (isolated).

СPC10902 MicroPC CPU module, Vortex86DX 600 MHz, 256 MB DDR2 SDRAM, 1 GB FFD, Ethernet 10/100 Mbps, 4 × USB 2.0,

2 × RS232, 2 × RS422/485 (isolated, lightning protection), 128 KB NV SRAM, PC/104 extension, discrete I/O: 72 lines,

8 GPIO lines, temperature sensor.

СPC10903 MicroPC CPU module, Vortex86DX 600 MHz, 256 MB DDR2 SDRAM, 1 GB FFD, Ethernet 10/100 Mbps, 4 × USB 2.0,

2 × RS232, 2 × RS422/485 (isolated), 8 GPIO lines.

Options

\xxx Choose available options from the table

Compact Flash Module

\CF1024

1024 MB Compact Flash, industrial

\CF2G

2 GB Compact Flash, industrial

\CF4G

4 GB Compact Flash, industrial

\CF8G

8 GB Compact Flash, industrial

\CF16G

16 GB Compact Flash, industrial

Accessories

ACS00009

FK3, KP3, matrix keyboard cable

ACS00010

FC44 2.5" HDD adapter cable

ACS00023

DB9F IDC10 adapter cable

ACS000xx

IDC226 DB25 (LPT) adapter cables

ACS000xx

IDC210 2× USB Type A female (2 USB ports) adapter cables

AIB92xxx

AIMUX32C1, analog multiplexer

DIB91xxx

TBIxx/xx, terminal boards

DIC1100x

UNIOxx5, MicroPC universal discrete inputoutput modules

DIC11101

UNIO961, MicroPC universal discrete inputoutput costsaving modules

DIC112xx

DI325, MicroPC discrete input modules

DIC113xx

DO325, MicroPC discrete output modules

ICC19xxx

ISA8 MicroPC mounting racks

AIC12xxx

Analog inputoutput MicroPC cards

Coating

\COATED

Protective coating

Operating System Presetting

\DOS

MS DOS 6.22

\FDOS

Fastwel DOS 6.22

\LNX

Linux 2.6

\QNX

QNX 6.4x

\WCE

Windows CE 5

Other configurations and options are available upon request.


Example

CPC109-01\COATED\CF16G\WCE

MicroPC CPU module, Vortex86DX 600 MHz, 256 MB DDR2 SDRAM, 1 GB FFD, Ethernet 10/100 Mbps, 4 × USB 2.0,

2 × RS232, 2 × RS422/485 (isolated, lightning protection), 128 KB NV SRAM, PC/104 extension, discrete I/O: 72 lines,

8 GPIO lines, temperature sensor, analog I/O: 8AI, 2AO (isolated) Protective coating

16 GB Compact Flash

Windows CE 5
