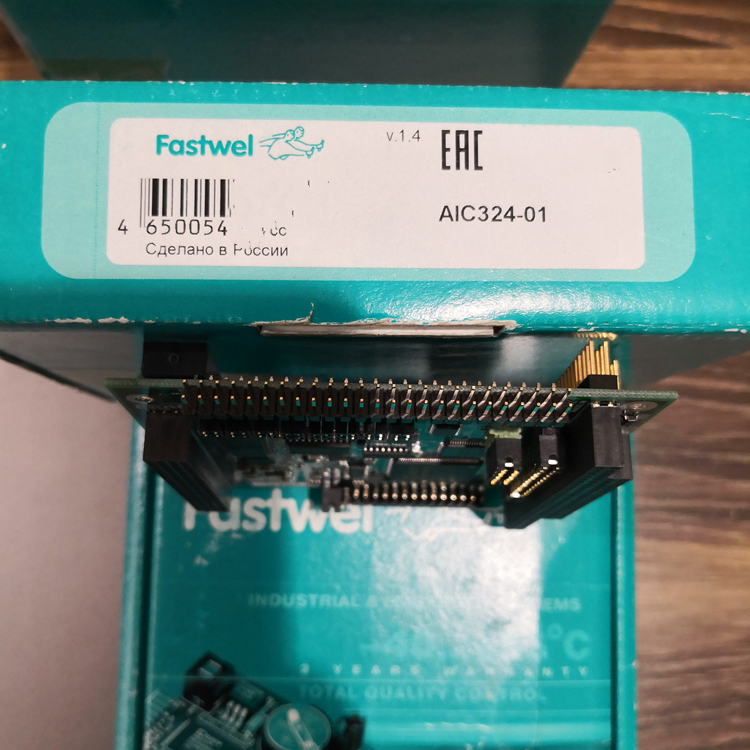

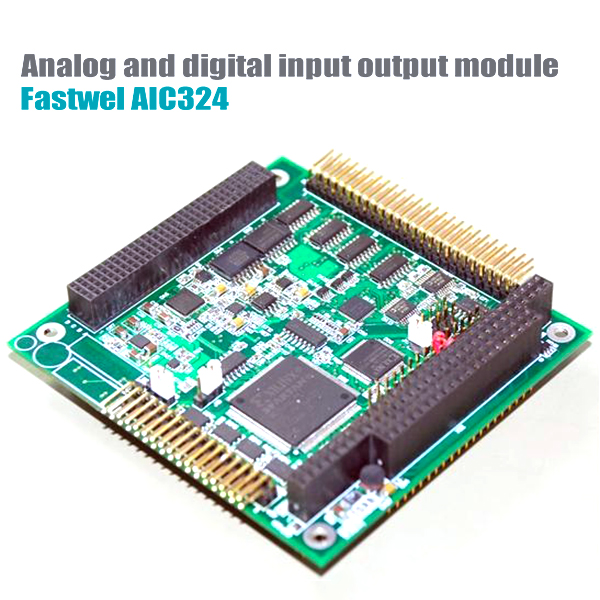

Fastwel AIC324 Analog Digital I/O Module

  • Brand: Fastwel
  • Type: Original Fastwel
  • Model name: AIC324-01
  • Product description: Fastwel AIC324 Analog and digital input output module with auto calibration Embedded Module
  • INQUIRY

Fastwel Fastwel AIC324 Analog and digital input output module Fastwel DIO Module


•    System controller interface – PC/104 (ISA 16 bit)
•    Pass-through PCI bus
•    32 analog inputs; ADC 16 bit; 250 kHz; ±10 V … ±0.625 V,
•    4 analog outputs; DAC 16 bit; 6 s; ±10 V … ±2.5V; programmable calibration of analog circuits;
•    24 discrete input/output channels; 3.3 V or 5 V CMOS; support for 16-bit and 32-bit counters; electrostatic protection of outputs
•    Analog/discrete isolation: 500 V
•    Supported operating systems: Fastwel DOS, Linux, QNX

Analog and digital input output module with auto calibration.

Analog input

32 single wire or 16 differential voltage or current input channels with group galvanic isolation;
Single wire, differential or mixed connection of input signals;
16 bit digital analog converter;
AD converter conversion time 4 μs/channel;
Input voltage range ±10 V, 010 V;
Input current range: 020 mA;
Programmable input signal gains: 1,2,4,8,16;
Input resistance: >1 MΩ (voltage); 249 Ω (current);
Programmable autocalibration of input signal measurement ranges;
Programmable auto scanning of inputs;
FIFO buffer for 2,048 words;
Individual overvoltage protection of channels ±40 V (DC).
Analog output
4 single wire voltage output channels with group galvanic isolation;
16 bit digital analog converter;
DAC establishment time 6 μs;
Programmable selection of output signals conversion range: ±10 V,±5 V,±2.5 V, 010 V, 05 V;
Programmable autocalibration of output signal conversion ranges;
FIFO buffer for 2,048 words;
Operation in signal generator mode;
Individual protection of channels from static electricity (ESD).
Discrete input/output
24 + 6 + 7 TTL/CMOS level compatible input/output channels;
7 galvanically isolated channels;
Discrete inputs/outputs configuration compatibility with 8255 (Mode 0 and mode 1 channel A);
Group pull down or pull up of discrete outputs;
8254 type timer available.
Additional feature
Automatic installation of calibrated ADС and DAC ranges when powered on;
Built in current measurement transistors with "floating" ground;
16/32 bit timer (8254 type), ADC start enabled;
External ADC bit synchronization capability;
Synchronous operation of ADCs on several boards capability;
16 digit timer for forming signals analogous to 8254;
10 shared hardware interrupt lines;
2 shared DMA channel request lines.
System bus
8/16 bit ISA bus;
PC104+ feedthrough connector.
Module power supply
Direct current power supply voltage: +5V ±5%;
Consumed power (without external devices): 450 mA;
Insulation voltage: 1000 V.
Operating conditions
Operating temperatures range: 40°С to +85°С;
Relative humidity: maximum 95% at +25°С;
Storage temperature
• –55°С to +85°С.
MTBF
at least 100,000 hrs.
Moisture proof coating
Dimensions
93 ×96×23 mm.

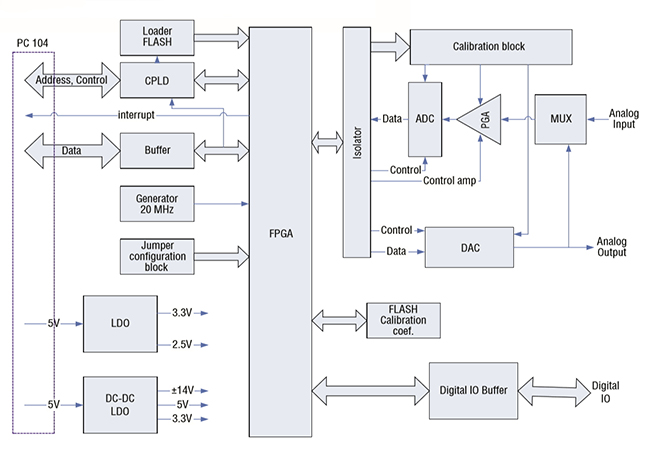

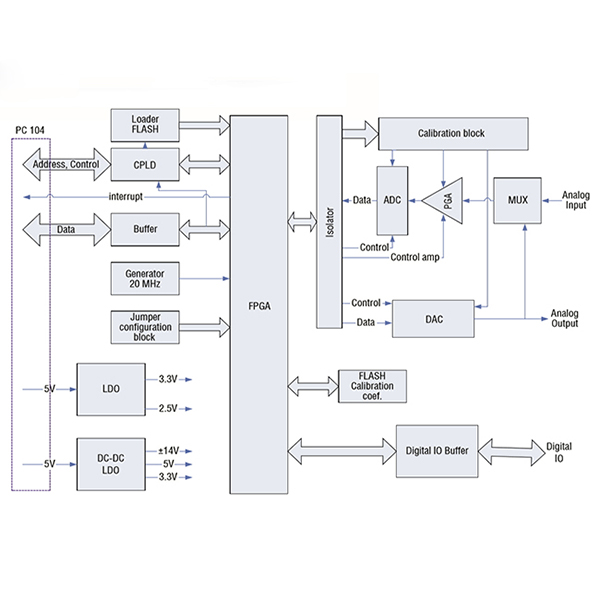

Configuration of Fastwel AIC324

AIC324-01 – AIC324 analog and digital input/output module.

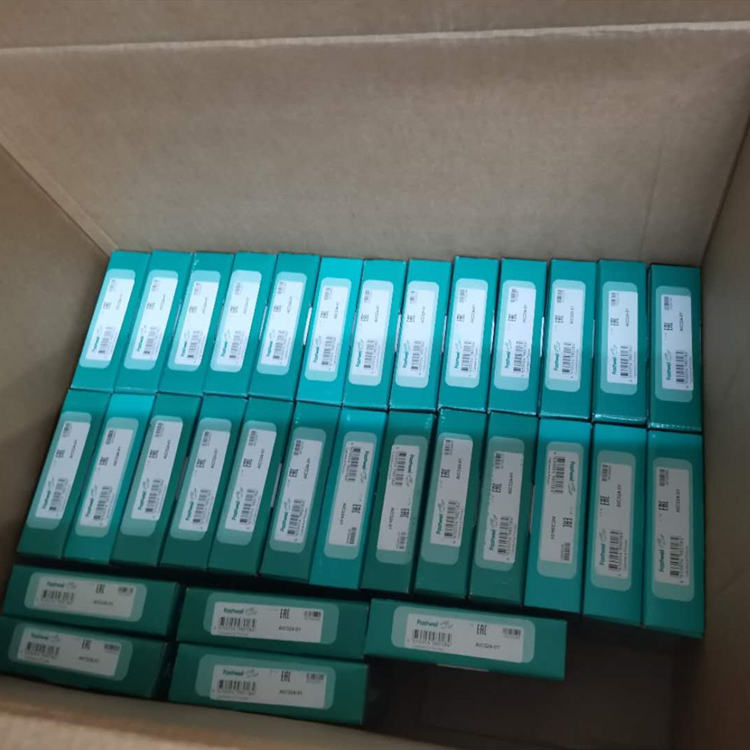

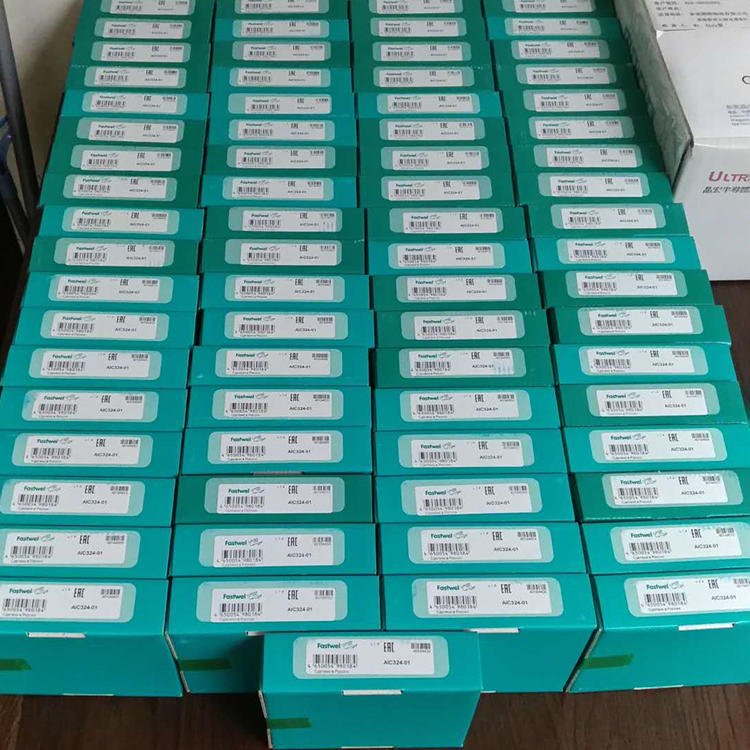

Delivery checklist:

AIC324 module – 1 pc.

• Antistatic package (bag) – 1 pc.

• Consumer package (cardboard box) – 1 pc.
