  • Product description: CPC512 CPU module is a highly integrated 3U CPCI Serial solution for the use in real-time, automation control, high-speed data acquisition and processing systems. The board is based on the Intel Ivy B
  • INQUIRY

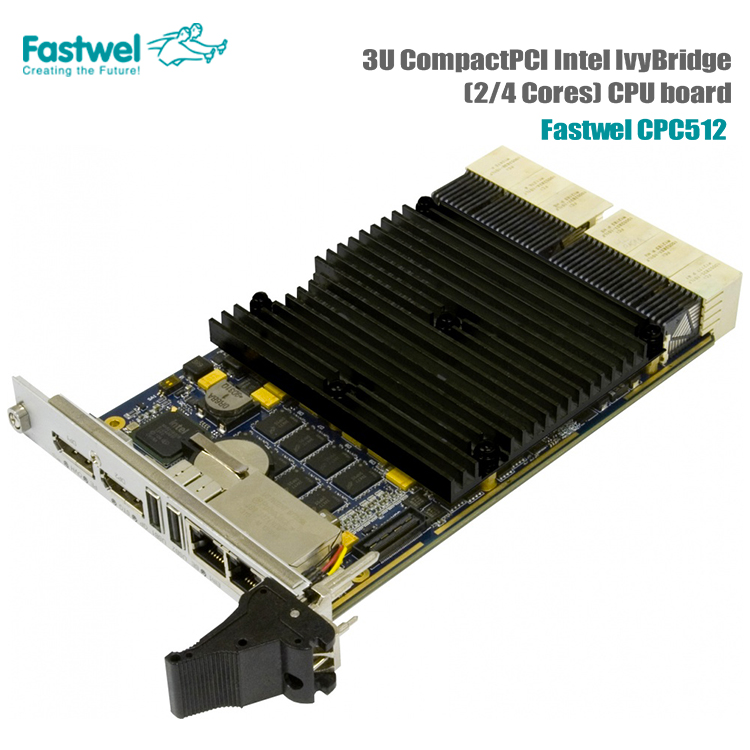

Fastwel CPC512 3U CompactPCI Intel IvyBridge (2/4 Cores) CPU board

CPU: Intel IvyBridge (2/4 Cores)
RAM: DDR3 SDRAM 1333, 1600 MHz or DDR3L SDRAM 1066, 1333 MHz with ECC up to 8GB soldered, 2-channel
FRAM: 32x KB, 1 KB of which represent a closed area for storing Bios Setup settings; implemented on SPI FPGA bus
FLASH BIOS: 2 x 32 Mbit SPI-Flash
Power supply: Supply voltage: +12V, +5V_STBY (optional)
Operating temperature range: -40...+85°C (according to IEC 60068-2-14)
Single/Multiple shock resistance: 100g (according to IEC 60068-2-27) /50g (IEC 60068-2-29)
Supported OS: Windows 7 Embedded, Linux 2.6, QNX 6.5.0

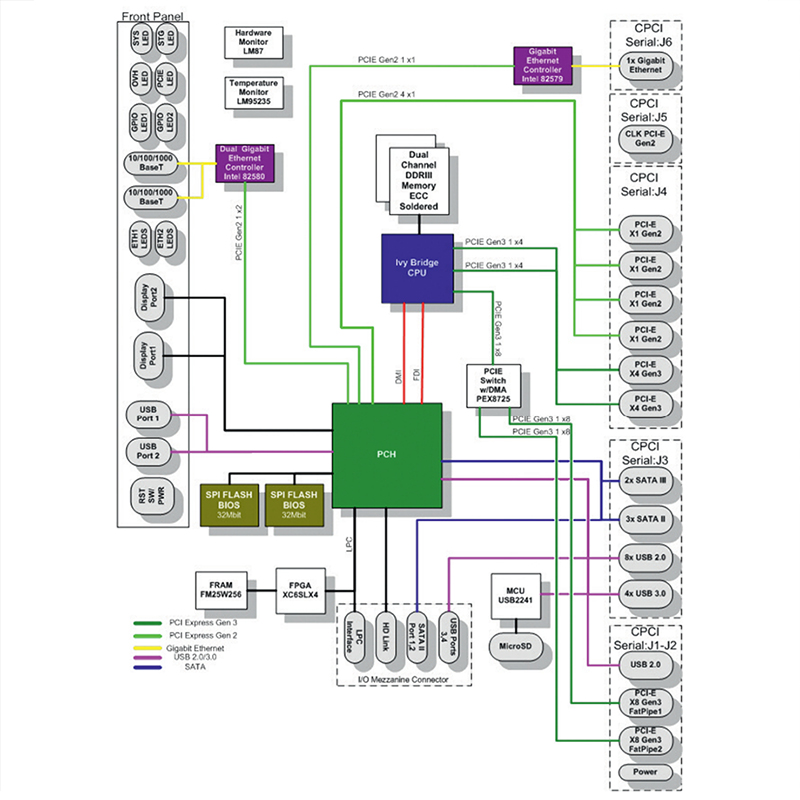

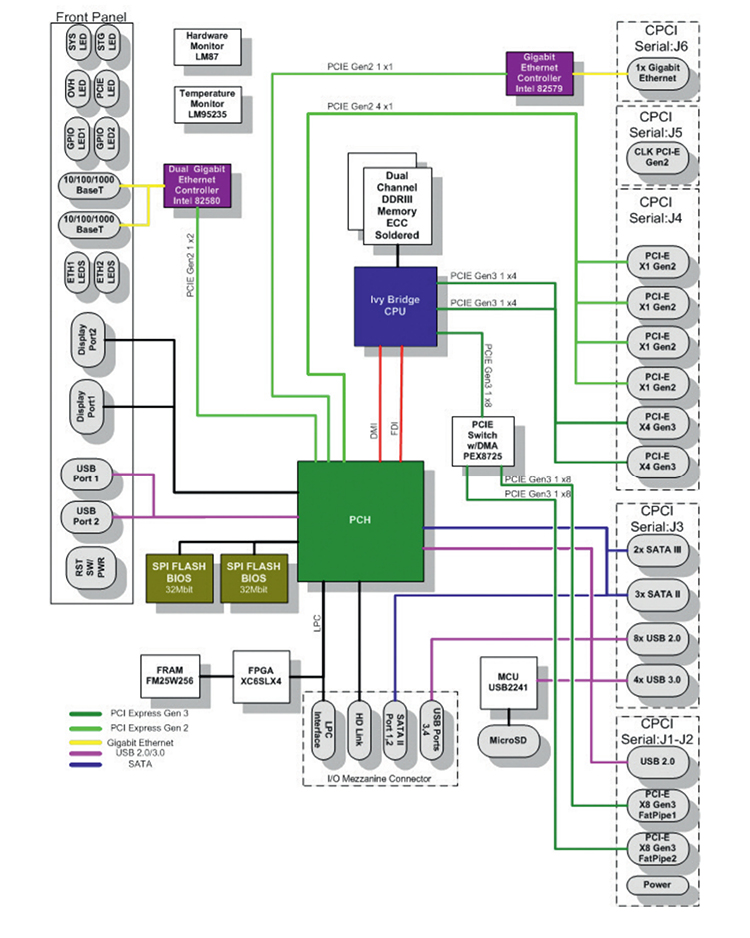

CPC512 CPU module is a highly integrated 3U CPCI Serial solution for the use in real-time, automation control, high-speed data acquisition and processing systems. The board is based on the Intel Ivy Bridge CPU (2- or 4-core CPUs) which has one of the highest performance level in its class. Reliable operation of CPC512 enables its use in mission critical applications.

CPU
•     Intel Core I7 IvyBridge CPU (2/4 Cores)

RAM
•      DDR3 SDRAM 1333, 1600 MHz or DDR3L SDRAM 1066, 1333 MHz with ECC up to 8GB, soldered, 2x channel

Video output
(simultaneous output to 2 displays)
2xDisplayPort connectors (resolution up to 2560x1600@60Hz), routed to the front panel

LPC bus
Routed to mezzanine connector

PCI-E bus
CPU hosts. Support of PCI-E 3.0 (up to 8GT/s)
Routed via PCI-E switch Gen 3.0 to J1 and J2 CPCI Serial connectors with support of 2-x devices x8
Support of Non-Transparent operation mode for FatPipe#1 x8 ports
Support of DMA mode for x8 ports;
Routed to J4 CPCI Serial connector with support of 2-x devices x4
PCH hosts. Support of PCI-E 2.0 (up to 5GT/s)
Routed to J4 CPCI Serial connector with support of 4-x devices x1

SMBUS
Compatibility with Specification 2.0
Speed up to 100 kbps

FLASH BIOS
2x32 Mbit SPI-Flash;

MicroSD
Support of SDHC 2.0 specification
Connection to USB 2.0 interface

SATA III interface
1x interface, constantly routed to mezzanine connector
1x interface, - switchable between J1 CPCI Serial connector and mezzanine connector

SATA II interface
4x interfaces, routed to J3 CPCI Serial connector

2x ports LAN 10/100/1000 Mb on PCI-E x4 Gen2
2x ports, routed to the front panel connectors
Server network adapter



1x port LAN 10/100/1000 Mb, with AMT support
Routed to J6 CPCI Serial connector

USB ports
13xUSB 1.1 (12Mb/sec), USB 2.0 (480Mb/sec)
ports and 4xUSB 3.0 (4.8Gb/sec) ports
2xUSB2.0 ports, routed to the front panel connectors
2xUSB2.0 ports, routed to the mezzanine connector
4xUSB2.0 ports, routed to J3 CPCI Serial connector
1xUSB2.0 port, used for implementation of MicroSD interface
4xUSB3.0 ports, routed to J1 and J2 CPCI Serial connectors

FRAM
32 KB, 1 KB of which -is a closed area for storing Bios Setup settings
Implemented on SPI FPGA bus

Real-time clock
Power supply from CR2032 (rated at: 3.0 V) lithium battery

Audio support
HD Audio interface, routed to mezzanine connector

Watchdog
Internal, suitable for program control

SGPIO interface
Support of LED indication in accordance with the SFF-8485 specification

Hardware monitor
Implemented via SMBUS interface
Monitoring of 3x supply voltages
Monitoring of CPU temperature
Monitoring of PCB temperature

LED-indication:
LED of the board start diagnostics / HOT swap LED
LED of addressing to SATA drives
LED of the module's temperature mode
LED of NT status of port of the PCI Express interface
2x software-controlled LEDs (user LEDs)

OS compatibility
Windows 7 Embedded
Linux 2.6
QNX 6.5.0

Power supply requirements
Supplying voltage: +12V, +5V_STBY (optional)

Operating temperature range
-40...+85°C (according to IEC 60068-2-14)



Type of effect

Name of the parameter

Parameter value

Document

Change of temperatures

Low temperature

-40°C (0*)(0**)

IEC 60068-2-14

High temperature***

+85°C (+70*)(+45**)

Humidity

Relative humidity

Up to 80%, non-condensing

IEC 68-2-14-84

Damp heat (+55°C)(for lacquerware)

Relative humidity

Up to 93%

IEC 68-2-30-82

Sinusoidal vibration

Frequency range (Hz)

O

o

LO

o

IEC 60068-2-6

Acceleration, g

5

Single shocks

Peak acceleration, g

100

IEC 60068-2-27

Multiple shocks

Peak acceleration, g

50

IEC 60068-2-29

Number of shocks

1000


*For commercial temperature range.

**For reduced commercial temperature range.

***In order to avoid overheating, when the upper limit of the temperature range has been reached,

CPU will automatically reduce its frequency down to 200 MHz to decrease heat dissipation.


Extension Capabilities

Number of interfaces routed from the board may be increased due to the connection of MIC584 module. MIC584 contain the following set of interfaces:

2xUSB 2.0

2xSATA

Audio IN/OUT/MIC

4xRS-232

2xRS-485

LPT

PS/2 keyboard+mouse





CPC512 Configuration

CPC512 01 - i72C1.7 - RAM4096 - R1 - C \ Options
CPCI Serial 3U module, height: 4HP, in the regular 3U Eurocard standard, CPU: 1.7 GHz, 17 W, RAM: 4GB,

with a low heat-sink designed for operation in the commercial temperature range CPCI Serial 3U module,

height: 8HP, in the regular 3U Eurocard standard, CPU: 2 core 1.7 GHz 17 W, RAM: 4GB, with a high

heat-sink designed for operation in the industrial temperature range CPCI Serial 3U module, height:

8HP, in the regular 3U Eurocard standard, CPU: 4 cores 2.1 GHz 35 W, RAM: 8GB, with a high heat-sink

designed for operation in the commercial temperature range CPCI Serial 3U module, height: 4HP, in the

regular 3U Eurocard standard, CPU: 4 cores 2.1 GHz 35 W, RAM: 8GB, with a low heat-sink designed

for operation in the reduced commercial temperature range
Versions

CPC512-01 -i72C1.7-RAM4096-R1 -C CPC512-01 -i72C1.7-RAM4096-R2-I

CPC512-01 -i74C2.1 -RAM8192-R2-C CPC512-01 -i74C2.1 -RAM8192-R1-O

CPC512-01 -i72C1.7-RAM4096-RC CPC512-01 -i74C2.1 -RAM8192-RC

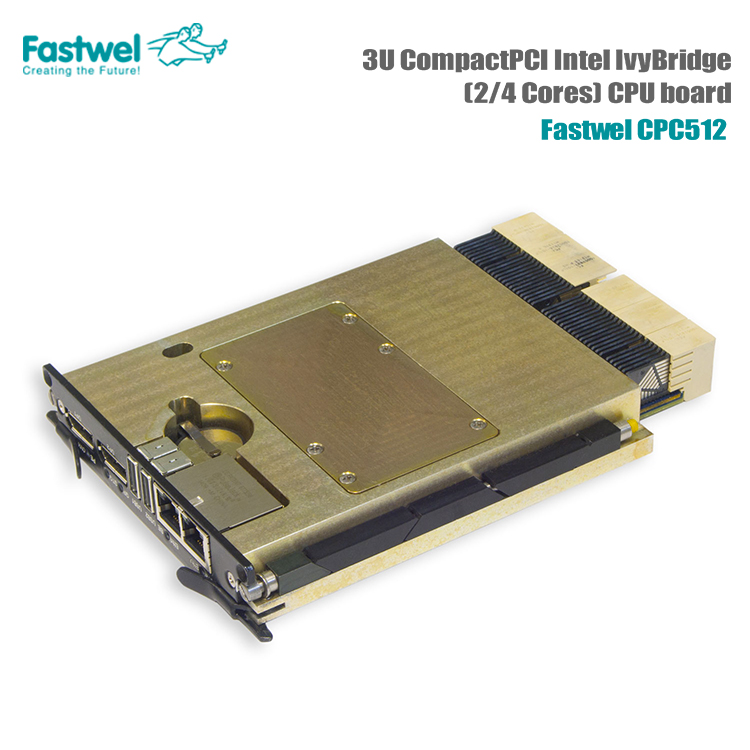

CPCI Serial 3U module, height: 8HP, in the regular 3U Eurocard standard,

CPU: 2 cores 1.7 GHz 17 W, RAM: 4GB, conduction cooling implementation

CPCI Serial 3U module, height: 4HP, in the regular 3U Eurocard standard,

CPU: 4 cores 2.1 GHz 35 W, RAM: 8GB, conduction cooling implementation


Options

Options
\Coated , Conformal coating
\OEM , with a limited package contents
\LNX , Linux 2.6
\Win7e , Windows 7 Embedded

DELIVERY CHECKLIST

CPC512 delivery checklist contains:
1. CPC512 CPU Module

2. Package
Ver. 1.12.2015
Product specifications are subject to change without notice
